Home energy storage Power Bank
Inquire NowHome energy storage Power Bank
Product Description

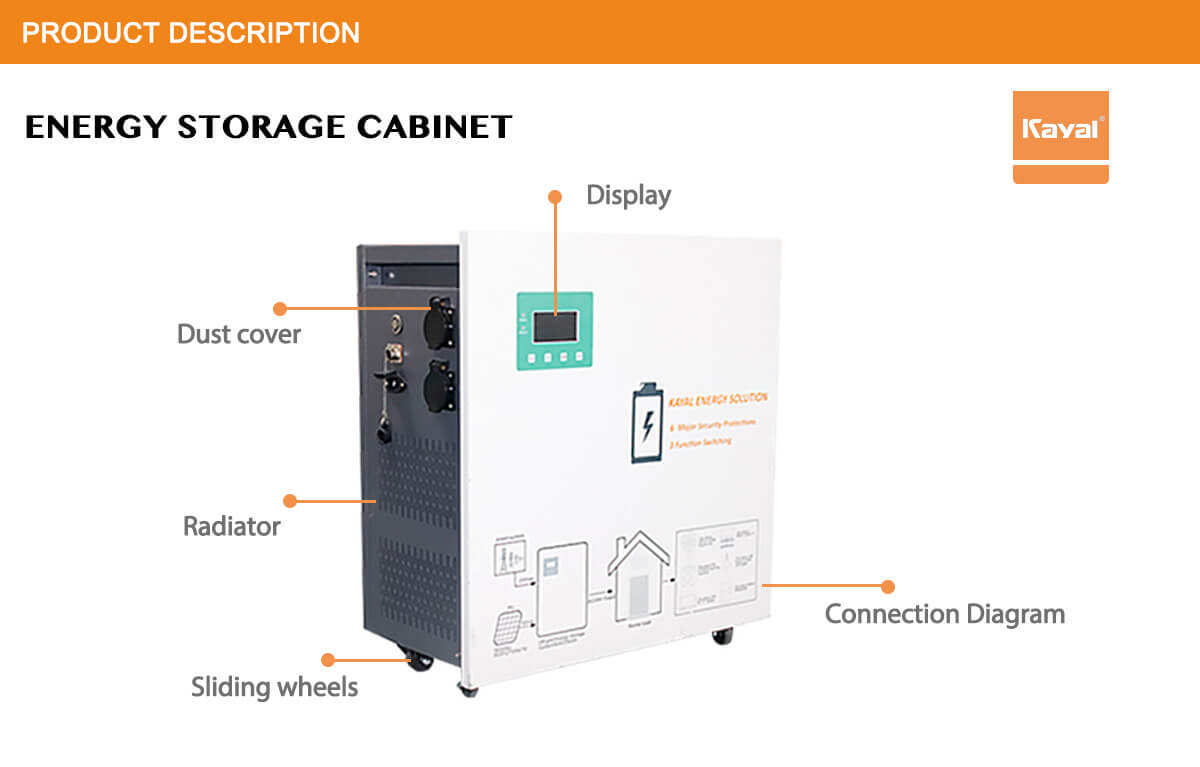

This household energy storage system is designed to couple with photovoltaic generation by utilizing long lifetime environment-friendly lithium iron phosphate battery as electricity carrier with output power up to 5kW as well as a flexible and efficient management system. Therefore, the electricity generated by the solar cells can be utilized under an off-line way, and also its redundant generation can be sold to the power grid to gain profit via an on line mode. The facility is suitable for utilizations in houses with PV panels, small business buildings, office areas and some places where the price gap of peak and valley electricity is considerable.
Product Specification
| Product Name | Household Energy Storage System |
| Model Number | RE5000 |
| Power & Capacity | 5KW/4.8KWh |
| Battery Type | LFP |
| Battery Capacity | 100Ah |
| Battery Rated Voltage | 51.2V |
| Off-grid Output | 230VAC±2%，50Hz（60Hz） |
| AC Maximum Output Current | 22.1A |
| PV Input Voltage Range | DC125V-550V |
| PV Maximum input voltage | 580V |
| Rated Output Power | 5000W |
| Grid-Connected Phase | Single-Phase |
| Grid-Connected Voltage Range | 230Vac 50/60Hz;180V-270Vac |
| Energy Efficiency | ≥92% |
| Working Temperature | -10℃~55℃ |
| Installation Method | Floor Type |
| Safety Certificate | CE、RoHS |
