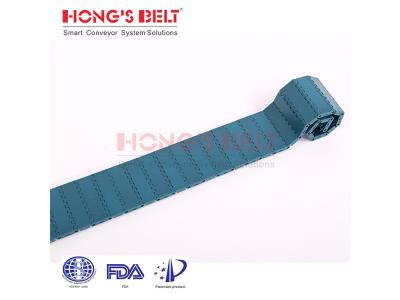

HONGSBELT HS-F1000-85A-GB modular plastic conveyor belt for beverage industry
Inquire NowDescription
The HONGSBELT HS-F1000-85A-GB is a state-of-the-art modular plastic conveyor belt designed specifically for the beverage industry. This high-performance conveyor system offers exceptional capability and flexibility, making it perfect for a wide range of applications including food and non-food industries. Crafted from durable materials such as polypropylene (PP), polyoxymethylene (POM), polyethylene (PE), and polyamide (PA), this conveyor belt ensures a long service life and reliability.
With a pitch of 25.4mm and a thickness of 8.6mm, the HS-F1000-85A-GB provides superior load handling, capable of supporting up to 1.2 tons per square meter. Its design includes no flight or side guard, offering an open area of 0%, which is ideal for transporting various products smoothly. The belt operates efficiently in temperatures ranging from -40°C to 260°C, making it suitable for both freezing and high-temperature processes.
Specifications
| Attribute | Details |
|---|---|
| Type | HS-F1000-85A-GB |
| Pitch | 25.4mm |
| Thickness | 8.6mm |
| Minimum Width | 85mm |
| Open Area | 0% |
| Approved | FDA, EU |
| Rod Diameter | 4.5mm |
| Flight | No |
| Side Guard | No |
| Curve | No |
| Material | PP, POM, PE, PA |
| Color | White, Blue, Gray, Natural, Dark-brown |
| Working Temperature | -40°C to 260°C |
| Sprocket Dimensions | Sprocket Size: 12T-2R, 18T-2R, 20T-2R; Bore Size: square bore & round bore |
| Application |
|
| Advantages | Floating in water, food defrosting, significantly longer lifespan compared to traditional belts, maintenance-free, lower pollution impact, food-approved materials, easy to clean, and high load capacity. |
Additional Information
This modular plastic conveyor belt is designed for various operational needs, ensuring flexibility and efficiency in diverse applications. Its maintenance-free feature and easy cleaning capabilities make it an excellent choice for businesses looking to optimize their production processes.
