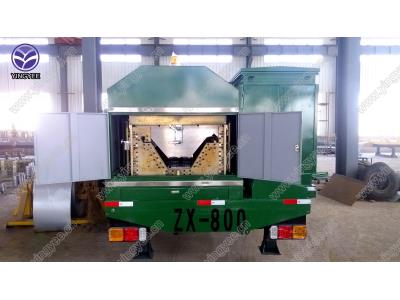

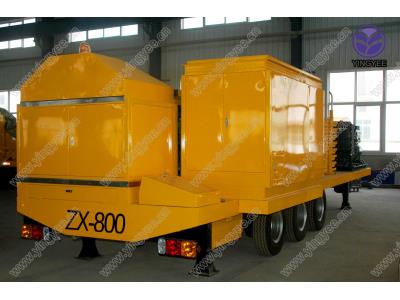

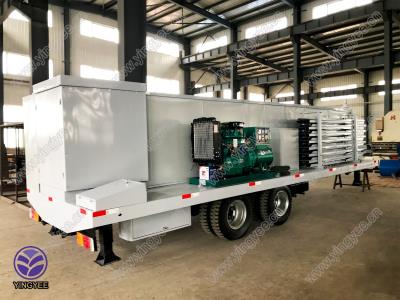

horizontal type big span roll forming machine
Inquire NowDescription
The horizontal type big span roll forming machine is an advanced industrial solution designed for high-efficiency production of structural components. This machine is capable of handling large spans, making it ideal for a variety of applications in construction and manufacturing. With robust construction and a powerful motor, it ensures precise and consistent results, optimizing the roll forming process to meet the demands of modern production lines.
Featuring a powerful combination of forming, bending, and cutting capabilities, this machine operates effectively at various speeds, catering to the diverse requirements of different projects. The innovative design incorporates high-quality materials, ensuring durability and longevity, thereby maximizing productivity.
Specifications
| Attribute | Details |
|---|---|
| Total Weight: | About 13000 KG |
| Main Motor Power: | Forming power: 5.5kw, Bending power: 4.0kw, Cutting power: 4.0kw, Conical power: 1.5kw + 1.5kw |
| Working Speed: | Straight sheet: 15m/min, Arch sheet: 13m/min, Sewing: 10m/min |
| Material of Rollers: | 45# steel, quenched HRC 58-62 |
| Material of Roller Shafts: | 45# steel, adjusted |
| Material of Cutting Blade: | Cr12, 1Mov |
| PLC Type: | Omron |
| Step of Rollers: | 13 steps |
| Feeding Width: | 914mm |
| Effective Width: | 610mm |
| The Depth of the Groove: | 203mm |
| Thickness of the Coil: | 0.6-1.6mm |
| Operating Factor of the Panel: | 66.7% |
| Proper Span: | 7-38m |
Additional Information

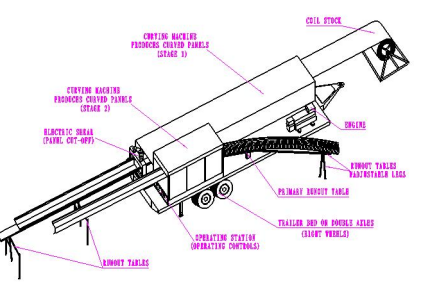

Working follow:
