Description

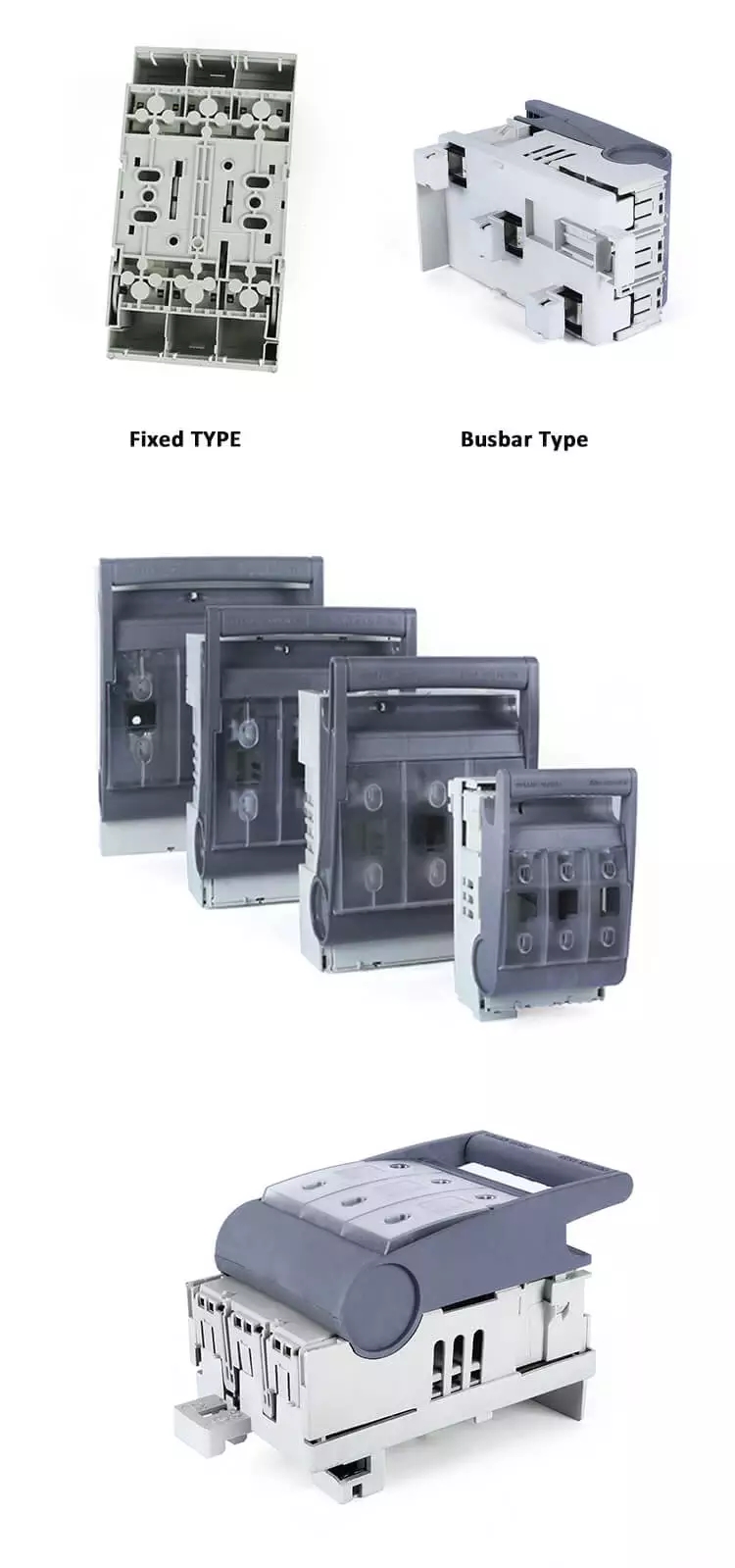

The Hot Sale 400V AC/DC NH Type Horizon NH Fuse Switch Disconnector is designed for superior performance and reliability in various electrical applications. Crafted with precision, this switch disconnector provides essential protection against overloads and short circuits, ensuring the safety and integrity of your electrical systems. With a commitment to customized solutions, GRL caters to your unique requirements, offering various models tailored to your specific needs.
Specifications
| Attribute | DNH7-160 | DNH7-250 | DNH7-400 | DNH7-630 |
|---|---|---|---|---|
| Model | DNH7-160 | DNH7-250 | DNH7-400 | DNH7-630 |
| Fuse | NH00(NT00) | NH1(NT1) | NH2(NT2) | NH3(NT3) |
| Rated operational voltage | 400V | 400V | 400V | 400V |
| Max current | 160A | 250A | 400A | 630A |
| Rated insulation voltage | 1000V | |||
| Rated impulse withstand voltage | 8000V | |||
| Fuse protected short circuit making | 50kA/ms | |||
| Rated making and breaking capacity | AC22B | AC22B | AC22B | AC22B |
| Rated frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Power loss at Im without fuse-link/phase (W) | N/A | |||
Additional Information
GRL is dedicated to providing customized solutions to meet your unique requests.
