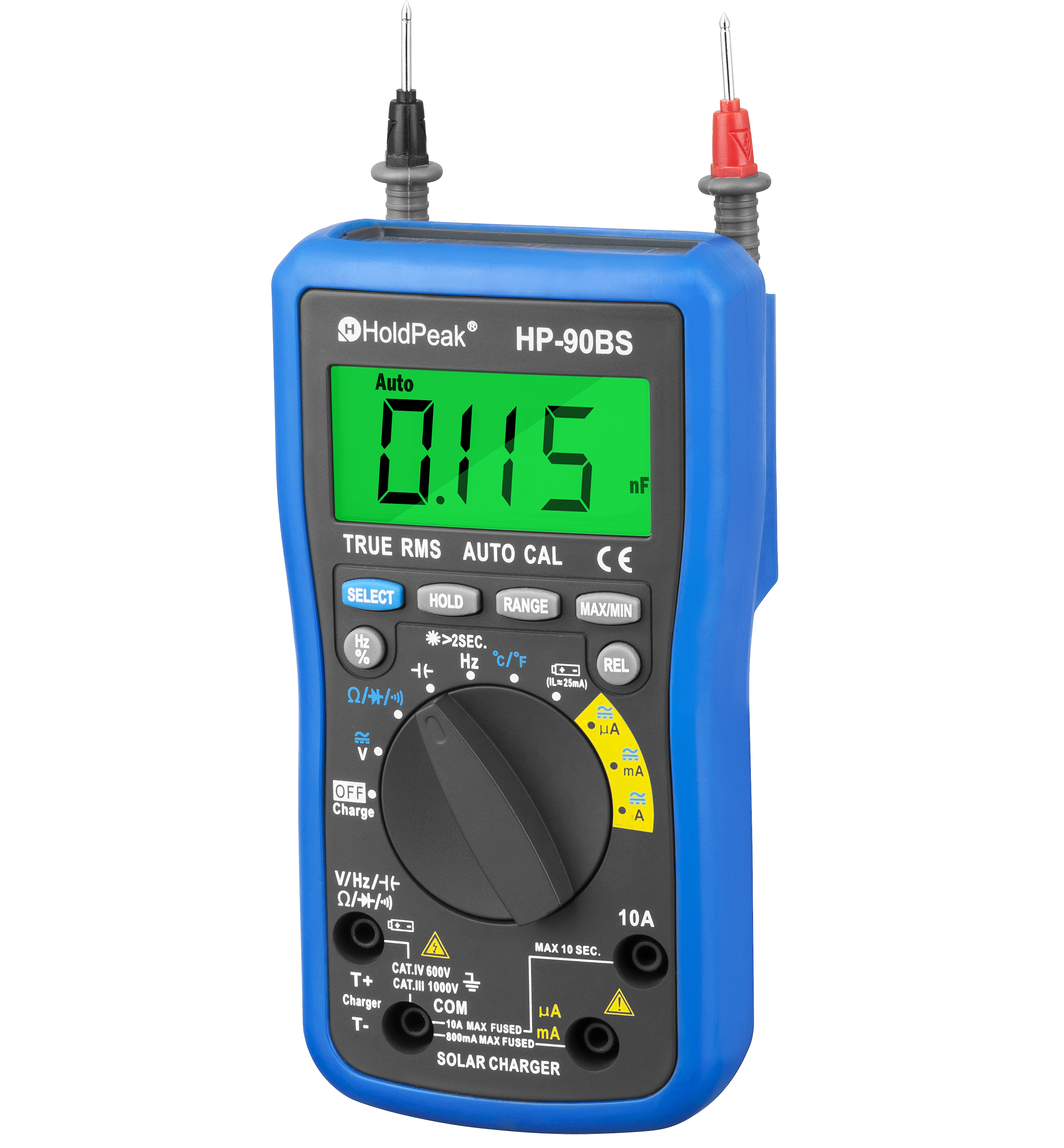

HP-90BS Digital Multimeter TrueRMS AutoRange Diode Conti AC/DC Tester 6000C Solar Charge
Inquire NowDescription
The HP-90BS Digital Multimeter combines precision, portability, and versatility in a sleek design. This TrueRMS multimeter features an easy-to-read 6000-count LCD display, measuring 22mm high for clear visibility. With its advanced circuitry utilizing large-scale IC A/D converters and built-in overload protection, it guarantees reliable performance for both professionals and DIY enthusiasts.
This comprehensive instrument is capable of measuring a variety of electrical parameters, including:
- DC & AC voltage
- DC & AC current
- Resistance
- Capacitance
- Frequency
- Diode voltage drop
- Battery power
- Temperature
- Continuity
Additionally, the HP-90BS supports solar charging and features a rechargeable battery, making it both eco-friendly and efficient.
Specifications
| Attribute | Detail |
|---|---|
| Brand Name | HoldPeak |
| DIY Supplies | Electrical |
| Display Type | Digital Display |
| Operating Temperature | -20 – 1000 °C |
| Dimensions | 167*90*50 mm |
| Model Number | HP-90BS |
| Measuring Resistance Range | 600/6k/60k/600k/6M/60M |
| Measuring Capacitance Range | 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF |
| Operating Mode | Auto |
| AC Voltage | 6V/60V/600V/750V |
| DC Voltage | 600mV/6V/60V/600V/1000V |
| AC Current | 600uA/6000uA/60mA/600mA/6A/10A |
| DC Current | 600uA/6000uA/60mA/600mA/6A/10A |
| Measuring Frequency Range | 9.999Hz – 9.999MHz |
| Duty Cycle | 0.1% – 99.9% |
| Display | 6000 counts |
| Diode Test | Yes |
| Battery Test | 1.5 – 12V |
| Solar Charge | Yes |
| USB Charge | Yes |
| Battery Type | 3.6V * 1 |
| Weight | 320g |
Additional Information
For optimal performance, ensure the multimeter is adequately charged before use. Regularly check the battery status to avoid interruptions during measurements.
