HP series inverter 1KW-18KW Low Frequency High Efficiency Pure Sine Wave Charger
Inquire NowDescription
The HP Series Inverter, with a capacity ranging from 1KW to 18KW, combines advanced technology with high efficiency to deliver a reliable pure sine wave power solution. This inverter is ideal for both home and office appliances, offering flexibility and robust performance. Equipped with features such as Smart Remote Control (RMT), Battery Temperature Sensor (BTS), and Automatic Generator Starting (AGS), the inverter is designed to function efficiently even in harsh environments. Its compatibility with solar panels, thanks to the MPPT function, makes it a sustainable choice for renewable energy systems. The inverter supports both linear and non-linear loads, ensuring versatile applications.
Ease of installation and operation is a hallmark of this inverter, complemented by a powerful charge rate of up to 120Amps. Additionally, it includes advanced functionalities such as a 4-step intelligent battery charging system, battery priority mode, and a typical transfer time of only 8 ms between utility and battery, guaranteeing power continuity.

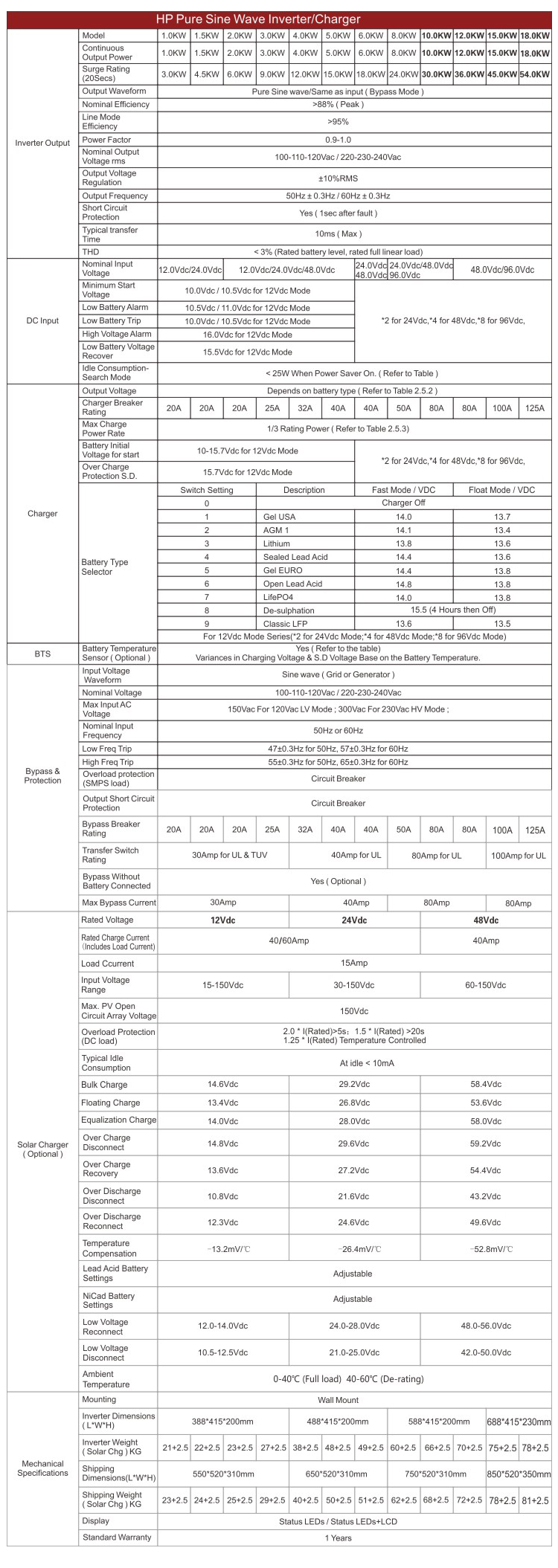

Specifications
| Feature | Details |
|---|---|
| Power Range | 1KW – 18KW |
| Output Type | Pure Sine Wave |
| Charge Rate | Up to 120Amps (Selectable 0%-100%) |
| Typical Transfer Time | 8 ms |
| Battery Recovery Point | 13 Vdc |
| Battery Types Supported | 8 pre-set battery type selector |
| Protection Features | 15s delay before transfer to protect loads with generator use |
Additional Information
- Low DC Voltage supports home and office appliances.
- High efficiency design with “Power Saving Mode” to conserve energy.
- 4-step intelligent battery charging with Power Factor Correction (PFC).
- AC Input Range can be customized from 184-253VAC to 140-270VAC.
- DC Start and Automatic Self-Diagnostic Function for enhanced usability.
- Offers easy installation and operation for users of all technical levels.
