hss twist drill
Inquire NowDescription

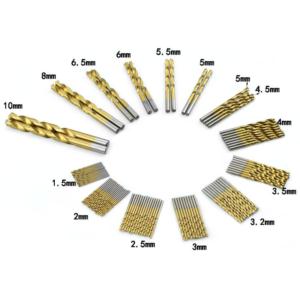

The HSS Twist Drill Bits are expertly crafted tools designed for precision drilling in a variety of materials. Made from high-speed steel (HSS), these drill bits offer exceptional durability and longevity for both professional and DIY projects. With a range of surface finishes including white, black, amber, and TIN coated options, they ensure enhanced performance and reduced friction. The drill bits are available in different sharpening angles (118° and 135°) to suit various drilling applications, making them a versatile choice for any toolkit.
Specifications
| Feature | Details |
|---|---|
| Material | HSS4241, HSS4341, HSS9341, HSS6542 (M2), HSS CO5% (M35), HSS CO8% (M42) |
| Shank Types | Straight Shank, Taper Shank, Three Flats Shank, Hexagonal Shank, 1/2″ 3/8″ Reduced Shank |
| Helix Angle | Type N, Type W, Type H |
| Rotating | Right Hand, Left Hand |
| Flute Type | Normal Parabolic |
| Standards | DIN338, DIN340, DIN1897, DIN1869, DIN345, DIN341 |
| Length Variants | Jobber Length, Taper Length, Screw Machine Length, Aircraft Extension, Taper Shank (ANSI) |
Additional Information
- Surface Finishes: Available in White, Black, Black & White, TIN Coated, Amber, and Black & Gold.
- Sharpening Options: 118° and 135° angles for various applications.
- Manufacturing Process: Options include Roll Forged, Rolled Polished, Fully Ground, and Milled.
