HVAC ventilation system insulated flexible duct
Inquire NowDescription

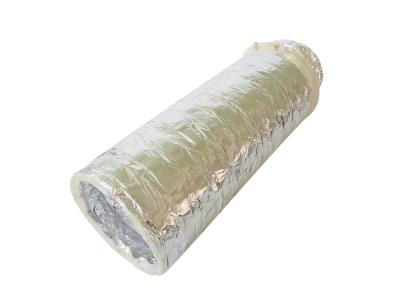

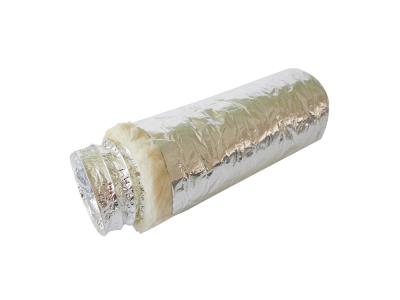

Introducing our HVAC ventilation system insulated flexible duct, designed for optimal airflow and efficiency in various applications. This innovative duct comes in a round style and is easy to install, offering both oval and round connection options. Engineered for safety, it emits no toxic gases even at high temperatures or in case of fire, ensuring peace of mind during use. The duct is highly flexible, allowing it to be bent in any direction, making it ideal for tight spaces.
Built from durable materials, our flexible duct is resistant to decay and mildew, guaranteeing long-lasting performance. It does not corrode aluminum pipes or metal parts, and its self-holding design ensures low wind resistance during operation. The duct is perfect for general exhaust applications including range hoods, laundries, dryer vents, toilets, bathrooms, ventilation, and air conditioning systems.
Specifications
| Attribute | Specification |
|---|---|
| Product Code | XY-601 |
| Construction | Spiral steel wire laminated with aluminum/polyester foil |
| Fiberglass Density | 16kg/m3-32kg/m3 |
| Fiberglass Thickness | 25mm / 30mm |
| Inner Duct Material | Aluminum Duct |
| Diameter | 50mm-650mm (2″-25″) |
| Carbon Steel Wire Diameter | 0.6mm-2.5mm |
| Length | 10m (Max) |
| Fire Resistance | Class A2 (Max) |
| Compress Ratio | 1 : 10 |
| Temperature Range | -30℃/+150℃ |
| Operating Pressure | 3000Pa |
| Maximum Air Velocity | 30m/s |
Additional Information
This flexible duct is perfect for a variety of applications, including:
- Range hoods
- Laundries
- Dryer vents
- Toilets
- Bathrooms with heating
- General ventilation
- Air conditioning systems
