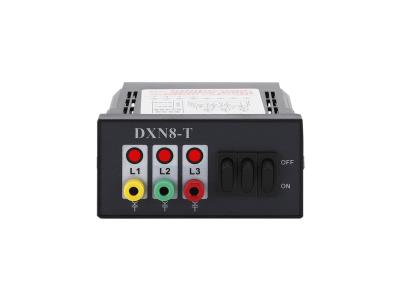

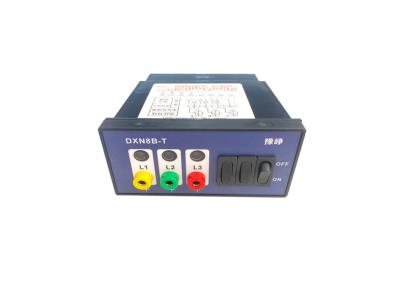

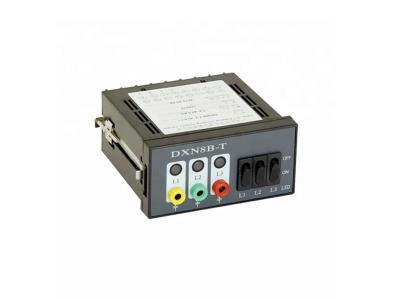

HVD-S-2 AC/DC110V/220V Device Detector Live Line With High Voltage Capacitive Indicator
Inquire Now#### **Description**
The HVD-S-2 AC/DC110V/220V Device Detector is an advanced non-contact high-voltage live detection device designed to enhance safety in power systems. This innovative device employs an integrated three-phase continuous display to accurately measure voltage loss in medium-voltage switchgear, ensuring the reliability and safety of electrical operations. By sensing electric field signals, it effectively reflects the charging status of high-voltage electrified bodies without direct connection, boasting a reliable locking mechanism to prevent unauthorized access.
Compliant with IEC 61243-5 and IEC 62271-213 standards, the HVD-S-2 is essential for indoor high-voltage electrical equipment, providing features such as flashing displays, sound alarms, self-check functions, and a forced locking circuit. It is particularly suited for use in 7.2kV to 40.5kV indoor and outdoor electrical networks, installed on line grounding switches and busbar grounding switches to prevent accidental grounding of live circuits.
#### **Specifications**
| Attribute | Details |
|---|---|
| Rated Voltage | 24V/110V/220V |
| Voltage Level | 1.52 kV (Medium-voltage) |
| Contact Capacity (Passive) | 8A, 250VAC/48VDC |
| Power Consumption | <2W |
| Working Frequency | 50Hz/60Hz |
| Standard | IEC 61243-5, IEC 62271-213 |
| Insulation Strength | 2kV, 1min |
| Nominal Voltage | 3-3.6kV, 6-7.2kV, 10-12kV, 20-24kV, 35-40.5kV |
| Shielded Cable Length | 2M, or customized |
| Operating Temperature | -25°C to 55°C, RH < 95% |
| Storage Temperature | -30°C to 75°C, RH < 95% |
| Protection Class | IP40/IP65 |
| Lifetime | Minimum 31 years (MTBF) |
| Mounting Dimension (WxHxD) | Panel window size 92x45mm, Recommended depth 130mm |
#### **Additional Information**
The HVD-S-2 is equipped with various functionalities including a self-test button, high voltage and disconnection alarms, and visual indicators through a bright LED or LCD screen. It also features electromagnetic lock automatic locking and relay signal output for interlocking indications. This device is crucial for ensuring the safety of personnel and preventing electrical accidents during operations.
