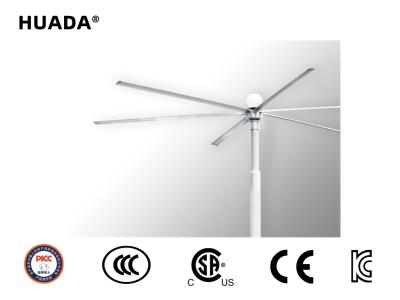

Hvls Vertical Fans with Lamp for Ourdoor Shopping Mall Air Ventilation
Inquire Now#### **Description**
The HVLS Vertical Fans with Lamp are expertly designed for outdoor shopping malls, providing exceptional air ventilation and enhancing comfort in large spaces. The Huada HDS series smart ceiling fan incorporates a permanent magnet motor that ensures high efficiency while being energy-saving. With a self-designed variable frequency speed control, this fan operates quietly and is lightweight, making it ideal for various environments, such as industrial plants, logistics warehouses, exhibition halls, and gymnasiums. It effectively circulates a substantial amount of airflow, creating a natural breeze-like experience that promotes a comfortable atmosphere for both personnel and customers.
#### **Specifications**
| Model | Diameter (m) | Diameter (ft) | Power (KW) | Horsepower (HP) | Voltage (V) | Frequency (HZ) | Air Volume (m³/min) | Rotating Speed (rpm) | Number of Leaves (Pcs) | Noise (dB) | Motor Weight (kg) | Ceiling Fan Weight (kg) | Effective Area (m²) | Coverage Area (m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HDS-3 | 3 | 10 | 0.37 | 0.5 | 220-240/380-460 | 50/60 | 4000 | 120 | 5/6 | 38 | 18 | 35 | 150 | 250 |
| HDS-3.7 | 3.7 | 12 | 0.37 | 0.5 | 220-240/380-460 | 50/60 | 5000 | 100 | 5/6 | 38 | 18 | 38 | 230 | 380 |
| HDS-4.3 | 4.3 | 14 | 0.75 | 1 | 220-240/380-460 | 50/60 | 7000 | 90 | 5/6 | 38 | 25 | 46 | 256 | 450 |
| HDS-5 | 5 | 16 | 1.1 | 1.5 | 220-240/380-460 | 50/60 | 10000 | 80 | 5/6 | 38 | 25 | 49 | 300 | 500 |
| HDS-5.5 | 5.5 | 18 | 1.1 | 1.5 | 220-240/380-460 | 50/60 | 11000 | 70 | 5/6 | 38 | 48 | 99 | 500 | 900 |
| HDS-6.1 | 6.1 | 20 | 1.5 | 2 | 220-240/380-460 | 50/60 | 11500 | 60 | 5/6 | 38 | 48 | 103 | 600 | 1000 |
| HDS-6.7 | 6.7 | 22 | 1.5 | 2 | 220-240/380-460 | 50/60 | 12000 | 55 | 5/6 | 38 | 48 | 107 | 650 | 1300 |
| HDS-7.3 | 7.3 | 24 | 1.5 | 2 | 220-240/380-460 | 50/60 | 13000 | 50 | 5/6 | 38 | 58 | 111 | 700 | 1500 |
#### **Additional Information**
Other specifications and models can be customized according to customer needs.
