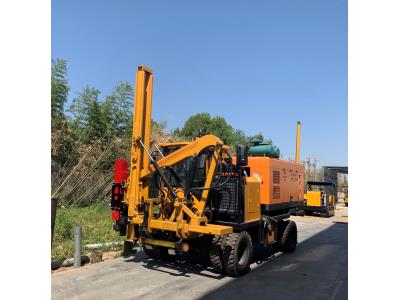

HXT series Highway Guardrail Construction Pile Driver With Air Compressor
Inquire NowDescription
The HXT Series Highway Guardrail Construction Pile Driver with Air Compressor is a robust and efficient machinery designed for driving guardrails on highways. Its versatile functionalities make it a vital tool for construction teams, ensuring swift and effective installation of guardrails. This pile driver features an advanced hydraulic system, enabling high-quality performance under various working conditions. With its powerful engine and sophisticated design, it guarantees not only speed but also precision in pile driving work.
Equipped with a 24V power supply and a hydraulic hammer type of YC260/YC360, the HXT Series provides an impressive working flow of 50-90 liters per minute. This machine is engineered for high efficiency, allowing for pile driving at rates of 2000 to 2500 mm/min. The driver also includes an air compressor with a pressure capacity of 15 m3/min, facilitating various pneumatic operations.
Specifications
| Specification | Details | Unit |
|---|---|---|

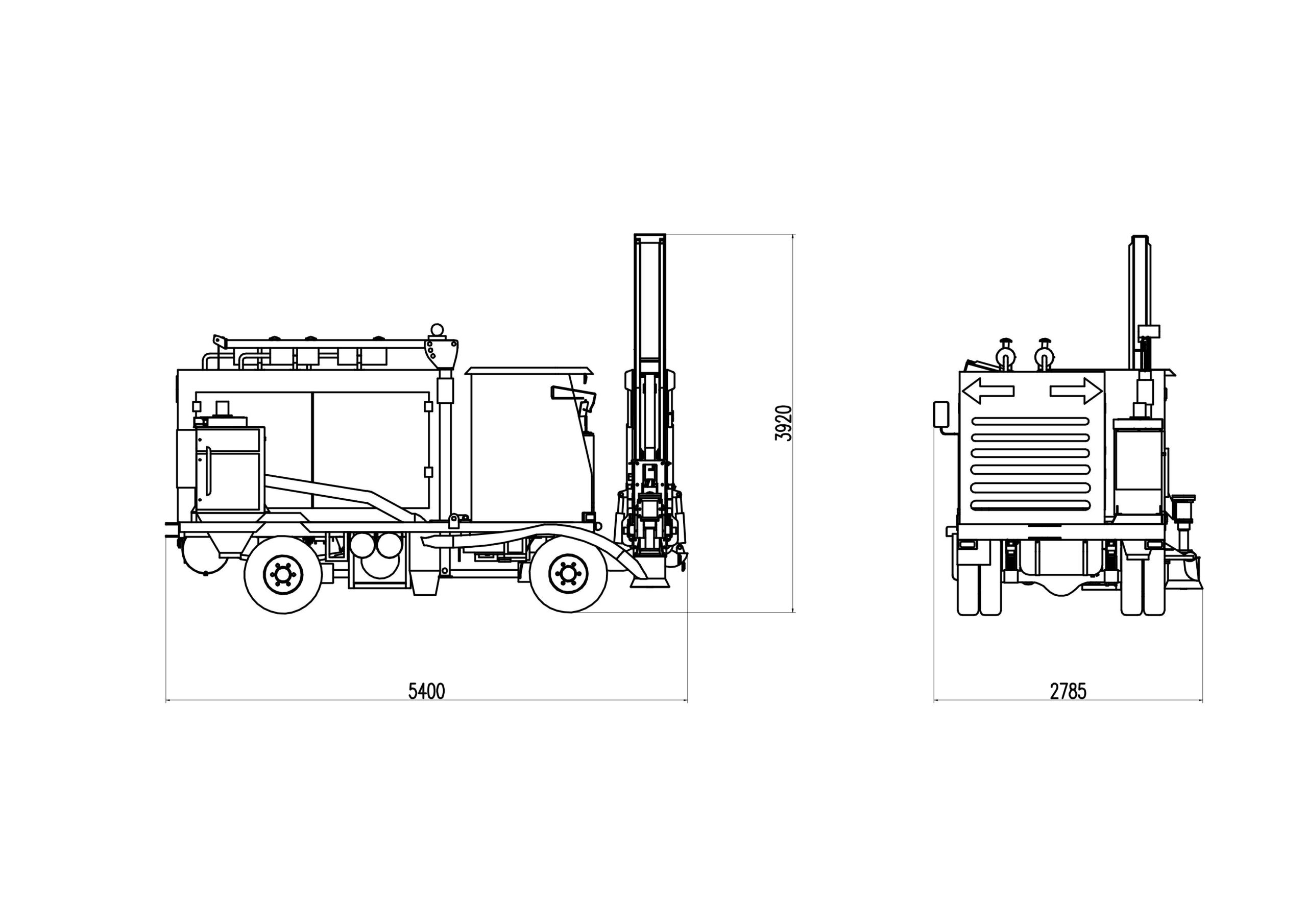

| Dimension (Folded) | 5600 x 2250 x 2600 | mm |
| Dimension (Working) | 5600 x 2650 x 3970 | mm |
| Chassis Body Width | 2150 | mm |
| Vehicle Weight | 7000 | kg |
| Tier Type | 7.5-16 | |
| Voltage | 24 | V |
| Hydraulic Hammer Type | YC260/YC360 | mm |
| Working Flow of Hydraulic Hammer | 50-90/50-90 | l/min |
| Mpa | 11-14/12-15 | Mpa |
| Shock Frequency | 400-800/400-800 | Bpa |
| Working Stroke of Hydraulic Hammer | 2300 | mm |
| Drill Rod Diameter | 75/85 | mm |
| Hitting Force of Hydraulic Hammer | 6-8/7-14 | T |
| Pile Driving Efficiency | 2000/2500 | mm/min |
| Walking Speed | >20 | km/h |
| Brake Mode | Four-wheel type air brake | |
| Drilling Engine Model | Cummins6BTA5.9-C180-2 | |
| Drilling Engine Power | 132 | Kw |
| Driving Mode | Four-wheel drive | |
| Turning Radius | 3000 | mm |
| Power of Pile Driving Engine | 53 | Kw |
| Torque of Rotary Motor for Percussion Drilling Tools | 800-1800 | Nm |
| Drilling Depth | 1700 | mm |
| Drilling Diameter | 0-300 | mm |
| Inclination of Slide Guide Rack | left30/right10 | ° |
| Hydraulic System Pressure | 60-100 | Mpa |
| Effective Capacity of Hydraulic Tank | 88 | L |
| Effective Capacity of Diesel Tank | 120 | L |
| Air Compressor Pressure | 15 | m3/min |
Additional Information
- Climbing Ability: 0.8-1.3 Mpa
- All Models: 0-25 °
- Other Configuration: HXT26-1,-2,-3,-4,-5; HXT36-1,-2,-3,-4,-5
- Includes: Pilot valve, air conditioner
