Hydraulic Benders & Digital Control Folder
Inquire NowDescription

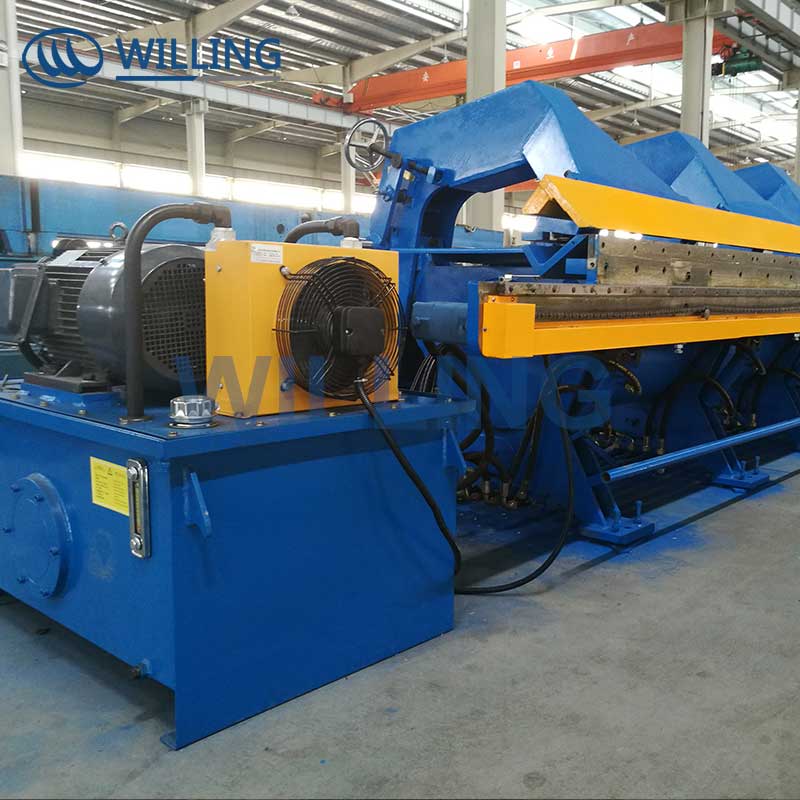

The Hydraulic Benders & Digital Control Folder is an advanced piece of equipment designed for precision bending and folding of various materials. This powerful machine combines hydraulic technology with digital controls to ensure accuracy and efficiency in metalworking processes. Ideal for professionals in fabrication and manufacturing, it boasts multiple models tailored to varying capacities and specifications, allowing users to select the perfect fit for their specific needs.
Specifications
| Model | Pressure (KN) | Work Table Length (mm) | Post Distance (mm) | Depth of Throat (mm) | Stroke Range (mm/min-1) | Open Height (mm) | Power (kg) | Weight (kg) | Size (L*W*H) (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 63t/2500 | 630 | 2500 | 1900 | 250 | 120 | 360 | 5.5 | 4200 | 2500*1600*2210 |
| 63t/3200 | 630 | 3200 | 2600 | 250 | 120 | 360 | 5.5 | 5000 | 3200*1600*2210 |
| 80t/3000 | 800 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 5600 | 3200*1700*2300 |
| 80t/4000 | 800 | 4000 | 3100 | 320 | 120 | 380 | 7.5 | 6200 | 4000*1700*2400 |
| 100t/3200 | 1000 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 6400 | 3200*1800*2500 |
| 100t/4000 | 1000 | 4000 | 3100 | 320 | 120 | 380 | 7.5 | 7100 | 4000*1800*2500 |
| 125t/3200 | 1250 | 3200 | 2600 | 320 | 120 | 400 | 7.5 | 6800 | 3200*1850*2500 |
| 125t/4000 | 1250 | 4000 | 3100 | 320 | 120 | 400 | 7.5 | 7400 | 4000*1850*2500 |
| 160t/3200 | 1600 | 3200 | 2600 | 320 | 200 | 450 | 11 | 10000 | 3200*1900*2700 |
| 160t/4000 | 1600 | 4000 | 3100 | 320 | 200 | 450 | 11 | 11000 | 4000*1900*2700 |
| 200t/3200 | 2000 | 3200 | 2600 | 320 | 200 | 450 | 11 | 11000 | 3200*1950*2800 |
| 200t/4000 | 2000 | 4000 | 3100 | 320 | 200 | 450 | 11 | 13000 | 4000*1950*2800 |
