Hydraulic bending machine
Inquire NowDescription

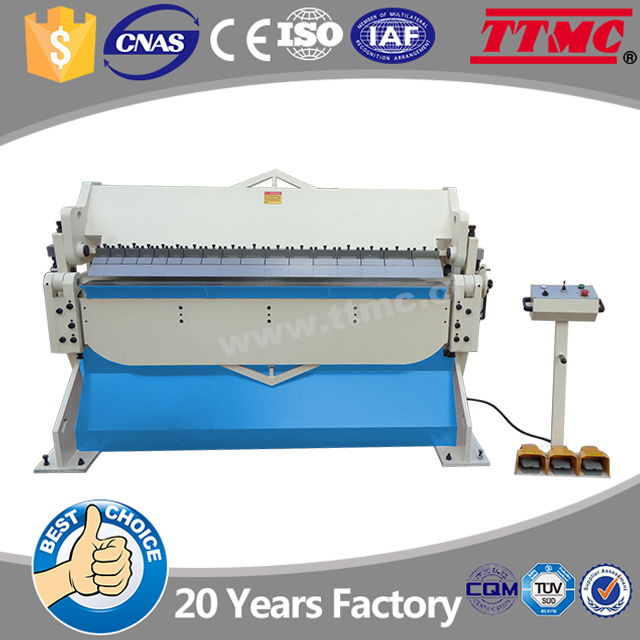

The Hydraulic Bending Machine is a robust and versatile tool designed for precision metal bending. Featuring a rigid steel welding structure capable of bending materials up to 3.5mm in thickness, this machine ensures durability and reliability in various industrial applications. The user-friendly design includes hand wheels for easily adjustable upper and lower tool distances and a bending angle setting device that allows for angle adjustments from 0 to 135 degrees. With a foot pedal switch, operators can maintain full control of their hands while working, enhancing efficiency and safety. The machine also comes equipped with a complete protection cover, ensuring user safety during operation.
Available in two types, users can select between a movable control panel (Type A) or a fixed control panel (Type B) to suit their workspace needs. Enhance your workshop’s capabilities with this indispensable hydraulic bending machine.
Specifications
| Attribute | Details |
|---|---|
| Item No. | 373502 |
| Model | HW1830x3.5 |
| Max. bending thickness | 3.5 mm (stainless steel 2.5 mm) |
| Max. bending width | 1830 mm |
| Bending angle | 0-135° |
| Max. box depth | 150 mm |
| Large beam opening | 75 mm |
| Manual back gauge | 660 mm |
| Hydraulic cylinder pressure | Max. 15 Mp |
| Hydraulic cylinder speed | 50-85 mm/s |
| Motor working pressure | 12 Mp |
| Manual beam adjustment (front and back) | 0-25 mm |
| Control panel A | with movable control panel |
| Control panel B | with fixed control panel |
| Motor power | 3.7 kW |
| Packing size | 260x102x170 cm |
| N.W./G.W. | 2170/2300 kg |
Standard Accessories
- Back gauge
- Control panel
