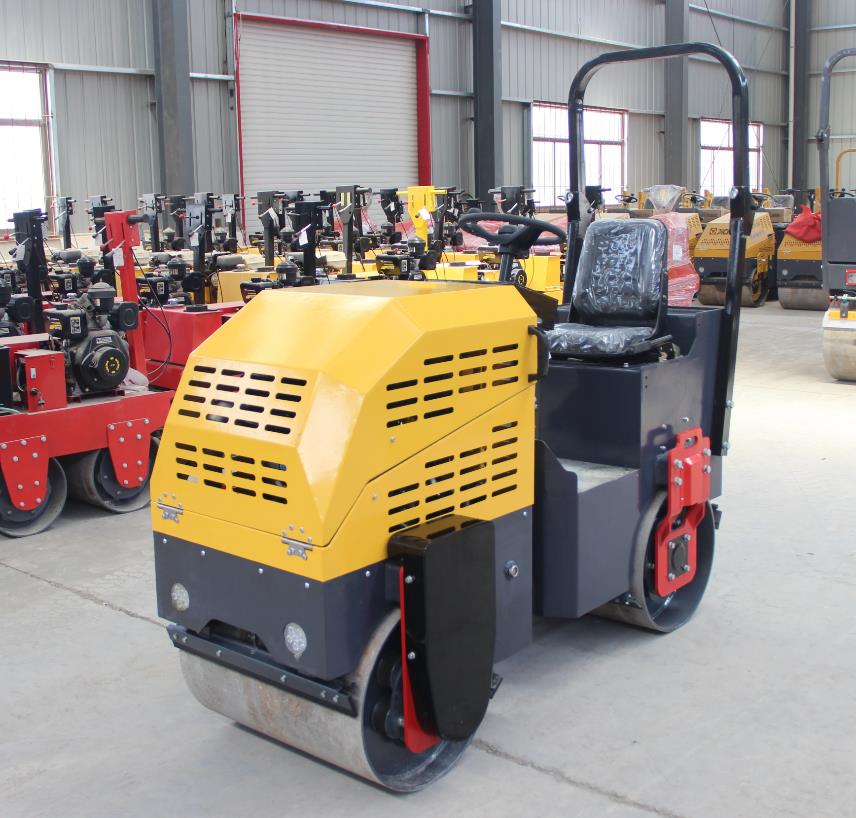

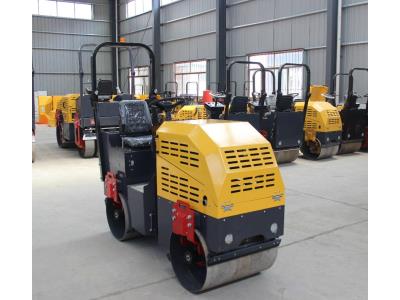

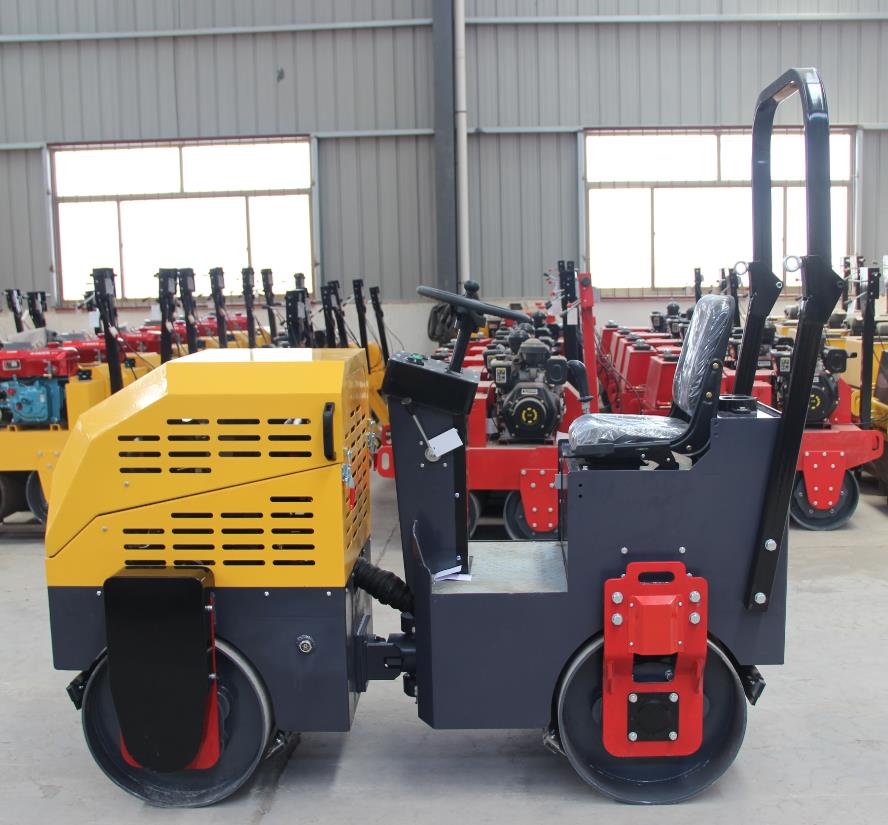

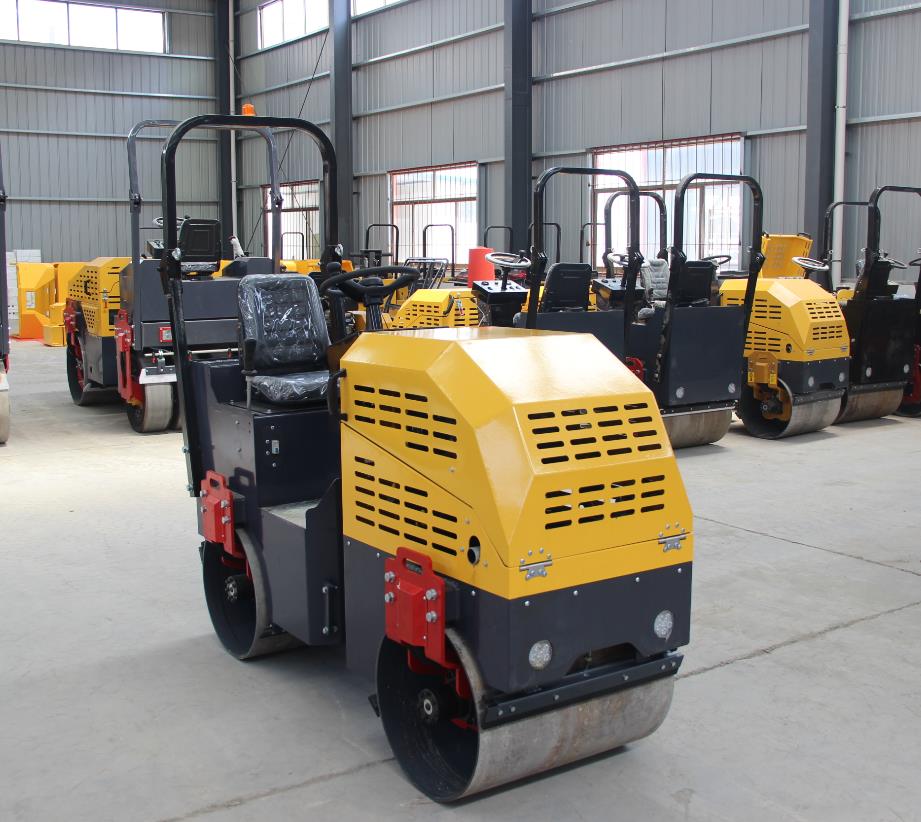

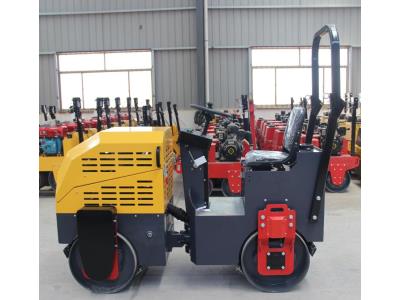

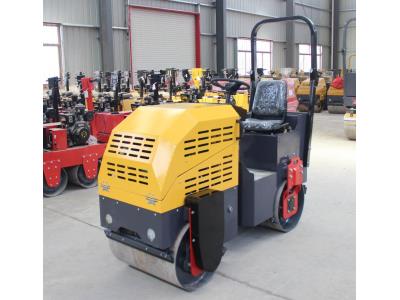

Hydraulic double drum rollers diesel engine ride on roller 1 ton road roller
Inquire Now#### **Description**

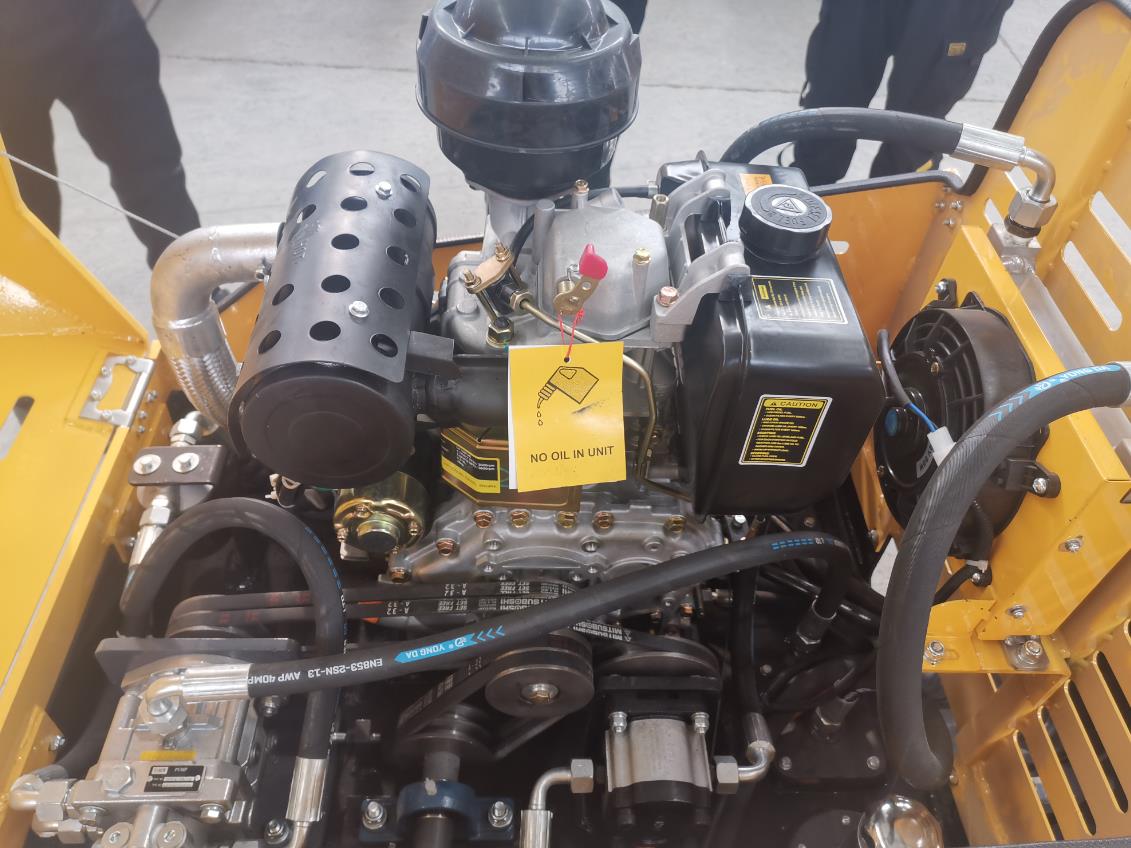

The Hydraulic Double Drum Roller is a powerful and efficient ride-on road roller designed for optimal compaction of various surfaces. Powered by a robust diesel engine, this 1-ton road roller features brand-name quality assurance and a strong performance that ensures reliable operation. Its articulated connection between the front and rear frames provides superior maneuverability, while the front and rear two-wheel drive enhances mobility on uneven terrains. The hydraulic power steering system allows for effortless handling, making it a perfect choice for construction and road maintenance projects.
#### **Specifications**
| Attribute | Specification |
|---|---|
| Speed | 0-8 KM/H |
| Turning Radius | 2000 mm |
| Gradeability | 30% |
| Power | 9 HP / 3600 RPM |
| Before/After Static Line Load | 56 N/cm |
| Fuel Tank Capacity | 5.5 L |
| Nominal Amplitude | 0.5 mm |
| Fuel Consumption | 300/KW.H |
| Vibration Frequency | 75 HZ |
| Steel Wheel Width | 700 mm |
| Steel Wheel Diameter | 530 mm |
| Drive Method | Hydraulic Drive, Stepless Speed Change |
| Vibration Method | One-Button Vibration, Electromagnetic Clutch |
| Steering Method | Hydraulic Steering |
| Sprinkling Method | Electronically Controlled Pressure Water Spray |
| Total Length | 2100 mm |
| Total Width | 860 mm |
| Total Height | 1600 mm |
| Package Dimensions | 2290*950*1650 mm |
| Working Weight | 1040 kg |
#### **Additional Information**
This roller is ideal for construction sites, road repairs, and heavy-duty compaction tasks. It is designed to provide excellent performance and durability, ensuring that operators can achieve efficient compaction results.
