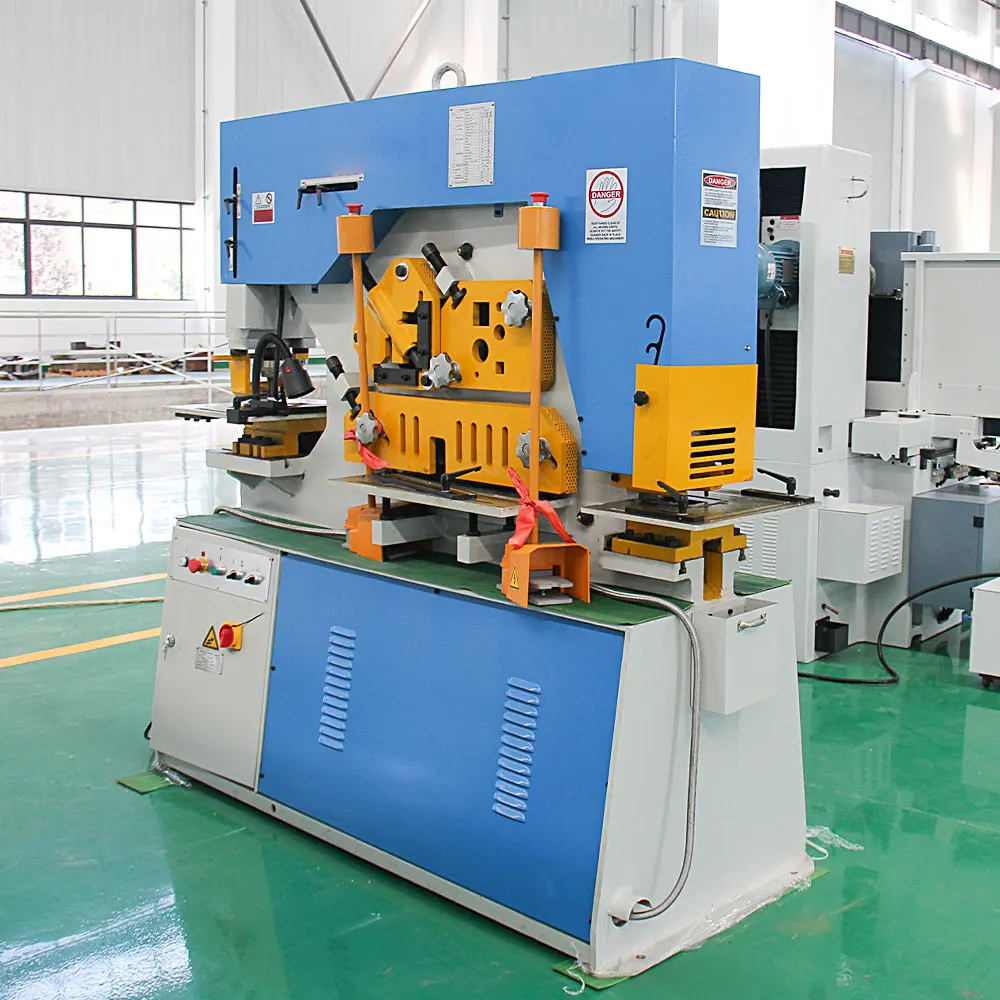

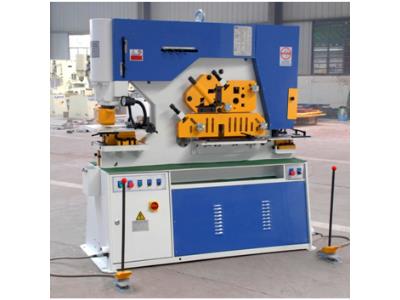

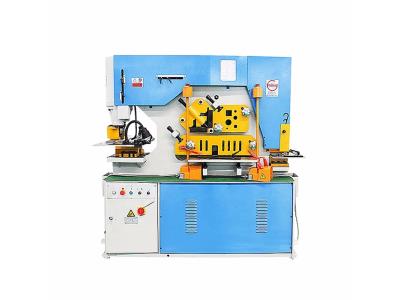

Hydraulic Iron Worker PS50/Iron Worker/punching shearing machine
Inquire NowDescription

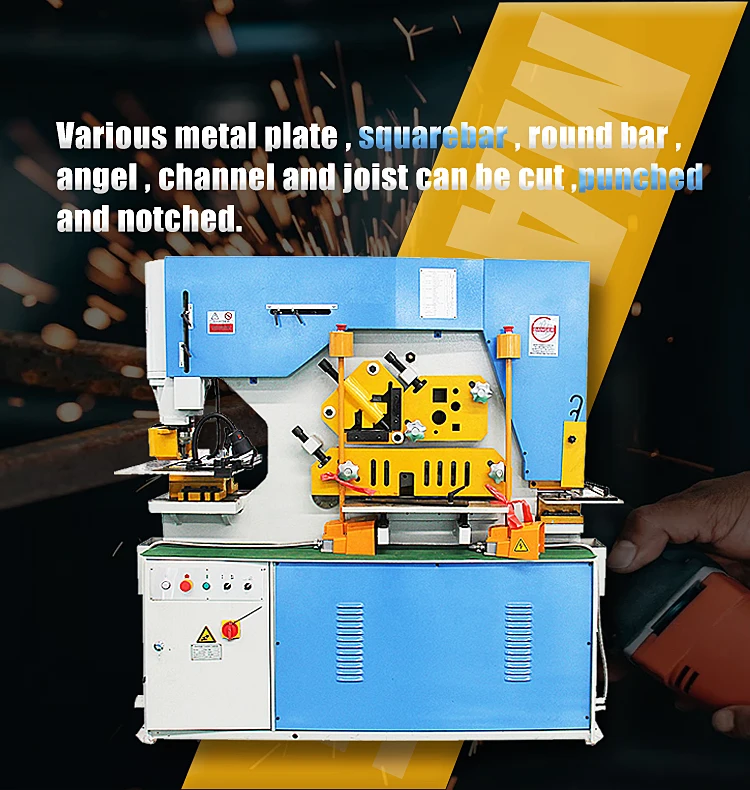

The Hydraulic Iron Worker PS50 is a versatile punching and shearing machine that stands at the forefront of metalworking technology. Designed with a hydraulic driving system, this machine is capable of efficiently cutting, punching, and notching various metal materials, including metal plates, square bars, round bars, angles, channels, and joists. The PS50’s robust construction ensures reliability and high performance, making it an essential tool in mechanical processing and civil engineering projects.

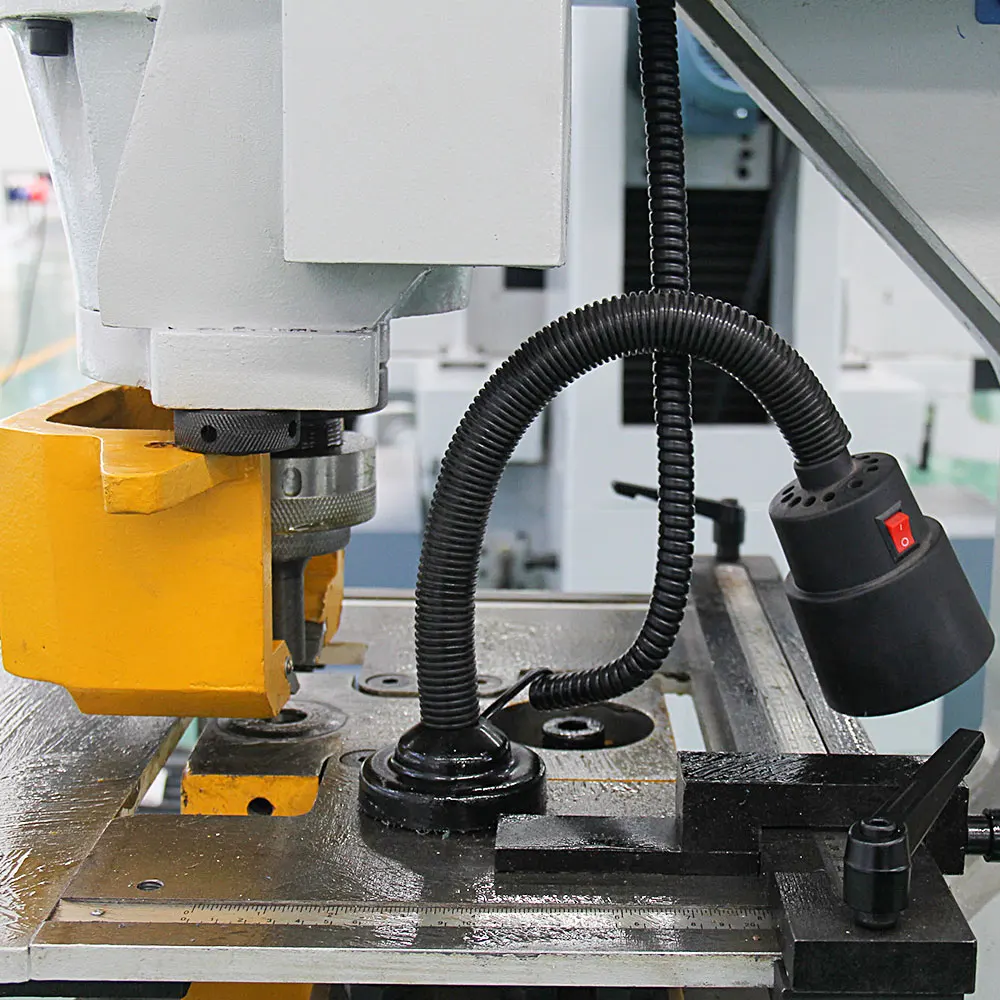

This equipment includes a stop device for precise cutting operations, enhancing its usability in demanding environments. The PS50 is available in various models, each tailored to meet specific requirements, making it a flexible choice for any workshop.
Specifications
| Model | Pressure (Ton) | Max Cutting Thickness (mm) | Plate Strength (N/mm²) | Shearing Size of One Stroke (mm) | Overall Dimensions (LxWxH) (mm) | Weight of Machine (kg) |
|---|---|---|---|---|---|---|
| Q35Y-12 | 60 | 12 | ≤450 | 12*300 | 960*550*1783 | 700 |
| Q34Y-16 | 60 | 16 | ≤450 | 16*150, 4*550 | 1585*630*1570 | 1300 |
| PS50 | 50 | 15 | ≤450 | 15*300 | 1320*590*1620 | 1400 |
| PS55 | 55 | 16 | ≤450 | 16*250, 8*400 | 1640*730*1770 | 1600 |
| PS75 | 75 | 20 | ≤450 | 20*330, 10*480 | 1860*800*1900 | 2000 |
| PS110 | 110 | 25 | ≤450 | 25*330, 16*600 | 2355*960*2090 | 4800 |
Additional Information
Operating the PS50 is straightforward and efficient. It is important to ensure that the machine is properly maintained to guarantee its longevity and performance. Additionally, users should be familiar with the specific cutting capacities and safety measures associated with different models to maximize productivity and minimize risks.
