Description

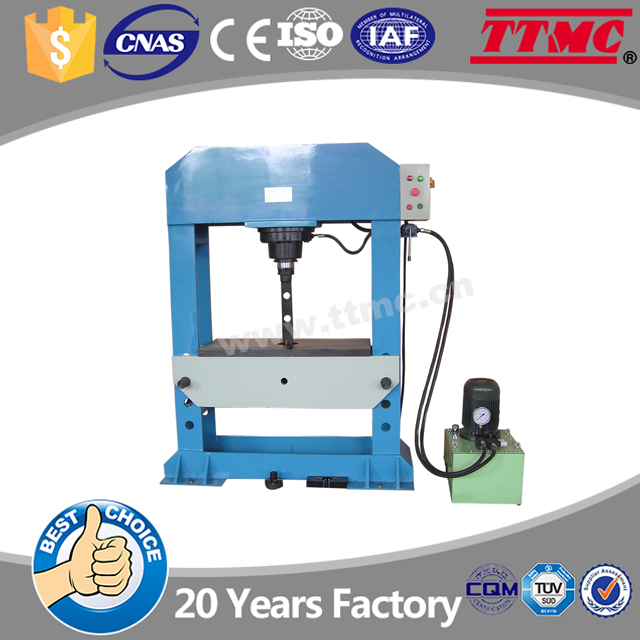

The Hydraulic Press is a versatile and efficient machine designed for various applications such as assembling, dismantling, bending, and punching of machine parts. Equipped with advanced Italian CNK and CBZ oil pumps, this hydraulic press is engineered to save over 60% in energy consumption compared to traditional models, without compromising performance. Its high efficiency, compact design, and lightweight structure make it an ideal choice for any workshop.
One of the standout features is its adjustable working table, which can move up and down, greatly enhancing the operational height and ease of use. This hydraulic press combines functionality with user-friendly design to meet the demands of modern manufacturing processes.
Specifications
| Attribute | Details |
|---|---|
| Item No. | 382006 |
| Model | HP-100 |
| Capacity | 1000 kN |
| Pressure | 30 mpa |
| Piston Travel / Table Travel | 250 + 405 mm |
| Motor Power | 3 kW |
| Table Size | 460 x 980 mm |
| N.W./G.W. | 1220/1420 kg |
| Dimension for Body | 182 x 75 x 225 cm |
| Dimension for Hydraulic Station | 73 x 63 x 96 cm |
Additional Information
Standard Accessories:
- V-block
- Pressure head
- Sealing element
Optional Accessories:
- Lifting appliance
- Protective screening
- Foot pedal switch
