Description
The IBR/trapezoid roof sheet roll forming machine is designed for efficiency and precision in metal sheet production. Capable of operating at a speed of 30 meters per minute, this advanced machine comes equipped with an electric cutter, making it a reliable choice for manufacturers looking to streamline their roofing sheet fabrication process. Constructed using high-quality materials, this machine ensures durability and performance, suitable for working with various materials including PPGI, GI, and Aluminium.

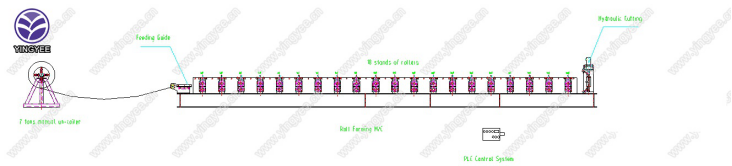

Key components of the machine include a manual coiler, adjustable input leveling equipment, a main roll forming machine with chromed plates, and a hydraulic cutting system. The PLC control system enhances operational efficiency, allowing for precise control of the production process.
Specifications
| Feature | Details |
|---|---|
| Matching Material | PPGI/GI/Aluminium |
| Material Thickness | 0.2-0.8 mm |
| Power | 7.5 kW |
| Forming Speed | 30 m/min |
| Width of Plates | According to drawings |
| Input Leveling Equipment | Adjustable |
| Roll Stations | 22 |
| Shaft Material and Diameter | 45# Steel, ￠75 mm |
| Tolerance | 10 m ± 1.5 mm |
| Way of Drive | Chain driven |
| Controlling System | PLC |
| Voltage | Depends on client |
| Material of Forming Rollers | 45# Steel, heat treatment and chromed |
| Side Plate | Steel plate with Chromed |
| Size | Length: 6.7 m, Weight: 5 tons |
Additional Information
- Hydraulic cutting system included for precise cuts.
- PLC control system ensures ease of operation and efficiency.
