Description

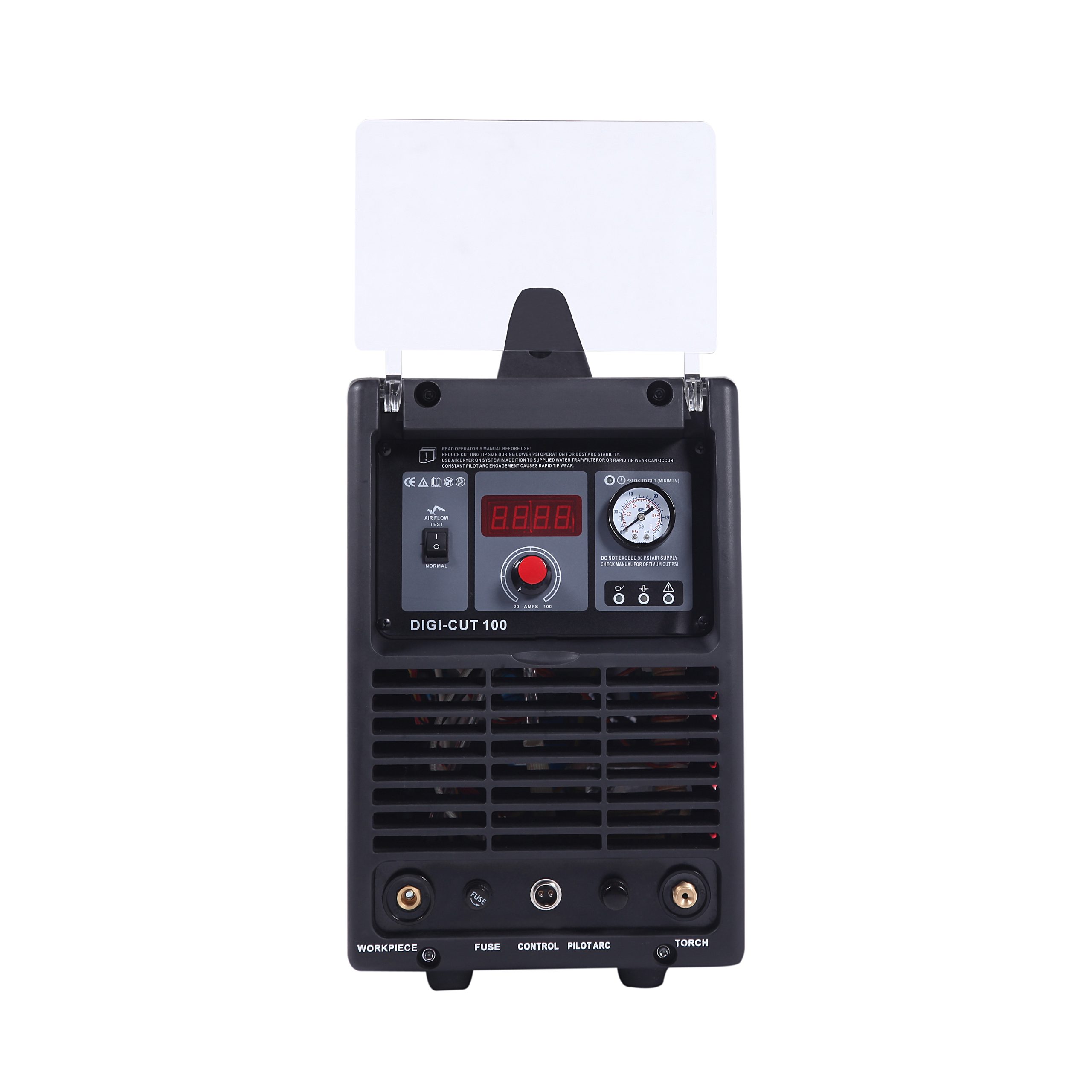

IGBT Inverter Plasma Cutting Machine is designed for high-frequency plasma cutting, offering exceptional performance and versatility. With options for HF or non-HF pilot arc, this machine is perfect for both professional and DIY applications. It features a user-friendly digital display for cutting current, along with a built-in gas pressure sensor that ensures safety by monitoring gas flow and pressure. The machine supports 2T/4T operation modes, providing flexibility for various cutting tasks. Its advanced design ensures high-quality cuts and reliable operation.
Specifications
| Model | Power Supply Voltage | Rate Input Capacity (KVA) | Rate Input Current (A) | No Load Voltage | Output Current Range | Duty Cycle | Max Cutting Thickness | Weight | Dimensions (L*W*H mm) |
|---|---|---|---|---|---|---|---|---|---|
| DIGI-CUT60-1 | 1*230V 50/60Hz | 8.6 | 37 | 240 | 20-60A | 60% | 25mm | 15kg | 515*230*395 |
| DIGI-CUT60 | 3*400V 50/60Hz | 11 | 16 | 250 | 20-60A | 60% | 25mm | 20kg | 515*230*395 |
| DIGI-CUT80 | 3*400V 50/60Hz | 16 | 23 | 250 | 20-80A | 60% | 32mm | 25kg | 515*230*395 |
| DIGI-CUT100 | 3*400V 50/60Hz | 20 | 48 | 250 | 20-100A | 60% | 35mm | 28kg | 515*230*395 |
