Incinerator second preheater

Inquire Now

Description

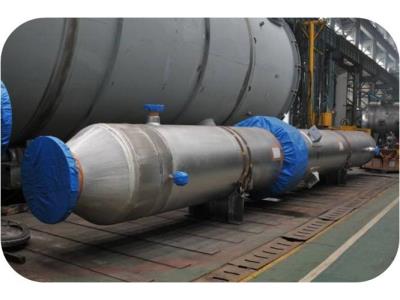

The Incinerator Second Preheater is a state-of-the-art solution designed for efficient thermal processing. Engineered with precision, it features a robust construction that meets stringent industry standards, including ASME U/U2/N/NPT and ISO9001 certifications. This preheater is constructed from high-grade materials, ensuring durability and longevity, making it ideal for high-pressure applications.

With a design pressure of 10.9 Mpa for management and 2.0 Mpa for the shell side, this preheater is built to handle intense operational demands. The set temperature reaches up to 350℃ on both the pipe pass and shell side, ensuring optimal performance in heat transfer processes. Its standard size of Ф 1100×13518×58 and a weight of 30.6 tons make it a substantial addition to any industrial setup.

Specifications

Attribute Details
Material 00Cr17Ni12Mo2 (tube side) / 16MnR (shell side)
Design Pressure 10.9 Mpa (Management) / 2.0 Mpa (Shell Side)
Set Temperature 350℃ (Pipe Pass) / 350℃ (Shell Side)
Standard Sizes Ф 1100×13518×58
Weight 30.6 Tons
