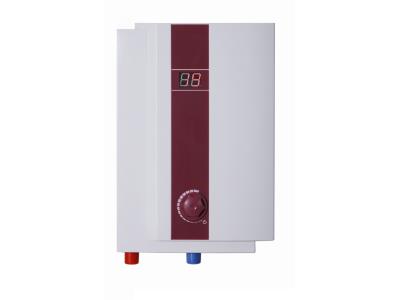

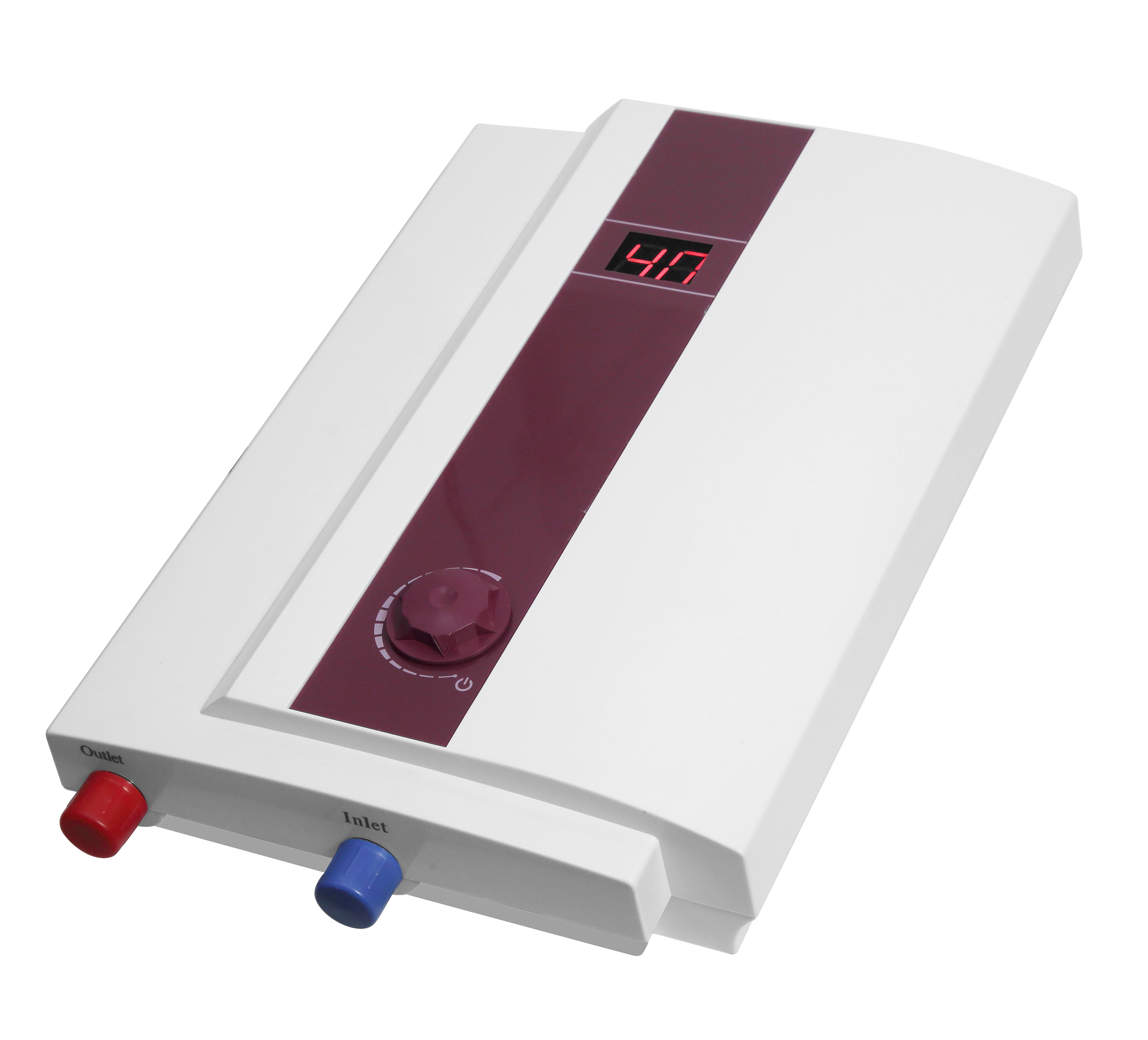

Instant Electric Water Heater DR08A
Inquire NowDescription
Introducing the Instant Electric Water Heater DR08A, a cutting-edge solution designed for immediate hot water needs. This efficient unit features electronic control for a consistent water temperature, allowing for stepless knob temperature adjustments displayed digitally for convenience. With its super slim shell and sleek appearance, it not only provides functionality but also enhances your space’s aesthetic. This energy-saving heater is engineered for rapid heating, offering dry heating and overheating protection, making it capable of withstanding high water pressure for robust performance.
Specifications
| Product Category | Instant Water Heater |
|---|---|
| Phase | 1 |
| Voltage | 220-240V |
| Frequency | 50Hz/60Hz |
| Power | 6 KW / 8 KW / 9 KW / 12 KW |
| Current | 28A / 37A / 41A / 55A |
| Working Pressure | 0.1-0.8MPa |
| Switch on Water Flow | 1.5 L/MIN |
| Usage Water Flow | ≥ 6.0L/MIN |
| Connection | G 1/2 |
| Wire Size | 3×4mm2 / 3×6mm2 / 2×8mm2 + 1×4mm2 |
| Waterproof Grade | IPX4 |
| Protection Category | I |
| Control Method | Electronical |
| On/Off Button | Yes |
| Working Indicator | Yes |
| Thermostatic | Yes |
| Temp. Setting Range | 35°C-50°C |
| Overheat Protection | 55°C |
| Thermal Cut-out | 95°C |
| Certificate | CE |
| Net Weight | 2.64 KG |
| Gross Weight | 3.9 KG |
| Net Dimension | 25.5×8.5×38 CM |
| Unit Box Dimension | 27×9.5×46.5 CM |
| Master Carton Dimension | 28.5×40.5×49 CM (4B) |
| Loading Capacity 20Ft/40GP/40HQ | 435/880/995 / 1740/3520/3980 |
Additional Information
- Fast and efficient heating, perfect for immediate hot water needs.
- Designed to be energy-saving while ensuring high performance.
- Includes advanced safety features to protect against dry heating and overheating.
