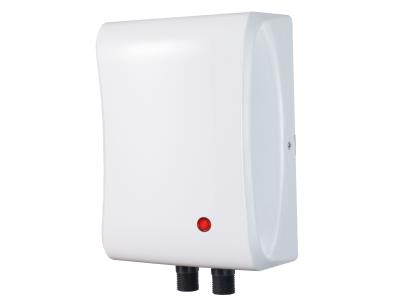

Instant Electric Water Heater Mini Heater DR10C
Inquire NowDescription
The Instant Electric Water Heater Mini Heater DR10C is a compact and efficient solution for your hot water needs. Designed for versatility, this mini heater can be installed over or under the sink, either vertically or inversely, making it perfect for any kitchen or bathroom space. Whether you need hot water for washing hands, vegetables, or any quick task, the DR10C delivers super instant hot water with high heating efficiency. Its user-friendly installation process ensures that you’ll be up and running in no time. With built-in dry heating and overheating protection, this mini heater is capable of withstanding high water pressure, providing you peace of mind while you enjoy the convenience of instant hot water.
Specifications
| Product Category | Mini Water Heater |
|---|---|
| Phase | 1 |
| Voltage | 110V / 220V |
| Frequency | 50Hz / 60Hz |
| Power | 2 KW / 3.5 KW / 4.5 KW / 5.5 KW |
| Current | 18.2A / 16A / 21A / 25A |
| Working Pressure | 0.1-0.6MPa |
| Switch on Water Flow | 1.5 L/MIN |
| Usage Water Flow | ≥ 3.0L/MIN |
| Connection | G3/8; G 1/2 |
| Wire Size | 3×1.5mm² / 3×2.5mm² |
| Waterproof Grade | IPX4 |
| Protection Category | I |
| Control Method | Mechanical |
| On/Off Button | No |
| Working Indicator | Yes |
| Thermostatic | No |
| Temp. Setting Range | / |
| Overheat Protection | 75°C |
| Thermal Cut-out | 75°C |
| Certificate | CE, CB, CCC |
| Net Weight | 1 KG |
| Gross Weight | 1.2 KG |
| Net Dimension | 13×7×18 CM |
| Unit Box Dimension | 15×8.5×24 CM 20.5×8.5×24 CM (Mixing Valve) |
| Master Carton Dimension | 50×37×31.5 CM (16B) 50×37×42.5 CM (16B MV) |
| Loading Capacity 20Ft/40GP/40HQ | 462/966/1127 330/690/828 |
Additional Information
- Dry heating and overheating protection ensure safety
- Designed for high water pressure applications
- Easy to operate with a mechanical control method
