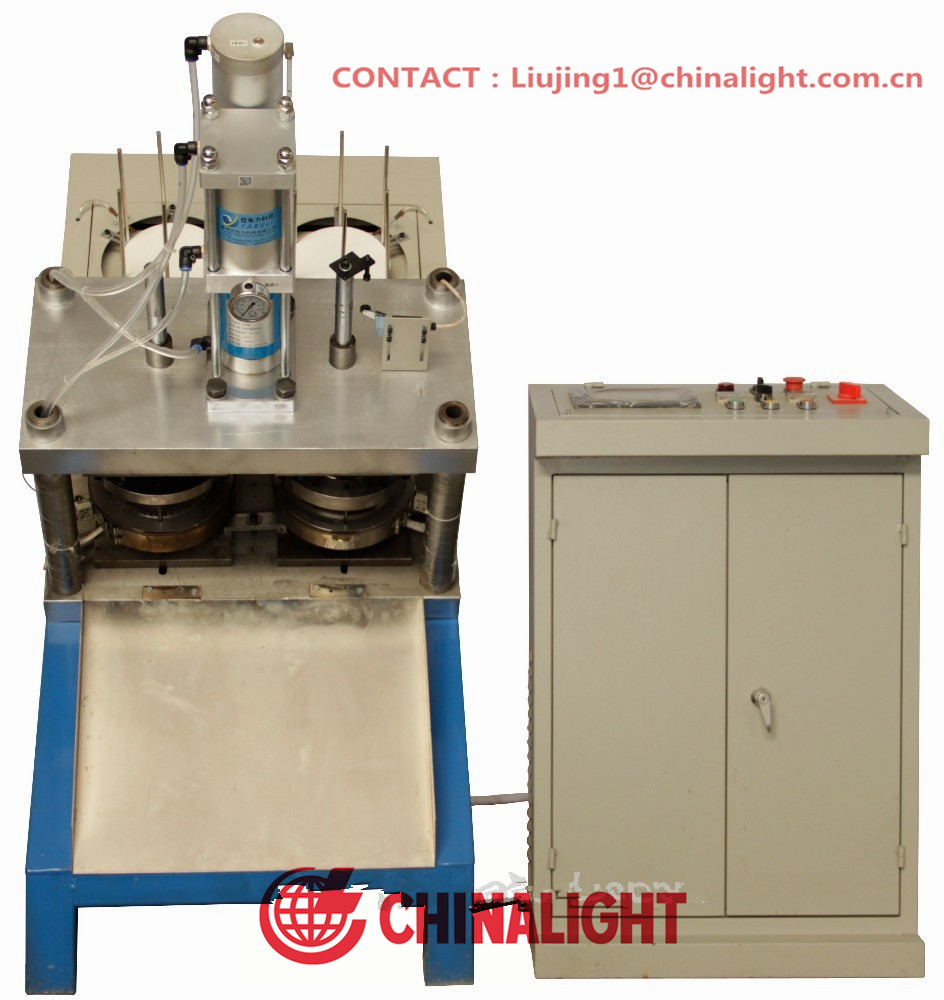

Intelligent-auto Paper Plate Machine
Inquire NowDescription
The Intelligent-auto Paper Plate Machine is an advanced solution for efficient paper plate production. Featuring state-of-the-art technology, this fully automatic machine is equipped with Mitsubishi PLC and a user-friendly touch-screen interface available in both Chinese and English. The system operates using a reliable AirTAC cylinder for precise reciprocal motion, ensuring consistent performance and stability. With the capability to produce 10-25 plates per minute, the machine allows for customization based on paper thickness, accommodating 1-10 sheets per press with two sets of molds. Its robust design and practical features make it an ideal choice for businesses looking to enhance their production efficiency.
Specifications
| Attribute | Details |
|---|---|
| Raw Material | 120-600 g/m² |
| Forming Temperature | 120-250 °C |
| Air Pressure | 0.5 – 0.8 MPa |
| Gas Flow | 1 m³/min |
| Total Power | 2 kW |
| Power Supply | 220V 50Hz (customizable) |
| Dimensions | Machine: 1.65m x 1m x 1.6m, Weight: 1000 kg |
| Auxiliary Machine Dimensions | 0.9m x 0.6m x 1.2m, Weight: 100 kg |
| Operation | Easy to operate, aesthetically pleasing design |
