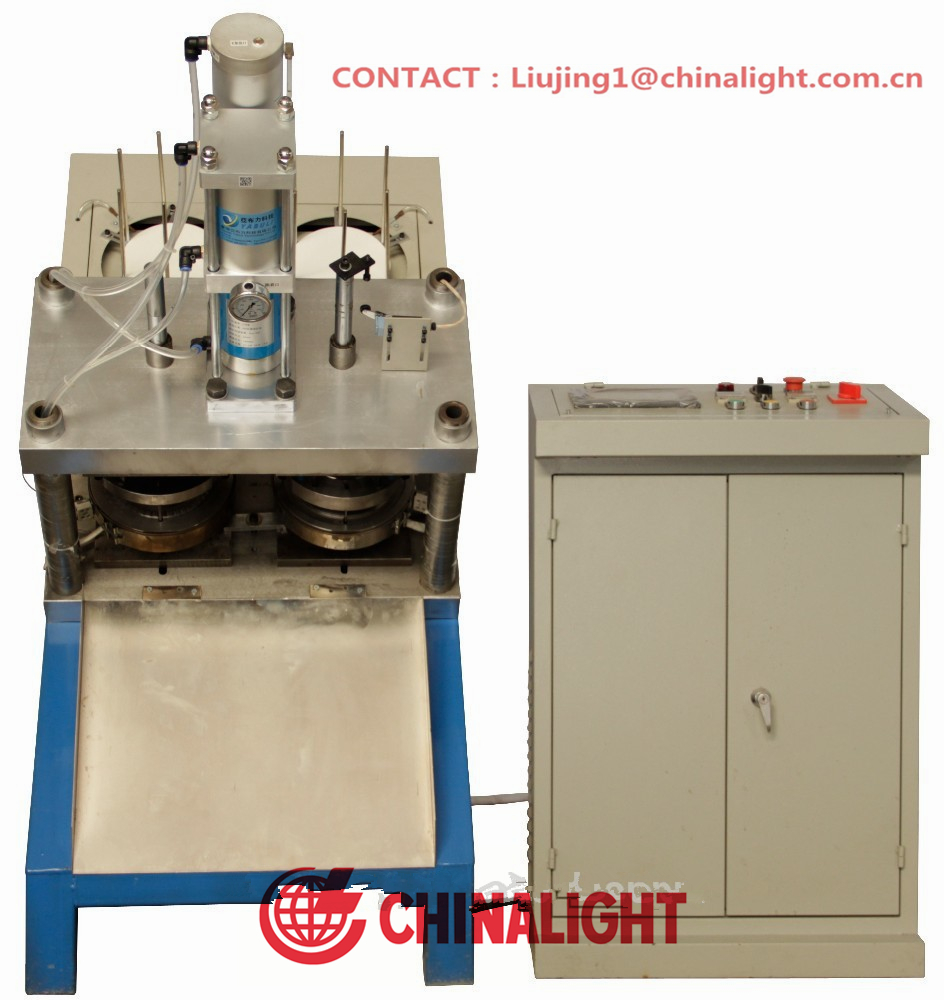

Intelligent-auto Paper Plate Machine
Inquire NowDescription
The Intelligent-auto Paper Plate Machine is a state-of-the-art solution designed for efficient and automated production of paper plates. Utilizing advanced technology, this machine features a Mitsubishi PLC control system combined with a user-friendly touch-screen interface available in both Chinese and English. The powerful AirTAC cylinder performs reciprocal motions to ensure stable operation and high performance. With the ability to adjust the number of paper layers pressed in each cycle, this machine can handle varying paper thicknesses effectively. It boasts a production capacity of 10 to 25 plates per minute, making it an ideal choice for high-demand manufacturing environments.
Specifications
| Attribute | Details |
|---|---|
| Material | 120-600 g/m² |
| Forming Temperature | 120-250 °C |
| Air Pressure | 0.5-0.8 MPa |
| Gas Flow | 1 m³/min |
| Total Power | 2 kW |
| Power Supply | 220V 50HZ (customizable) |
| Dimensions | 1.65 m (L) x 1 m (W) x 1.6 m (H) |
| Weight | 1000 kg |
| Additional Machine Dimensions | 0.9 m (L) x 0.6 m (W) x 1.2 m (H) |
| Additional Machine Weight | 100 kg |
| Operation | Easy to operate, aesthetically pleasing design |
Additional Information
This machine offers a remarkable production efficiency with the capability to adjust the mold for different paper sizes, ensuring versatility in manufacturing. The operational design prioritizes user convenience and performance, making it suitable for various industrial applications.
