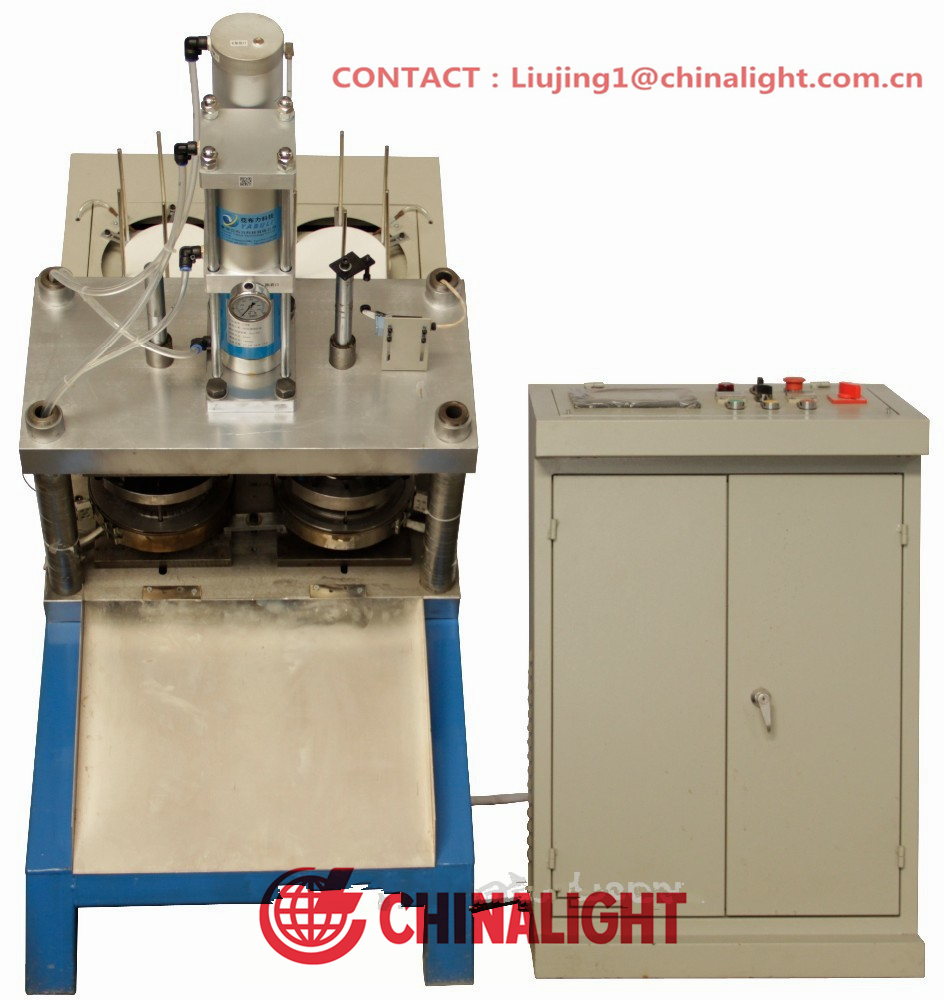

Intelligent-auto Paper Plate Machine
Inquire NowDescription
The Intelligent-auto Paper Plate Machine is a state-of-the-art device designed for efficient and automated production of paper plates. Utilizing advanced technology, this machine incorporates a Mitsubishi PLC and a user-friendly touch-screen interface, available in both Chinese and English. The system operates on a PLC-controlled AirTAC cylinder, ensuring stable performance and reliability. With a mold opening and closing frequency of 10-25 times per minute, the machine can accommodate 1-10 sheets of paper per cycle, depending on the thickness. It is capable of producing up to 25 plates per minute, making it an ideal solution for high-volume production demands.
Specifications
| Attribute | Details |
|---|---|
| Production Rate | 10-25 plates/minute |
| Raw Material | 120-600 g/m² |
| Forming Temperature | 120-250 °C |
| Air Pressure | 0.5-0.8 MPa |
| Gas Flow | 1 m³/min |
| Power Supply | 220V 50HZ (customizable) |
| Total Power | 2 kW |
| Dimensions | Machine: 1.65m x 1m x 1.6m; Weight: 1000 kg |
| Auxiliary Machine Dimensions | 0.9m x 0.6m x 1.2m; Weight: 100 kg |
| Features | Easy to operate, aesthetically pleasing design |
