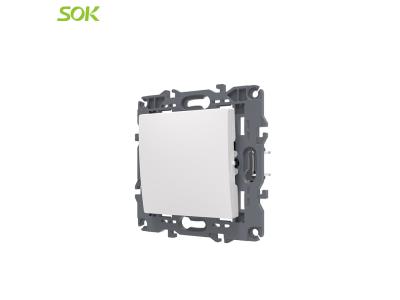

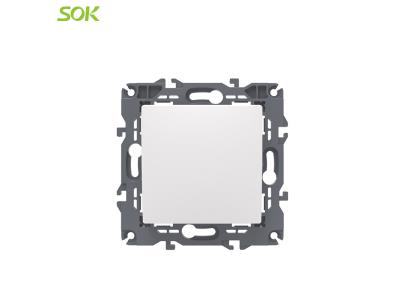

Intermediate Light Switch
Inquire NowDescription
The Intermediate Light Switch in the S81 series is an essential component for controlling lighting in spaces with three or more switches. Designed specifically as a three-way switch, it serves as the middle switch in a circuit, allowing for seamless control of a single light source from multiple locations. This innovative design is ideal for hallways, staircases, or large rooms where convenience and accessibility are paramount.
Product Advantages:
- Large board design: Offers a comfortable touch, enhancing user experience.
- Long lifetime: Capable of operating on/off at least 40,000 times, ensuring durability.
- High-quality materials: Constructed with fire-resistant PC, withstanding temperatures up to 850℃ and passing a 3000V test for enhanced safety.
- Fast delivery: Typically produced within 30-45 days, with a dedicated service team to assist with order tracking and shipping arrangements.
Specifications
| Attribute | Details |
|---|---|
| Model No. | S81/L4 |
| Product Type | Rocker Switch |
| Electrical Parameter | 10 AX at 250 V AC 50/60 Hz |
| Device Presentation | Complete mechanism, compatible with S81 series cover |
| Color | White or Customized |
| Device Application | Control |
| Electrical Durability | 10,000 cycles |
| Opening Distance | > 3 mm |
| Dielectric Strength | 2000 V |
| Actuator | Rocker |
| Number of Modules | 2 modules |
| Connections – Terminals | Screwless terminals and screw terminals |
| Clamping Connection Capacity | 0…2.5 mm² for rigid and flexible cables |
| Material | PC (polycarbonate) |
| Wire Stripping Length | 12.5 mm |
| Standards | EN/IEC 60669-1 |
| Certification | TUV, CE, ROHS |
| IP Degree of Protection | IP20 |
Additional Information
| Origin | Guangdong, China |
| Package | 1 pcs/bag, 10 pcs/box, 100 pcs/carton |
