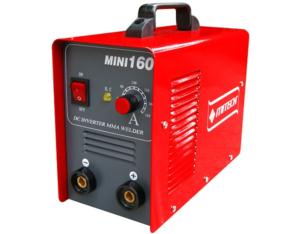

Inventer DC MMA Welding Machine MINI160
Inquire NowDescription
The Inventer DC MMA Welding Machine MINI160 is a compact and efficient welding solution designed for both amateur and professional welders. Its small size and lightweight build make it highly portable, allowing for easy transportation and use in various settings. This machine boasts low energy consumption, making it an eco-friendly choice without compromising on performance. The MINI160 features excellent arc-striking capabilities and is engineered to operate effectively even in challenging environments, ensuring a stable arc with minimal spatter. The high-quality welding it delivers results in a deep molten pool and a reliable finish, making it ideal for a wide range of welding applications. Additionally, the machine is equipped with self-protection mechanisms against over voltage and over current, enhancing its durability and safety during operation.
Specifications
| Attribute | Details |
|---|---|
| Input Power Voltage | AC220V±15% |
| Input Voltage Frequency | 50/60HZ |
| Rated Input Power Capacity | 4.7KVA |
| Rated Input Current | 21.5A |
| No-load Voltage | 56V |
| Output Current Range | 30-160A |
| Rated Output Voltage | 25.8V |
| Duty Cycle | 60% |
| No-load Consumption | 40W |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Insulation Class | B |
| Protection Class | IP21 |
| Weight | 5.5KG |
| Dimension | 289×133×216mm |
