INVERTER
Inquire NowDescription
INVERTER is a state-of-the-art electronic device utilizing inverter base technology designed to control traditional electric pumps, including surface, vertical, and submersible types. This innovative technology allows for modulation of the motor’s input current frequency (Hz), enabling precise speed adjustments (rpm) based on the system’s water demand. Key benefits include:
- Motor output current control
- Constant pressure maintained through motor pump speed regulation
- Energy savings due to reduced pump absorption
- Soft-start functions that minimize hammering during operation
- Protection against dry running with automatic reset features
- Leakage monitoring and anti-seize functionality
- Capability to connect multiple drives to a booster, accommodating up to 8 pumps
- Advanced configuration options through an extended menu

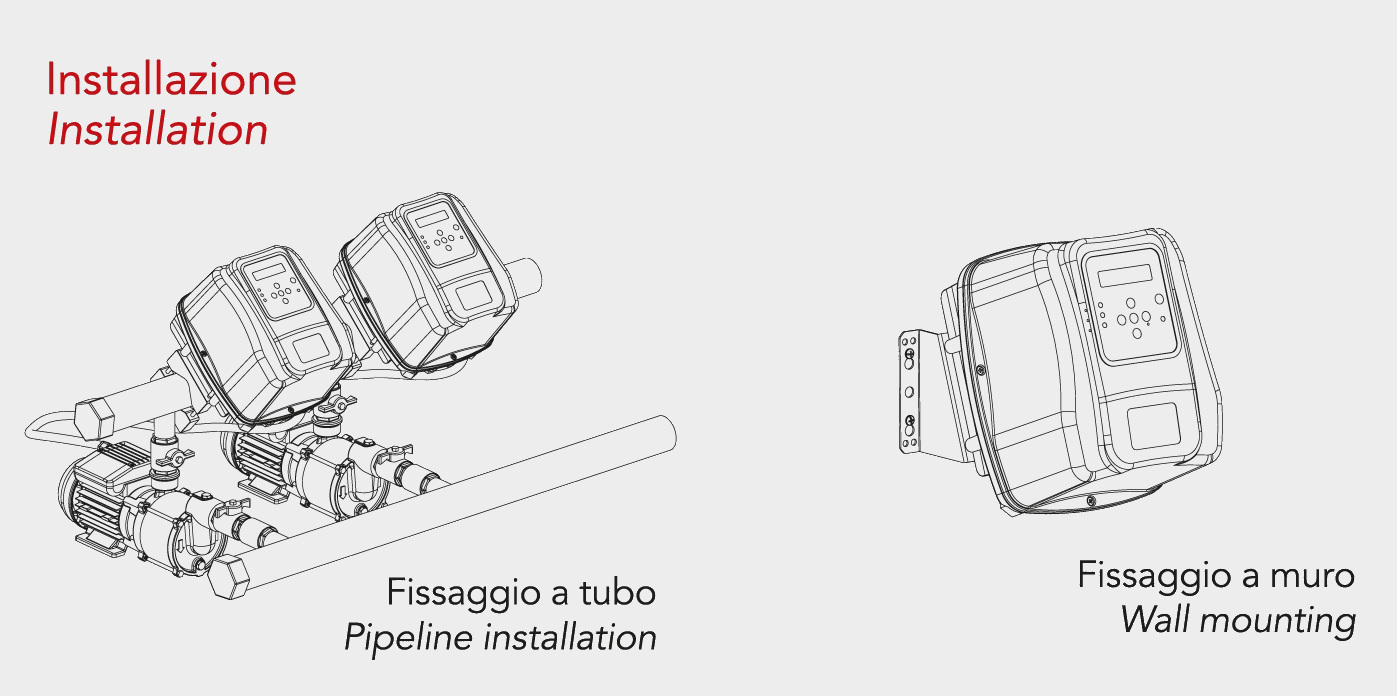

- Installation of a pressure tank is necessary for optimal performance
APPLICATIONS:
INVERTER WITH STEADY PRESSURE
PROTECTION AGAINST DRY RUNNING

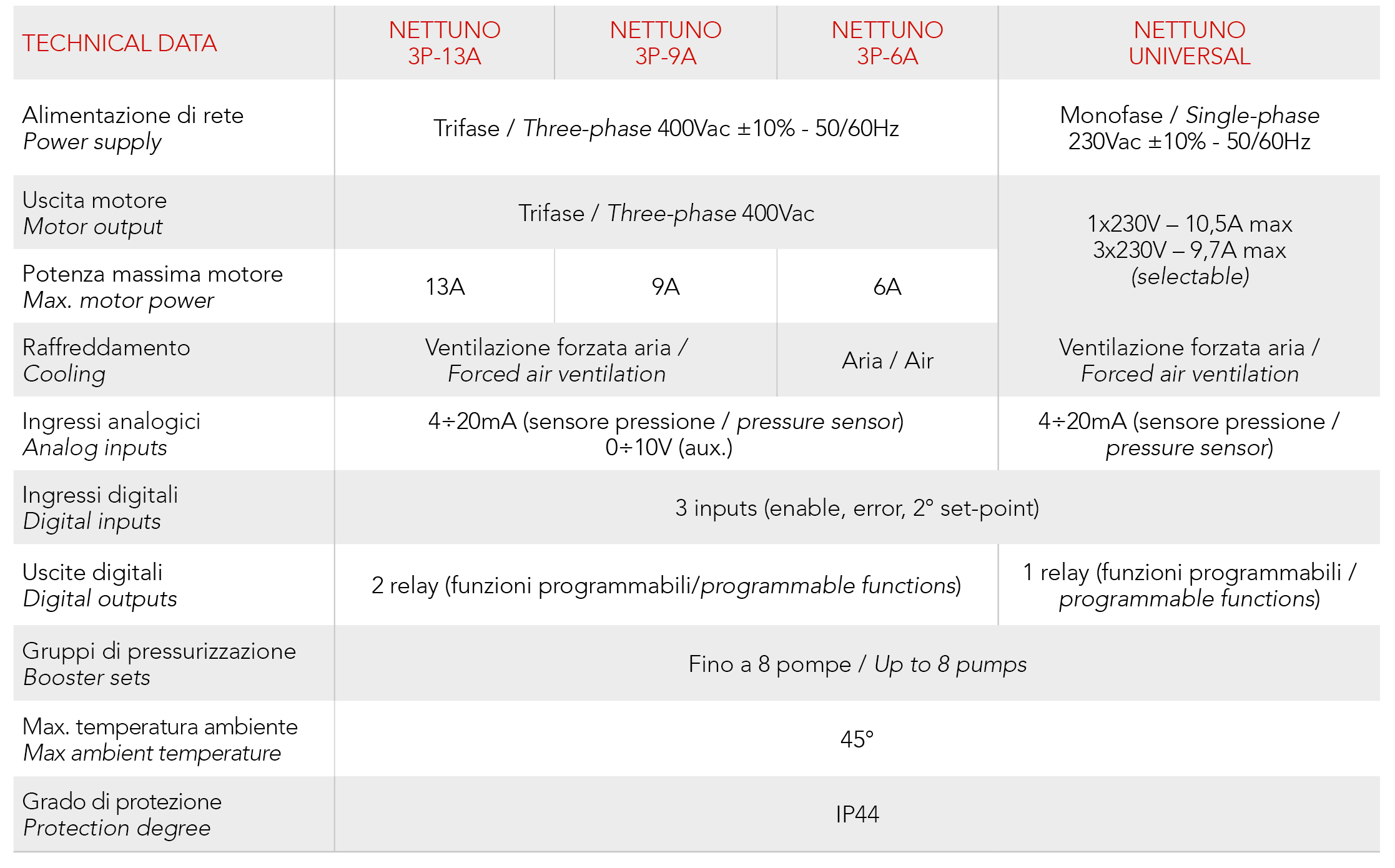

Specifications
| Feature | Description |
|---|---|
| Technology | Inverter base technology |
| Motor Control | Modulates frequency for speed adjustment |
| Energy Efficiency | Reduced pump absorption |
| Dry Running Protection | Automatic reset in case of dry running |
| Leakage Monitoring | Yes |
| Multi-Drive Capability | Connect up to 8 pumps |
| Pressure Tank Requirement | Necessary for installation |
