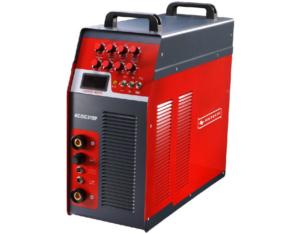

Inverter ACDC TIG Pulse Welding Machine ACDC315P
Inquire NowDescription
The Inverter ACDC TIG Pulse Welding Machine ACDC315P is designed for high-performance welding with an emphasis on precision and stability. Featuring a high-quality square wave current, this machine ensures speedy current transformation and a stable arc without the need for high-frequency assistance. Its concentrated heat and solid arc make it particularly effective for wire filling welding, making it an excellent choice for applications in the bicycle industry. Users can expect nice welding results with this powerful yet efficient tool, tailored for both novice and experienced welders alike.
Specifications
| Attribute | Details |
|---|---|
| Input Power Voltage | AC380V±15% |
| Input Voltage Frequency | 50/60HZ |
| Rated Input Current | 13.6A |
| Rated Input Power Capacity | 9KVA |
| Output Current Range | 20-315A |
| No-load Voltage | 56V |
| Rated Output Voltage | 22.6V |
| Pre-flow Time | 0-2S |
| Clear Width | 20-80% |
| Slope-down Time | 0-5S |
| Pulse Width | 10-90% |
| Pulse Current Range | 20-315A |
| Pulse Frequency | 1-70Hz |
| Post-gas Time | 2-10S |
| Remote Control | Foot/Trigger |
| Arc-striking | HF |
| Efficiency | 85% |
| Duty Cycle | 60% |
| Power Factor | 0.93 |
| Insulation Class | B |
| Protection Class | IP21 |
| Weight | 32KG |
| Dimension | 565×235×512mm |
Additional Information
For optimal performance, ensure proper setup and maintenance of the machine. It is recommended to refer to the user manual for detailed usage tips and care instructions.
