INVERTER DC PULSE TIG WELDER
Inquire NowDescription

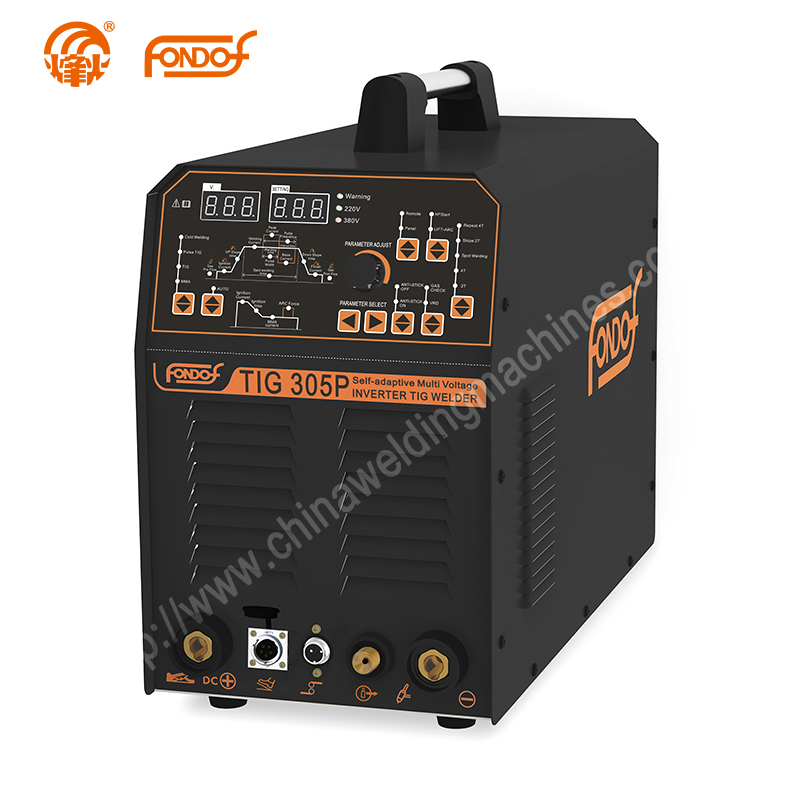

The Inverter DC Pulse TIG Welder is a versatile and high-performance welding machine designed to cater to various welding applications. Capable of operating at multi-voltage levels of 1PH and 3PH ranging from 160V to 460V, this welder features a special dustproof structure, making it suitable for use in challenging environments. It is equipped with an IGBT inverter that ensures instant arc ignition speed, allowing for precise welding on thin plates, including 0.3mm and 0.5mm thicknesses. Whether performing TIG, MMA, Pulse TIG, or Cold welding, this professional-grade machine offers adjustable arc start and arc force settings, making it adaptable to different materials, including cellulose electrodes.
Specifications
| Parameters | TIG 305P | |
|---|---|---|
| Rated Input Voltage(V) | 1-220V | 3-380V |
| Power Frequency(Hz) | 50/60 | |
| Rated Input Current(A) | 25(TIG) 36(MMA) | 16(TIG) 21(MMA) |
| Rated Input Power(KVA) | 5.5(TIG) 7.9(MMA) | 10.5(TIG) 13.8(MMA) |
| Rated No-load Voltage(V) | 69 | |
| Rated Duty Cycle%(40℃) | 100 | 60 |
| Welding Current(A) | TIG: 15～180 MMA: 15～180 | TIG: 15～300 MMA: 15～300 |
| Pulse Frequency(Hz)/ Cool welding interval time(S) | 0.2～10/0.1～5 | |
| Arc start Current(A) MMA | 0-100 | |
| ARC Forced Current(A) MMA | 0-50 | |
| Arc start Time(S) | 0.1-5 | |
| Protection Class | IP21S | |
| Dimensions(mm) | 530*250*430 | |
| Weight(kg) | 17.2 | |
Additional Information
For optimal performance and longevity, it is recommended to regularly maintain the welder, keeping it free from dust and debris. Ensure to follow safety guidelines when operating the machine, and consider using appropriate protective gear while welding.
