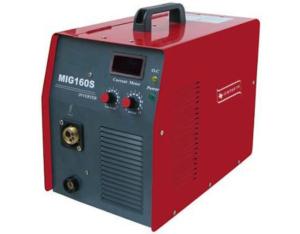

Inverter Gas Shielded Welding Machine MIG160S
Inquire NowDescription
The Inverter Gas Shielded Welding Machine MIG160S is a powerful and efficient tool designed for welding metal plates with a thickness of 0.8mm and above. Engineered for high performance, this machine offers low operational costs while enhancing welding quality. With self-compensation for voltage fluctuations, it ensures stable current delivery, minimizing spatter and producing a deep molten pool that results in beautiful welding seams. Ideal for both professional and home use, the MIG160S is perfect for various welding applications.
Specifications
| Attribute | Details |
|---|---|
| Input Power Voltage | AC220V±15% |
| Input Voltage Frequency | 50/60HZ |
| Rated Input Power Capacity | 4.4KVA |
| No-load Voltage | 42V |
| Rated Input Current | 20A |
| Output Current Range | 50-160A |
| Rated Output Voltage | 22V |
| Duty Cycle | 60% |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Insulation Class | B |
| Protection Class | IP21 |
| Feeding Speed | 2.5-13m/min |
| Type of Wire Feeder | INSIDE |
| Diameter of Coil | 200mm |
| Post-gas Time | 2±0.5S |
| Earth Cable | ≥2.5mm² |
| Thickness | Above 0.8mm |
| Diameter of Wire | 0.6/0.8mm |
| Weight | 18KG |
| Dimension | 432×256×320mm |
Additional Information
This welding machine is designed for professionals looking for reliability and superior performance. It is recommended to maintain the machine regularly to ensure optimal functionality. Always use appropriate safety gear while operating the unit.
