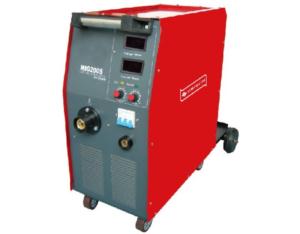

Inverter Gas Shielded Welding Machine MIG200S
Inquire NowDescription
The Inverter Gas Shielded Welding Machine MIG200S is a powerful and efficient welding solution designed for professionals and enthusiasts alike. It is ideal for welding metal plates with a thickness exceeding 0.8mm, ensuring high-quality results with minimal spatter. This machine features self-compensation for voltage fluctuations, providing a stable current for consistent performance. With its deep molten pool and beautiful welding seams, the MIG200S stands out in both functionality and finish, making it a valuable addition to any workshop.
Specifications
| Attribute | Details |
|---|---|
| Input Power Voltage | AC220V±15% |
| Input Voltage Frequency | 50/60HZ |
| Rated Input Power Capacity | 6KVA |
| No-load Voltage | 42V |
| Rated Input Current | 27.6A |
| Output Current Range | 50-200A |
| Rated Output Voltage | 24V |
| Duty Cycle | 60% |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Insulation Class | B |
| Protection Class | IP21 |
| Feeding Speed | 2.5-13m/min |
| Type of Wire Feeder | INSIDE |
| Diameter of Coil | 300mm |
| Post-gas Time | 2±0.5S |
| Earth Cable | ≥2.5mm² |
| Thickness | Above 0.8mm |
| Diameter of Wire | 0.8/1.0mm |
| Weight | 33KG |
| Dimension | 604×298×529mm |
