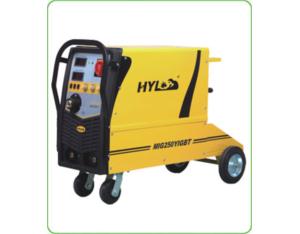

Inverter MIG/MAG Welding Machine MIG250Y
Inquire NowDescription
The Inverter MIG/MAG Welding Machine MIG250Y is a powerful and versatile tool designed for professional welders and DIY enthusiasts alike. This advanced welding machine excels in gas shielded arc welding and flux-cored wire welding, making it suitable for a wide range of applications including automotive repairs, motorcycle parts, and the fabrication of steel and wood furniture. With its advanced inverter technology and compact design, the MIG250Y not only reduces physical footprint but also enhances energy efficiency.
Equipped with a precise control system using Pulse Width Modulation (PWM), this machine ensures stable operation and excellent welding performance. The innovative waveform control technology allows for customizable arc characteristics, providing soft arcs and increasing fusion depth while minimizing spatter. Additionally, features such as automatic wire feeding speed reduction during arc starting contribute to higher success rates in welding tasks.
Safety and reliability are paramount in the design of the MIG250Y, which includes automatic protections against overcurrent, overheating, and overloading, ensuring long-term durability for users.
Specifications
| Attribute | Details |
|---|---|
| Item | MIG/MMA-250Y |
| Input Power Voltage | 380±10%V 50/60Hz |
| Rated Input Power Capacity | MMA: 8.0 KVA, MIG: 9.2 KVA |
| Rated Output Current | MMA: 12 A, MIG: 14 A |
| Output Current Range | MMA: 10-220 A, MIG: 50-250 A |
| Rated Output Voltage | MMA: 20-29 V, MIG: 15-29 V |
| Duty Cycle | 60% |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Weight | 21 KG |
| Measurements | 1050 x 500 x 750 mm |
| Insulation Class | F |
| Protection Class | IP21S |
| Adaptable Plate Thickness | ≥0.8 mm |
| Post-flow | 1 second |
| Type of Wire Feeder | Inside |
| Diameter of Coil | 270 mm |
| Welding Wire Diameter | 0.8-1.0 mm |
Additional Information
- Scope of Application: Suitable for welding low carbon steel, high strength steel, and ordinary steel.
- Automatic protection features ensure safety and enhance machine durability.
