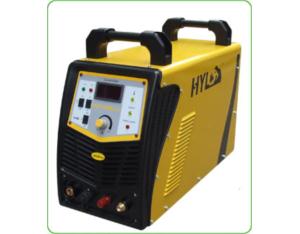

Inverter MIG/MAG Welding Machine MIG315Y
Inquire NowDescription
The Inverter MIG/MAG Welding Machine MIG315Y is a versatile welding solution designed for both professionals and DIY enthusiasts. It operates through gas shielded arc welding and flux-cored wire welding, making it ideal for a variety of applications, including automotive repairs, motorcycle part fabrication, steel and wood furniture construction, and light steel work. This machine is capable of welding low carbon steel, high-strength steel, and ordinary steel, ensuring it meets the diverse needs of modern welding projects.
Advanced inverter technology allows for high-frequency power conversion, significantly reducing the machine’s size and weight, while enhancing energy efficiency. The precise control system utilizes a Pulse Width Modulator (PWM) with closed-loop feedback to maintain stability during operation. This results in excellent welding performance, characterized by optimal arc control, reduced spatter, and improved fusion depth. An automatic wire feeding speed reduction feature enhances the success rate of arc initiation, making it user-friendly.
Safety and durability are paramount, with built-in protection against overcurrent, overheating, and overloading, ensuring reliability in demanding environments.
Specifications
| Item | MIG/MMA-315Y |
|---|---|
| Input Power Voltage (V, Hz) | 380±10% V 50/60Hz |
| Rated Input Power Capacity (KVA) | MMA: 9.5 MIG: 11 |
| Rated Output Current (A) | MMA: 14 MIG: 18 |
| Output Current Range (A) | MMA: 10-250 MIG: 50-315 |
| Rated Output Voltage (V) | MMA: 20-30 MIG: 15-30 |
| Duty Cycle (%) | 60 |
| Efficiency (%) | 85 |
| Power Factor (COSφ) | 0.93 |
| Weight (KG) | 23 |
| Measurement (mm) | 1050X500X750 |
| Insulation Class | F |
| Protection Class | IP21S |
| Adaptable Plate Thickness | ≥0.8 |
| Post-flow (S) | 1 |
| Type of Wire Feeder | Inside |
| Diameter of Coil (mm) | 270 |
| Welding Wire (mm) | 0.8-1.0 |
