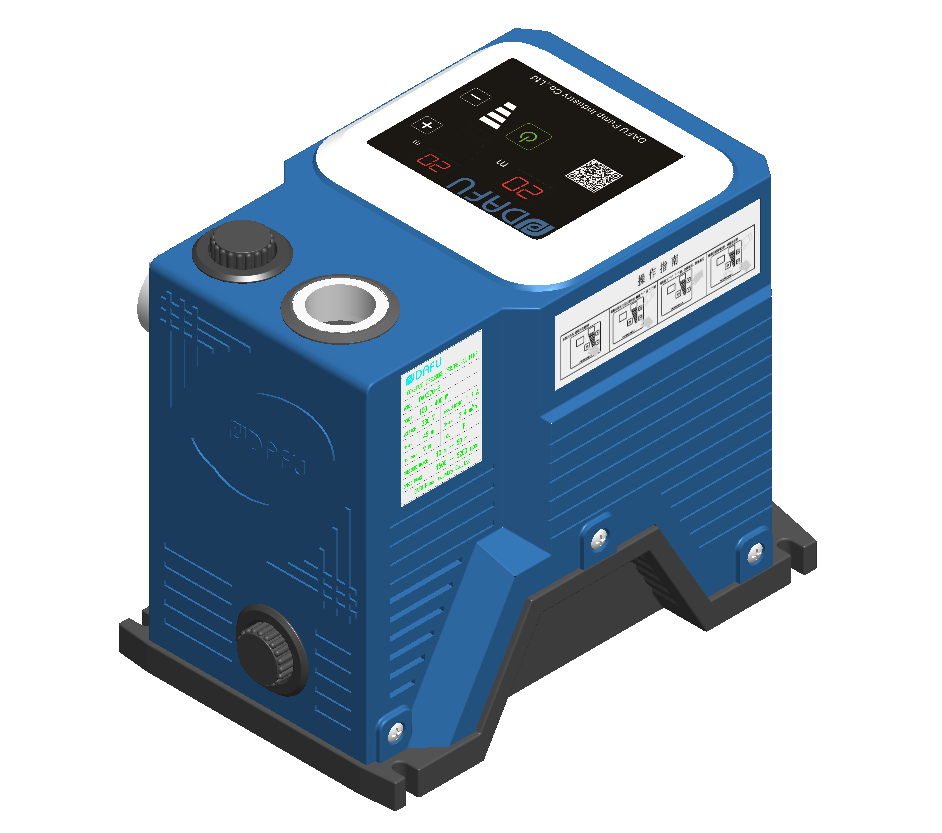

Inverter pump DAX-E
Inquire NowDescription
The DAX-E Inverter Pump is engineered for high performance and low noise operation, making it an ideal choice for heating and air-conditioning systems. This versatile pump is constructed with either bronze or stainless steel housings, allowing it to efficiently circulate liquids in various applications, including underfloor heating systems, air energy hot water circulation systems, and solar hot water circulation systems. Designed with reliability at its core, the DAX-E ensures optimal performance in diverse environments.
Specifications
| Attribute | Details |
|---|---|
| Application Fields | Heating and air-conditioning systems, hot-water service systems |
| Liquid Temperature | +2℃ to +110℃ |
| Maximum Ambient Temperature | +40℃ |
| Maximum System Pressure | 10 bar |
| Protection Level | IP44 |
| Mains Connection | 220V/60Hz, 127V/60Hz |
| Insulation Class | H |
| Pumped Liquid Characteristics | Clean, free from solids and mineral oils, non-toxic, chemically neutral |
| Installation | Motor shaft must be kept in horizontal direction |
| pH Range | 6.5 to 8.5 |
Additional Information
- Ensure proper installation for optimal performance.
- Regular maintenance is recommended to extend the lifespan of the pump.
