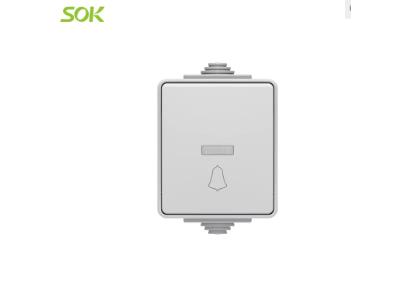

IP65 Door Bell Light Switch with LED Surface Mounting(Screw-less terminal)
Inquire NowDescription
The IP65 Door Bell Light Switch with LED Surface Mounting is designed for both durability and convenience. With an impressive IP65 rating, this switch is waterproof and resistant to shock, dirt, dust, and solvents. It features a child-proof system to prevent electric shocks, making it an ideal choice for family homes. The innovative screw-less connection technology allows for quick removal and easy replacement, while its modular design ensures simple installation for both indoor and outdoor use. Available in light-gray, this switch combines functionality with a sleek appearance, making it suitable for any environment.
Key advantages include:
- Dust-proof and water-resistant, perfect for outdoor use.
- Child-safe design to protect against electric shocks.
- Quick lock structure for easy installation and maintenance.
- Compatible with various wire sizes and types.
Specifications
| Main | |
|---|---|
| Type | Wall Switch |
| Series | M65 Series |
| Factory item | M65Q/L1/LB/LED |
| Brand | SOK |
| Color | Light-Gray |
| Complementary | |
| Device mounting | Surface mounting |
| Switch function | 1 way |
| Rated current | 10AX |
| Rated voltage | 250V~ |
| Network frequency | 50/60Hz |
| Actuator | Rocker |
| Local signaling | LED (white) |
| Indicator type | On-Off |
| Surface finish | Button-Glossy, Enclosure-Matt |
| Fixing mode | Screw-less terminal |
| Material | TPE, PP, PC-UV |
| Dimension (including rubber plug) | 90.4 x 54.2 x 64 mm |
| Wire Capacity | 1.5-2.5mm² Rigid |
| Environment | |
| Certification | TUV, CE, RoHS |
| IP | IP65 |
| Life time | |
| Test lifetime | At least 40,000 times |
| Warranty | 2 years |
Additional Information
The product comes packaged in a nylon bag and can be bulk packed in boxes. It has a minimum order quantity (MOQ) of 3000 pieces and offers flexible payment terms including TT and L/C. The estimated product readiness time is between 25 to 45 days, with delivery options available by sea or air.
