IP66 DC 10A 16A 20A 25A 32A Waterproof Weatherproof Solar PV AC/DC Isolator Switch
Contact Supplier
Recommended by MERHEIN
Description
An IP66 DC Isolator Switch is an essential electrical component designed to safely isolate a direct current (DC) electrical circuit from the rest of the system. Engineered to endure harsh weather conditions, this switch boasts an IP66 rating, ensuring it is dust-tight and protected against high-pressure water jets from any direction. It is important to note that the “NW” designation indicates it is non-watertight and cannot be submerged in water.
Typically employed in outdoor setups, such as solar panel systems and electric vehicle charging stations, the isolator facilitates the safe disconnection of circuits for maintenance or emergency situations without disrupting the entire system. Additionally, it provides protection against electrical shocks and fire hazards by breaking the electrical connection when activated.
This isolator consists of a switch body, a handle, and terminals for circuit wire connections. It may include features like a lockable handle or a visual indicator for switch position. The device is usually wall-mounted and can be operated manually or remotely via a control panel.
Specifications
| Product Name | DC Isolator Switch |
|---|---|
| Model Code | MDIS-40MDA |
| Rated Operational Voltage | 500V, 600V, 800V, 1000V, 1200V |
| Rated Current | 10A, 16A, 20A, 25A, 32A |
| Mechanical Cycle | 15,000 |
| Electrical Cycle | 1,000 |
| Number of DC Poles | 2 or 4 |
| Ingress Protection | IP66NW enclosure/IP20 switch body |
| Polarity | No Polarity |
| Working Temperature | -40°C to +85°C |
| Standard | IEC60947-3, AS60947.3 |
| Certificate | TUV / CE / CB / CCC / TUV Australia approval |
Additional Information
For optimal performance, ensure the isolator switch is installed in accordance with electrical safety standards and local regulations. Regular maintenance is recommended to check functionality and ensure safety compliance. The switch can be operated manually, or optionally, it can be integrated into a remote control system for convenience.

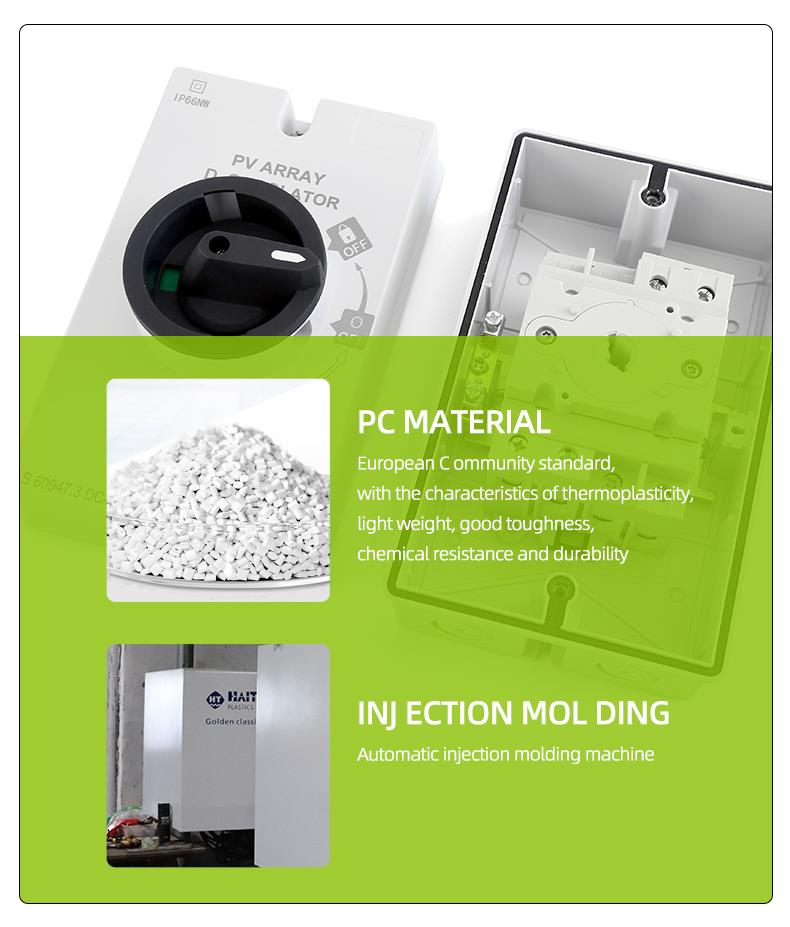

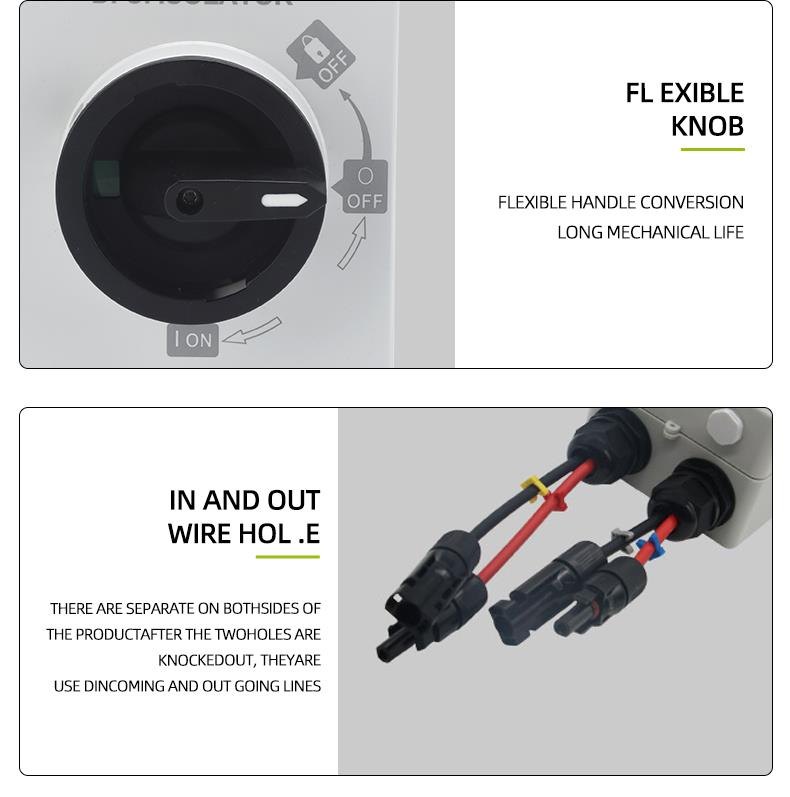

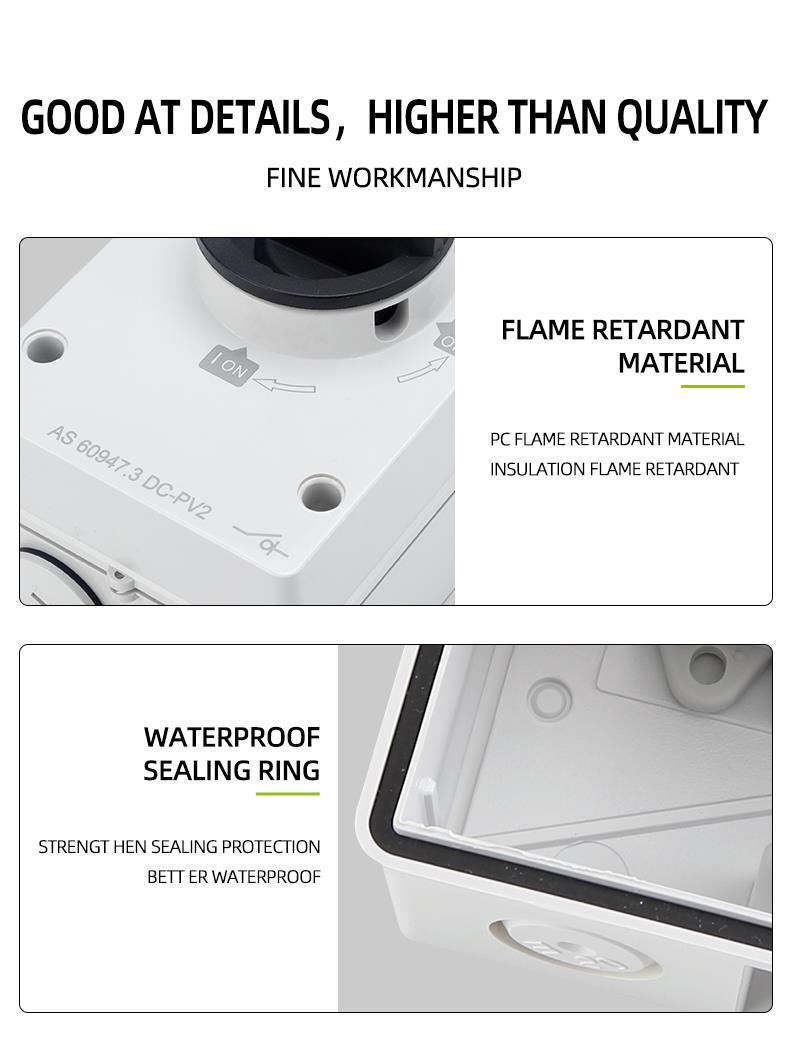

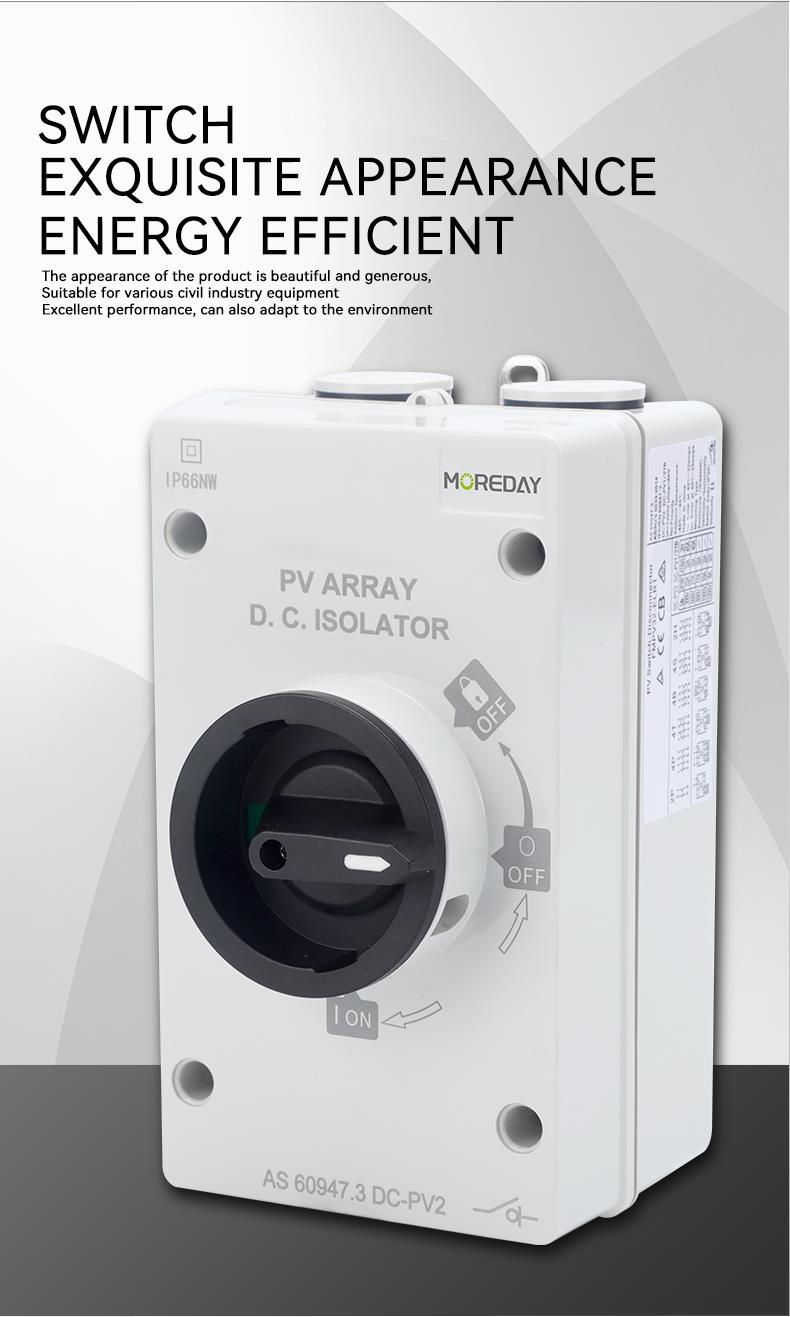

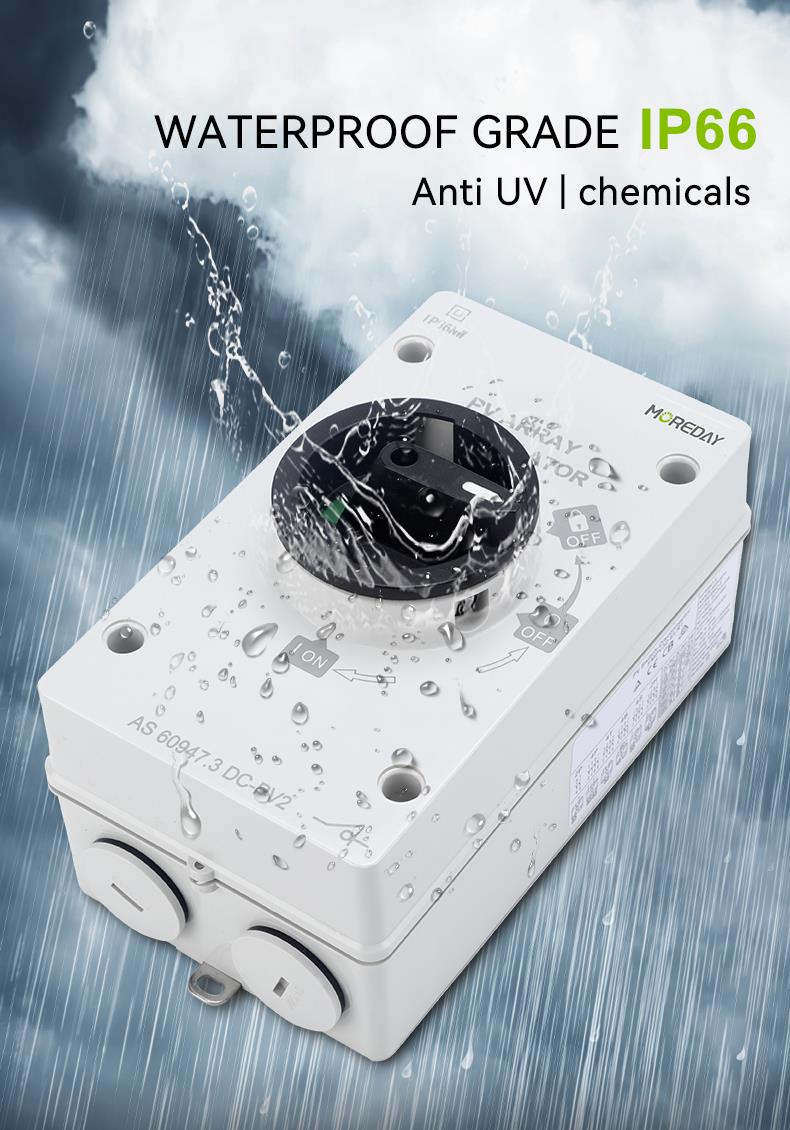

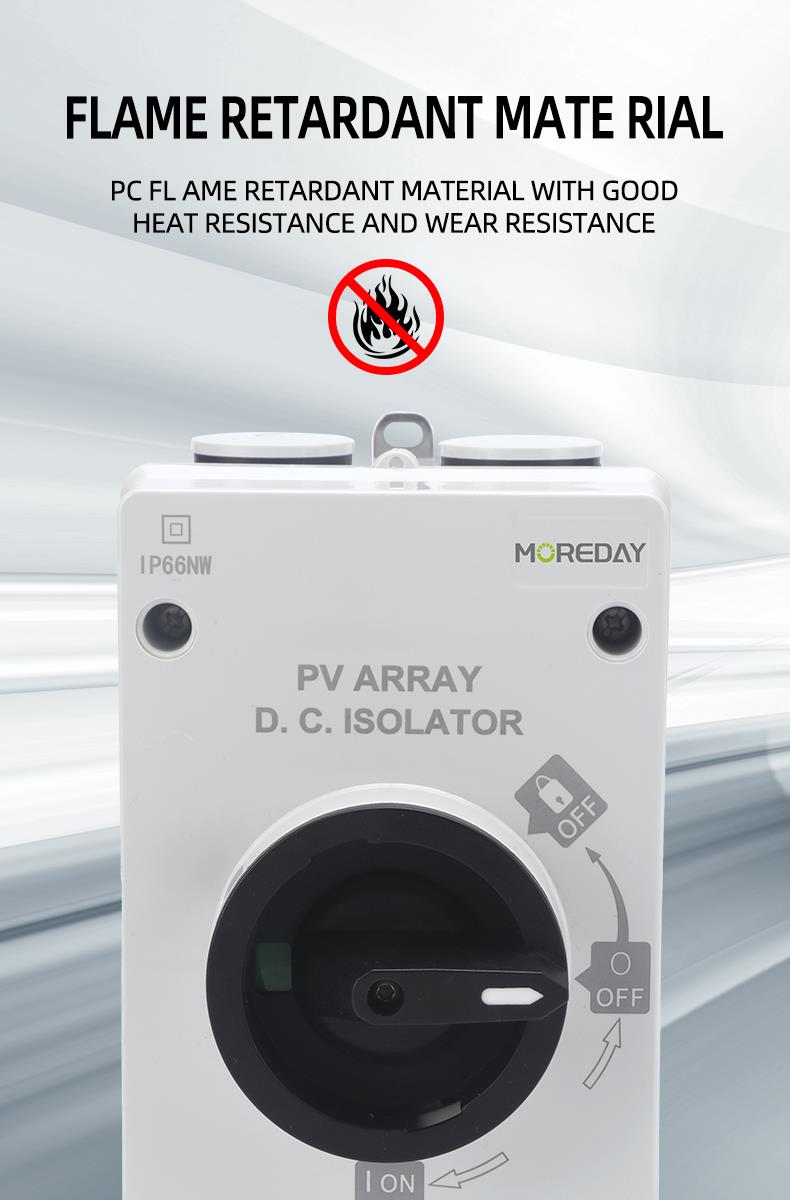

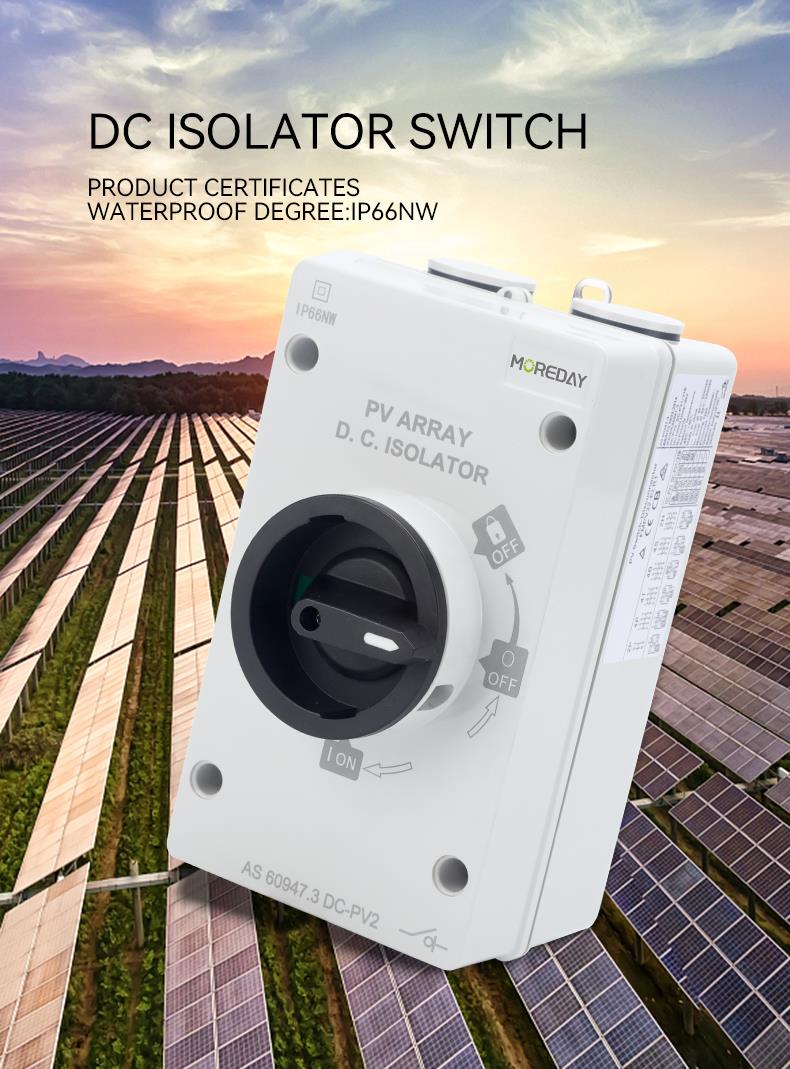

Detailed Photos
