IP66 DC 10A 16A 20A 25A 32A Waterproof Weatherproof Solar PV AC/DC Isolator Switch
Inquire NowDescription

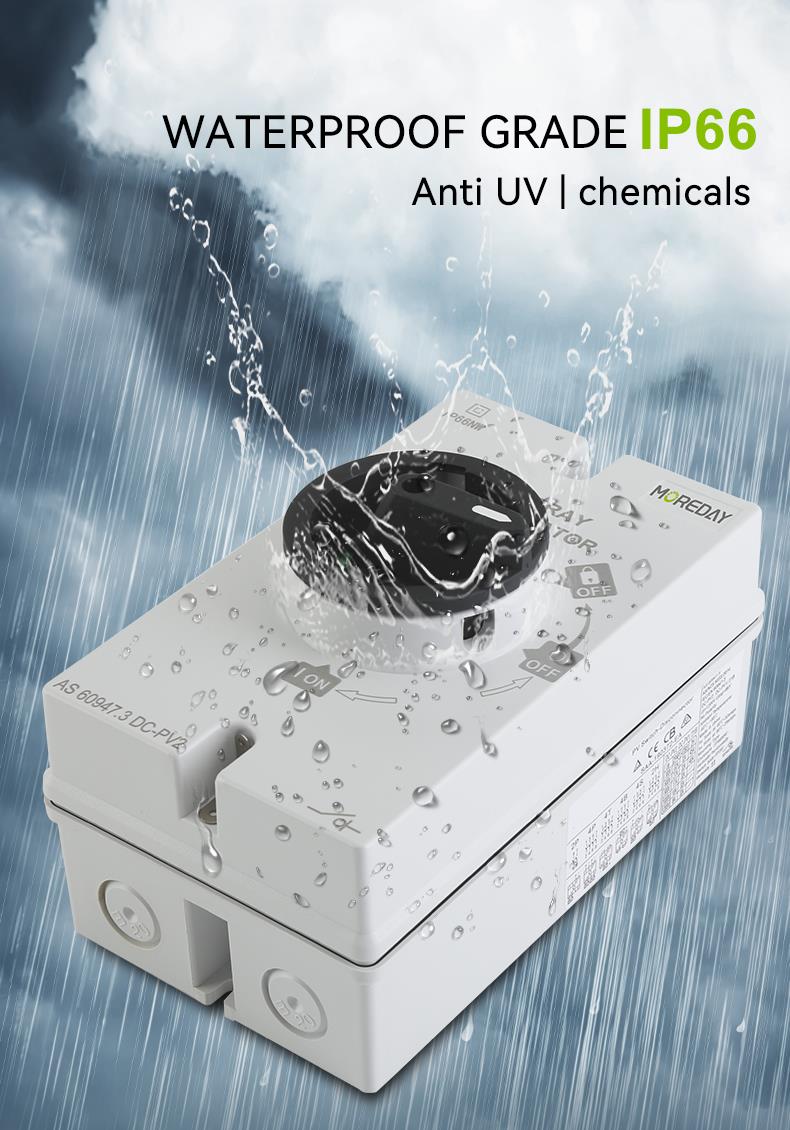

An IP66 DC isolator is an essential electrical switch designed to safely isolate direct current (DC) electrical circuits from the system. With a robust IP66 rating, it is completely dust-tight and can withstand high-pressure water jets from any direction, making it ideal for outdoor installations such as solar panel systems and electric vehicle charging stations. The term “NW” indicates that it is not fully watertight, meaning it should not be submerged in water.
This isolator ensures safe disconnection of the circuit for maintenance or emergency situations without disrupting the overall system. It enhances safety by breaking the electrical connection when activated, thereby protecting against electrical shocks and fire hazards. The switch typically includes a body, handle, and terminals for circuit connections, with optional features like a lockable handle and a visual indicator for switch position. It can be mounted on walls or other surfaces and operated manually or via a control panel.
Specifications
| Product Name | DC Isolator Switch |
|---|---|
| Model Code | MDIS-40MDA |
| Rated Operational Voltage | 500V, 600V, 800V, 1000V, 1200V |
| Rated Current | 10A, 16A, 20A, 25A, 32A |
| Mechanical Cycle | 15000 |
| Electrical Cycle | 1000 |
| Number of DC Poles | 2 or 4 |
| Ingress Protection | IP66NW enclosure/IP20 switch body |
| Polarity | No Polarity |
| Working Temperature | -40°C to +85°C |
| Standard | IEC60947-3, AS60947.3 |
| Certificate | TUV / CE / CB / CCC / TUV Australia approval |
Additional Information
This isolator switch is crucial for ensuring safety and reliability in solar energy systems and electric vehicle charging setups. It is highly durable and can operate effectively across a wide range of temperatures, making it suitable for various environmental conditions.

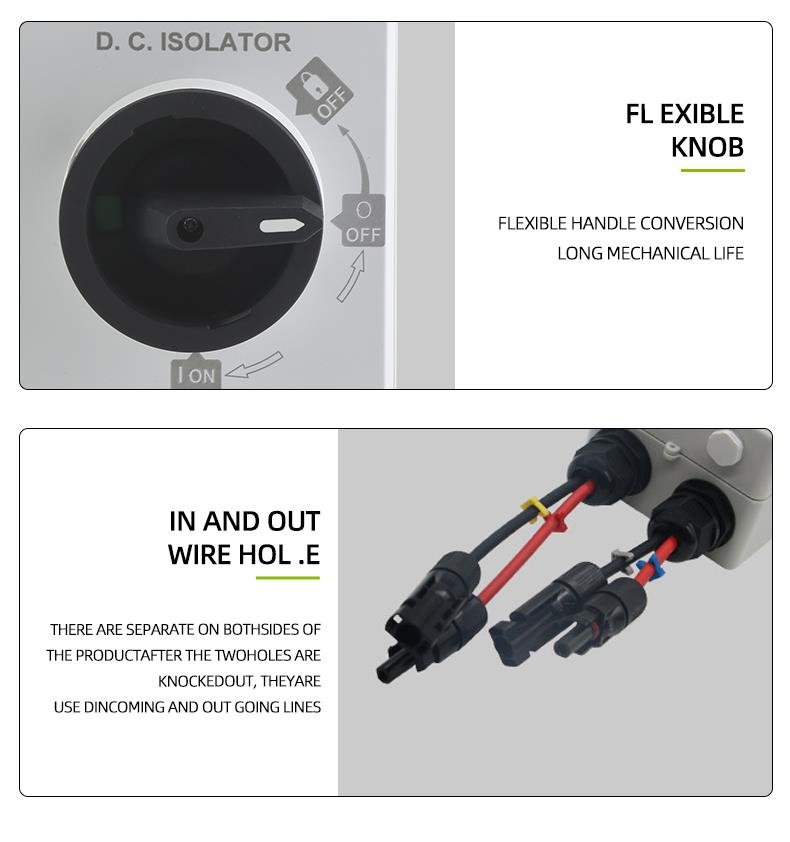

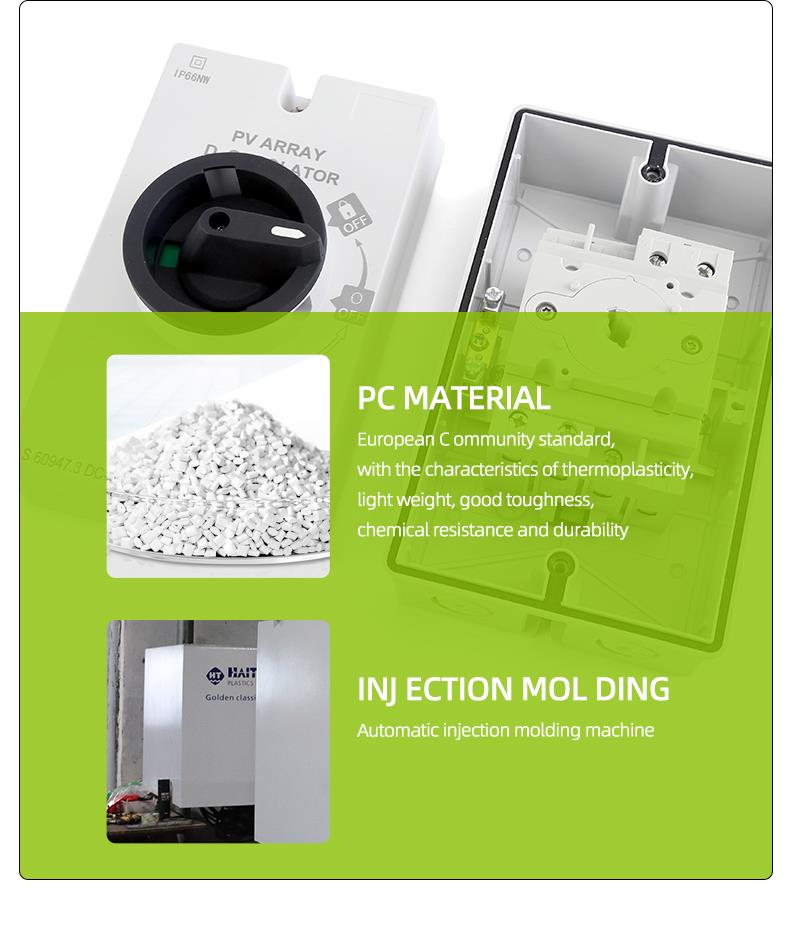

Detailed Photos
