IP66 Terminal Box
Inquire NowDescription

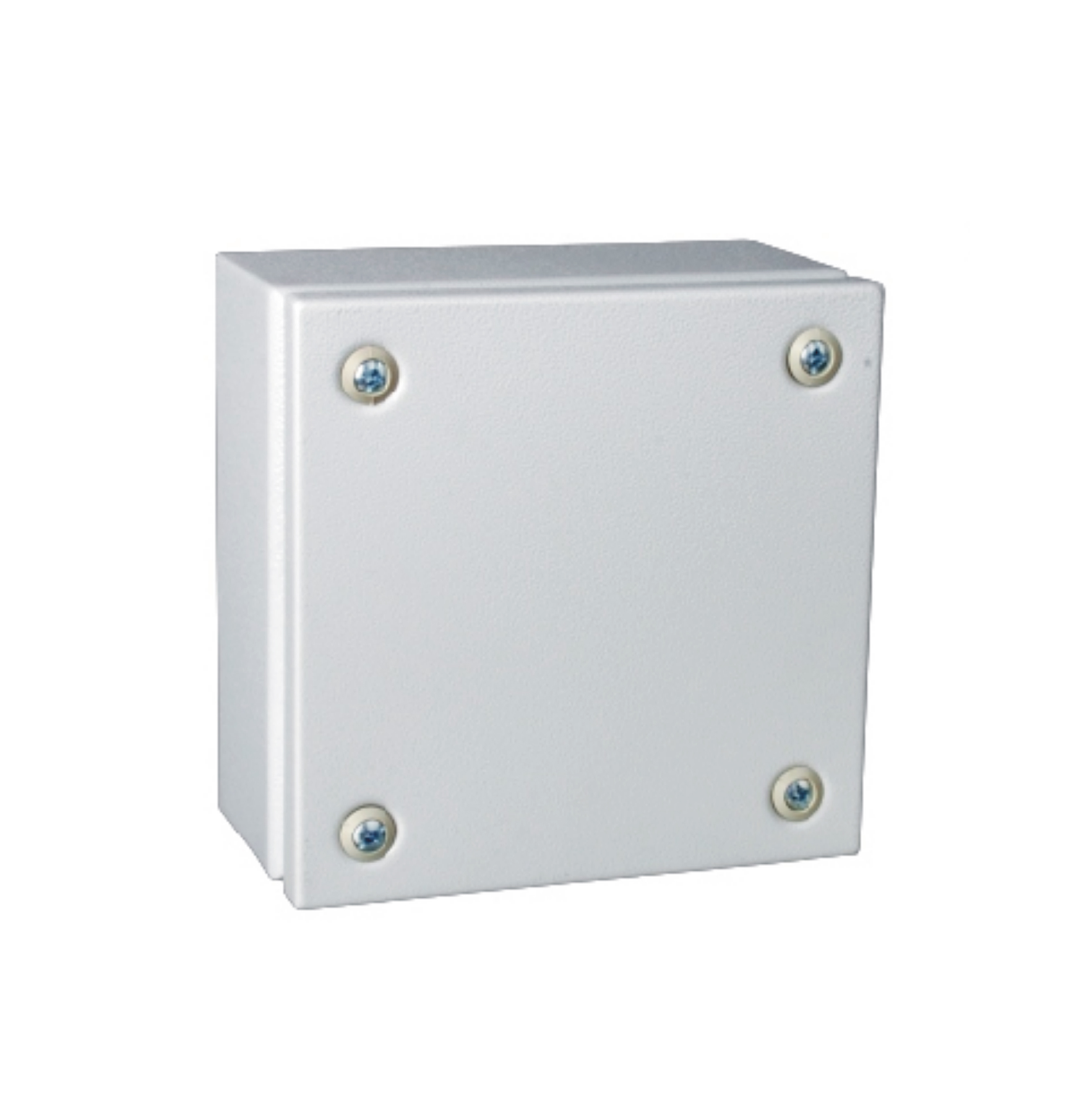

The IP66 Terminal Box is a robust solution designed for industrial applications, featuring a durable construction that ensures reliable protection for electrical connections. Crafted from mild steel, this terminal box offers an unparalleled protection degree of IP66, complying with the IEC 60529 standard, making it suitable for harsh environments.

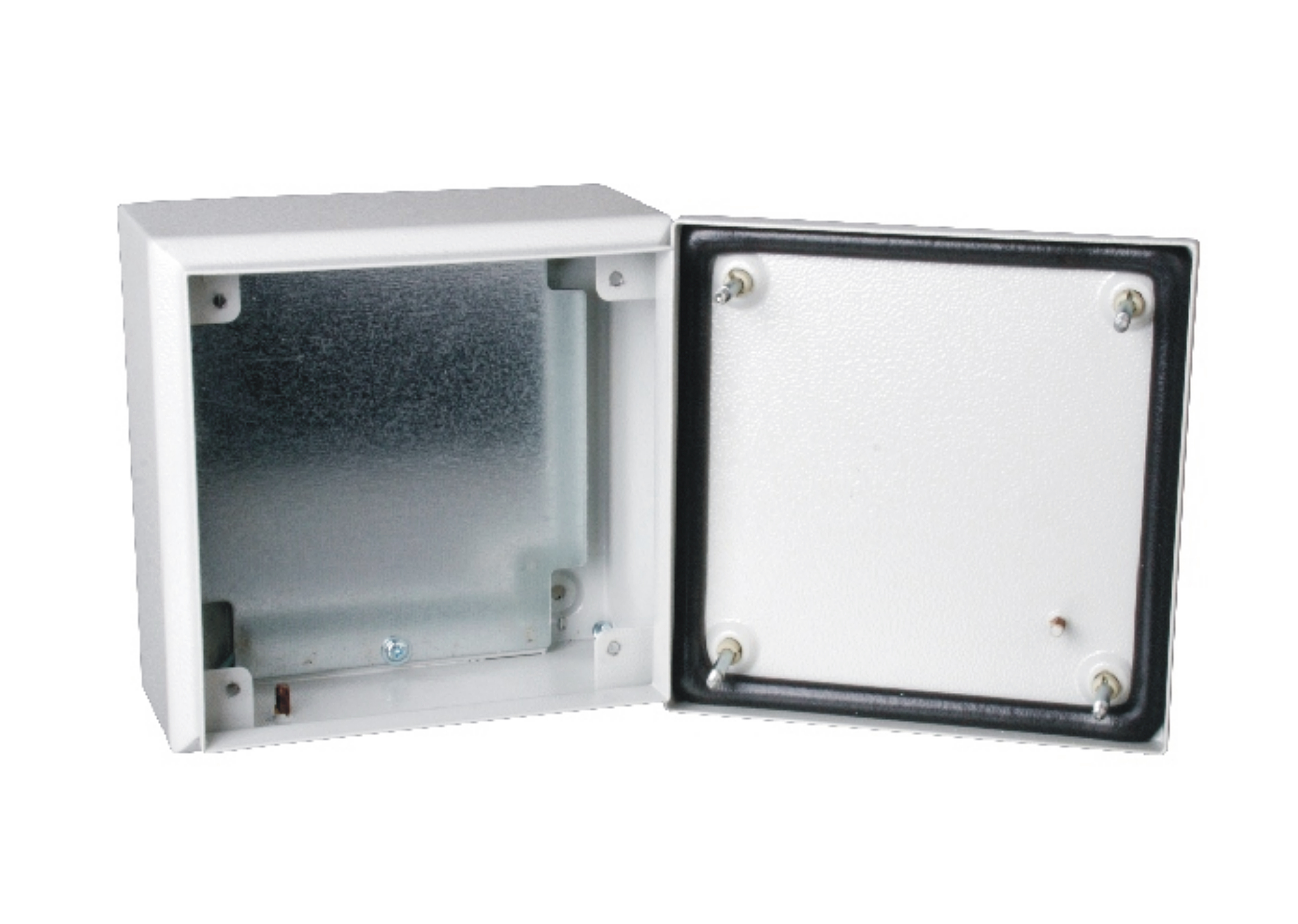

Equipped with 4 captive screws on the door, it provides secure access while maintaining low maintenance requirements. The body has a thickness of 1.2mm, complemented by a galvanized steel mounting plate with a thickness of 2.0mm, ensuring superior stability and longevity. The box is finished in RAL7035 textured color, providing an aesthetically pleasing look that integrates well into any industrial setting.
Additional features include a foamed polyurethane gasket around all four sides for excellent sealing and earthing studs fitted on both the door and body, enhancing safety and performance.
Several sizes are available for versatility, ranging from H150xW150xD80(mm) to H400xW200xD120(mm), with the option for customization based on client requirements.
Specifications
| Attribute | Details |
|---|---|
| Protection Degree | IP66 |
| Standard | Comply with IEC 60529 |
| Material | Body – Mild Steel, Mounting Plate – Galvanized Steel |
| Sheet Thickness | Body – 1.2mm, Mounting Plate – 2.0mm |
| Color | RAL7035 Textured |
| Dimensions | H250 x W150 x D80 (mm) |
Additional Information
- Foamed polyurethane gasket around all four sides for enhanced sealing.
- Earthing studs fitted on door and body for improved safety.
- 4 captive screws on door for secure access.
- Available in multiple sizes and customizable options according to client specifications.
