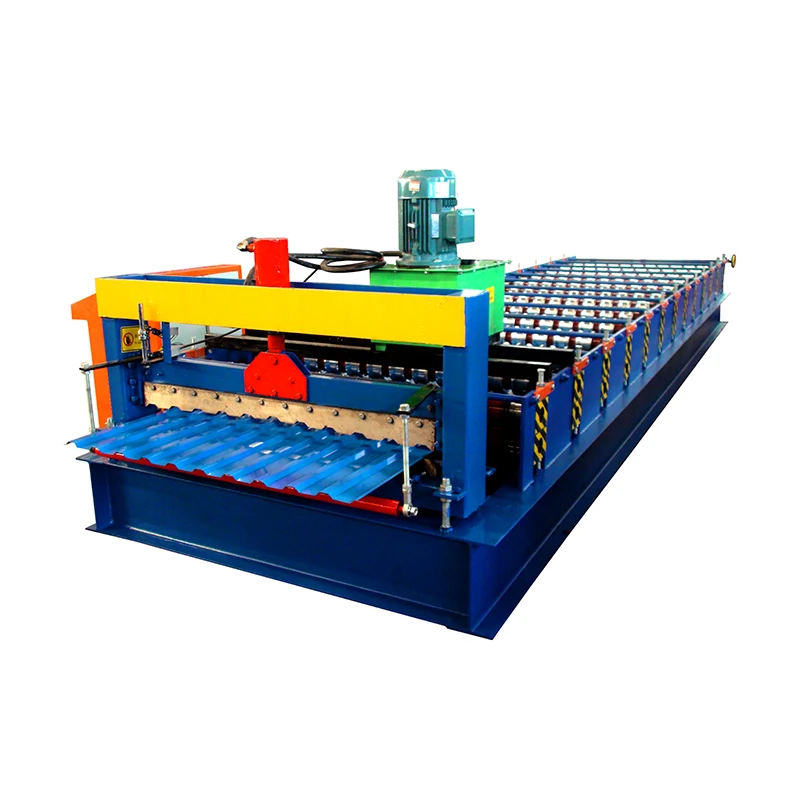

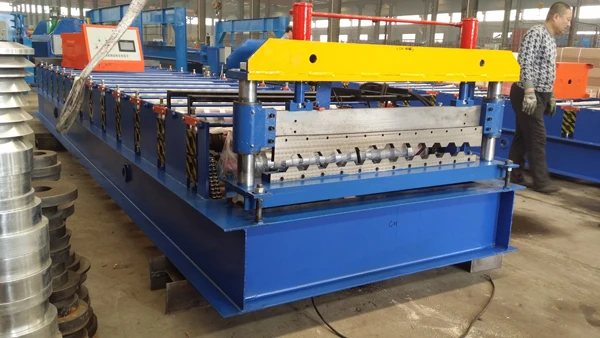

Iron Roofing Sheet Single Layer Roll Forming Making Machine for Price
Inquire Now#### **Description**

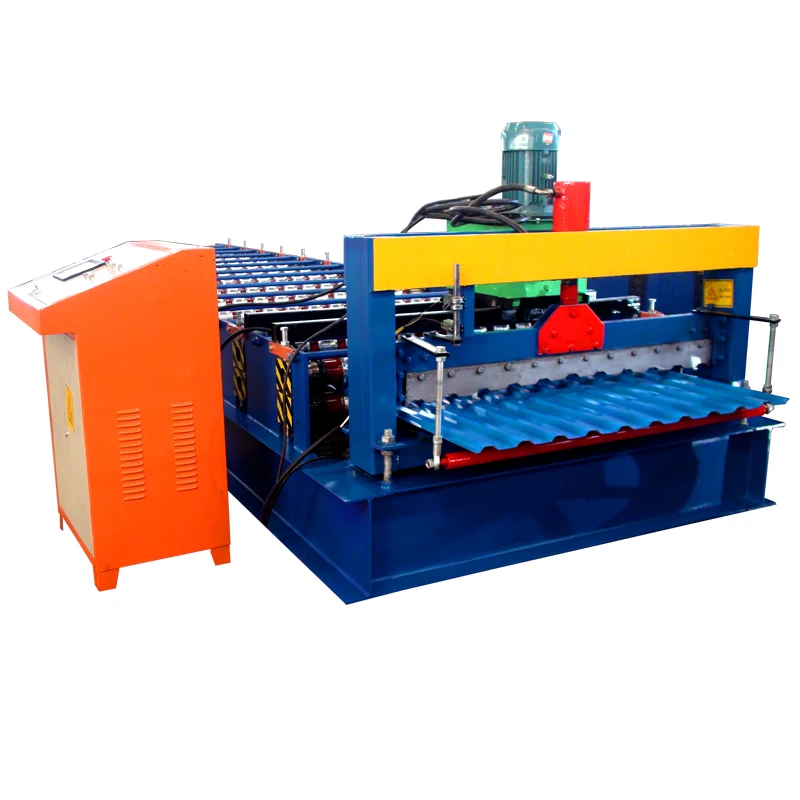

The Iron Roofing Sheet Single Layer Roll Forming Making Machine is designed for efficient production of iron roofing sheets. This advanced machine features a user-friendly NC-PLC colored touch screen control system, enabling precise operation and monitoring. Built with a robust 3.5mm steel main frame, it ensures durability and stability during operation. The machine operates with a main power of 5.5 kW and supports a power supply of 380V, 3-Phase, 50Hz. It boasts a forming speed of 15 meters per minute, allowing for high productivity. The design includes 14 roll stations and accommodates a feeding thickness ranging from 0.3 to 1.0 mm with a feeding width of 1250 mm. Customization options are available to meet specific user requirements, making it an ideal choice for various roofing applications.
#### **Specifications**
| Attribute | Details |
|---|---|
| Control System | NC-PLC Colored Touch Screen |
| Main Frame | 3.5mm Steel |
| Main Power | 5.5 kW |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 15 m/min |
| Roll Station | 14 stands |
| Shaft Diameter | 80 mm |
| Feeding Thickness | 0.3 – 1.0 mm |
| Feeding Width | 1250 mm |
| Side Panel Thickness | 14 mm |
| Cutter Standard | Cr12 |
| Roller Standard | 45# Steel plating Chrome with heat treatment |
| Chain | Double chain 6 cent |
#### **Additional Information**

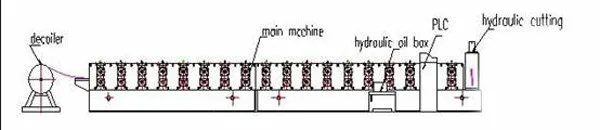

The machine’s processing technique follows a streamlined flow: Decoiler → Roll Forming → PLC System → Hydraulic System → Cutting → Output Table. All technical parameters can be customized based on user requirements. The company also offers design and manufacturing services tailored to specific customer needs.
