J3A
Inquire NowDescription

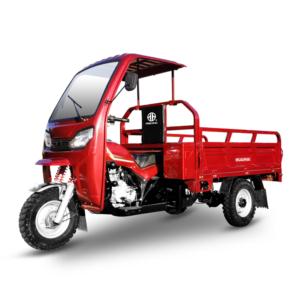

The Huaihai J3A is an innovative half-closed three-wheel tricycle designed for passenger and commercial transport. Powered by a robust Zongshen 200CC water-cooled engine, this rickshaw taxi combines functionality and efficiency. With its double rocker arm motor, the J3A offers a smooth ride, making it ideal for both urban and rural environments. The hybrid LPG and gasoline system ensures long endurance, while the oil brake system enhances safety and reliability.
Designed for versatility, the J3A features a spacious cargo box and an automotive-grade rear suspension system, ensuring comfort for both passengers and cargo alike. Its economical fuel consumption of 3.6 kg per 100 km makes it a cost-effective solution for transportation needs.
Specifications
| Attribute | Details |
|---|---|
| Overall Size | 2760*1320*1790 mm |
| Cargo Box Size | 1295*1300*435 mm |
| Engine Type | Four stroke/water-cooled/Zongshen 200CC |
| Rated Power | 10.5 kW @ 7000 rpm |
| Max. Torque | 14.5 N.m @ 5500 rpm |
| Cylinder Bore*Stroke | φ63.5 mm × 62.5 mm |
| Ignition Mode | DC CDI |
| Compression Ratio | 10:01 |
| Transmission | 5 speed + 1 reverse gear |
| Driving Mode | Shaft transmitted |
| Gear Ratio | 37:13 |
| Front Suspension | φ 45 double rocker arm shock absorber |
| Rear Suspension Type | Trailing arm dependent suspension |
| Rear Shock Absorber | Spring damping shock absorber |
| Min. Turning Radius | 5500 mm |
| Min. Ground Clearance | 150 mm |
| Tyre (F/R) | 4.00-12 |
| Brake Type | Oil brake |
| Brake Mode | Drum / drum |
| Max. Speed | 60 km/h |
| Fuel Tank Capacity | 17 L |
| Gas Tank Capacity | 28 L |
| Mileage Per Charge | 600 km |
| Curb Weight | 470 kg |
| Rated Gross Weight | 750 kg |
| Max. Designed Gross Weight | 750 kg |
| 40HQ Container Packing Qty. | CKD 25 sets |
Features
| 1. LPG & gasoline hybrid for long endurance |
| 2. Comprehensive gas consumption of 3.6 kg/100 km for cost efficiency |
| 3. Oil brake system for enhanced safety |
| 4. Powerful Zongshen 200 water-cooled engine for reliable performance |
| 5. Automotive grade rear suspension for a safer, more comfortable ride |
