JBC INSULATION PIERCING CONNECTOR
Inquire NowDescription
JBC Insulation Piercing Connector is designed for versatile applications in low voltage aerial bundled conductors (LV-ABC). This connector is ideal for service line systems, building electrical systems, and street lighting systems. Its innovative design allows for easy installation by simply tightening the bolts, which forces the teeth to penetrate the insulation of both the main and tap lines simultaneously, eliminating the need for stripping insulation.
Key features include:
- Branch connection compatibility
- Designed for insulated aluminum and copper cables
- Constructed from high-strength, weather-resistant materials
- Specially designed shear head bolt for efficient installation without damaging the conductor
- Moisture and corrosion resistance through elastic seals and silicone grease
- Integrated end cap to prevent loss of parts during installation
- Safe and straightforward installation process
- Tested for dielectric voltage of 6kV for 1 minute underwater
Compliant with standards EN 50483-4, NF C 33-020, and NF C 33-004.

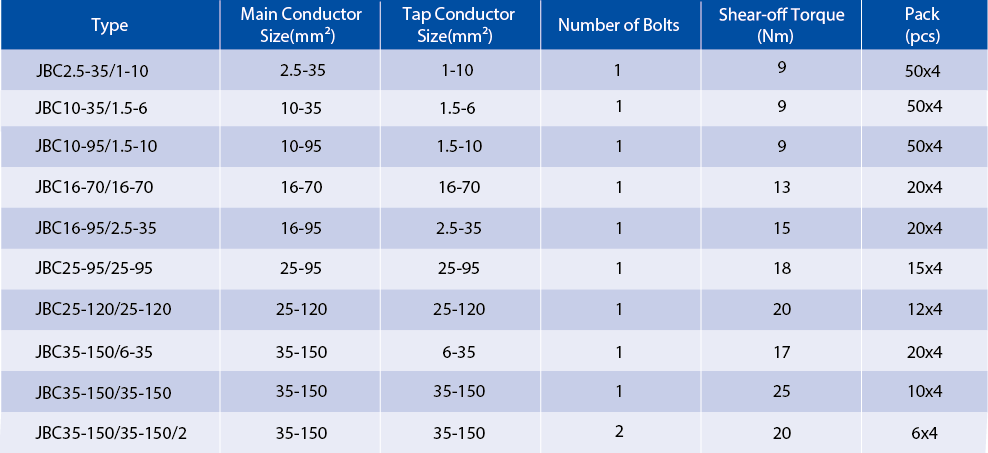

Specifications
| Attribute | Details |
|---|---|
| Application | All types of LV-ABC conductors, service line systems, building electrical systems, street lighting systems |
| Main Line | Insulated aluminum cable |
| Tap Line | Insulated aluminum and copper cables |
| Material | High strength, weather resistant materials |
| Installation Method | Tightening bolts to penetrate insulation |
| Waterproof Testing | Dielectric voltage of 6kV for 1 minute underwater |
| Standards | EN 50483-4, NF C 33-020, NF C 33-004 |
Additional Information
For optimal performance, ensure that the installation is performed in accordance with the manufacturer guidelines and safety standards. Regular inspections are recommended to maintain the integrity and functionality of the connectors.
