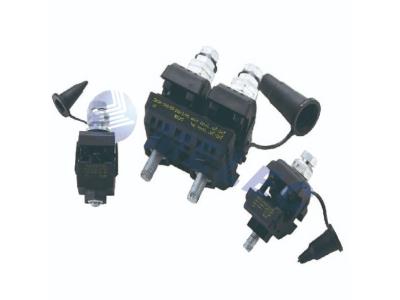

JBC/PG INSULATION PIERCING CONNECTOR
Inquire NowDescription
JBC Insulation Piercing Connector is designed for seamless connections in various low voltage applications, including service line systems, building electrical systems, and street lighting systems. Its innovative design allows for easy installation without stripping the insulation from both the main and tap lines. By simply tightening the bolts, the connector’s teeth penetrate the insulation, ensuring a secure and reliable connection.
This connector is suitable for all types of LV-ABC conductors and is crafted from high-strength, weather-resistant materials, making it durable against environmental factors. The specially designed shear head bolt facilitates efficient installation under controlled shear-off torque, ensuring optimal piercing pressure for excellent electrical connection while preserving the mechanical integrity of the conductor.

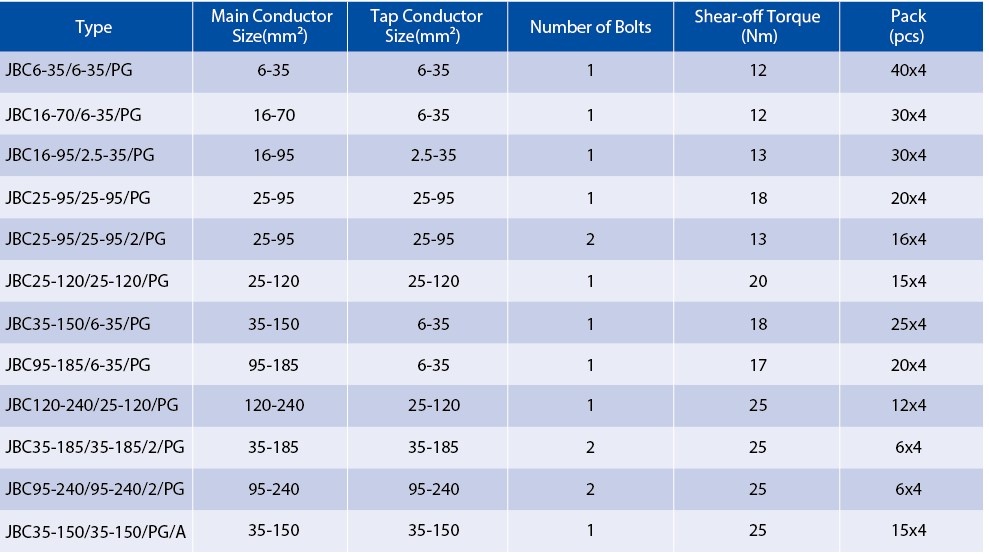

Specifications
| Feature | Details |
|---|---|
| Application | Used for parallel grooved and branch connections |
| Main Line | Insulated aluminium wire |
| Tap Line | Insulated aluminium and copper wire |
| Material | High strength, weather-resistant materials |
| Moisture Protection | Elastic seal and silicone grease for waterproof and corrosion resistance |
| Installation Safety | End cap attached to prevent loose parts |
| Voltage Test | Tested at 6kV for 1 minute under water |
| Standards | EN 50483-4, NF C 33-020, NF C 33-004 |
Additional Information
Easy and safe installation ensures that users can confidently handle the connector without the risk of damaging the conductor or compromising the electrical connection. This product is ideal for professionals seeking reliability and efficiency in their electrical installations.
