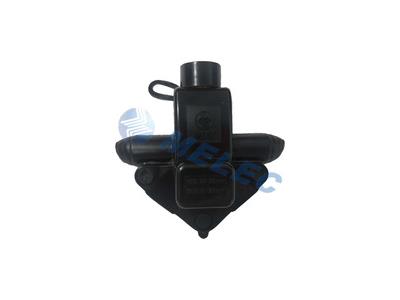

JBD INSULATION PIERCING CONNECTOR
Inquire NowDescription
The JBD Insulation Piercing Connector is a high-performance solution designed for efficient branch connections in low voltage aerial cables. This innovative connector allows for seamless integration of insulated aluminum cables as the main line and bare aluminum or copper cables as the tap line. Constructed from a high-strength aluminum alloy, it guarantees durability and stable performance in various conditions.
Its specially designed shear head bolt enables efficient installation with controlled shear-off torque, ensuring that the contact teeth penetrate the conductor effectively while preserving its mechanical integrity. Additionally, the insulation sheath provides superior waterproof capabilities, making it ideal for outdoor applications.

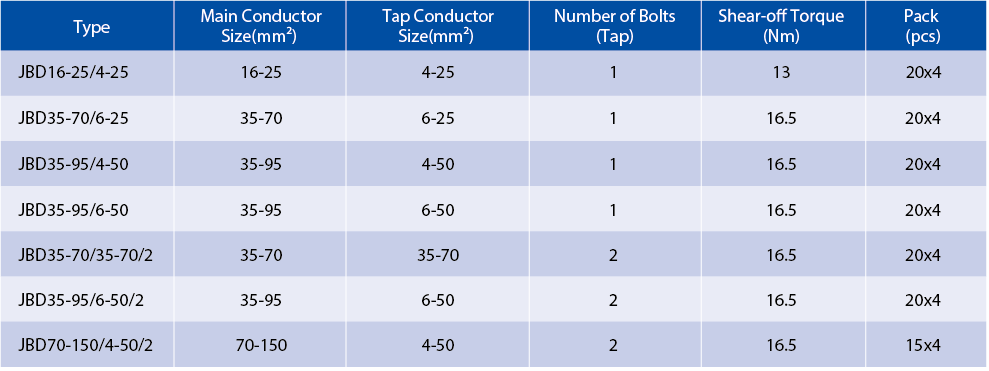

Specifications
| Attribute | Details |
|---|---|
| Main Line | Insulated Aluminium Cable |
| Tap Line | Bare Aluminum or Bare Copper Cable |
| Material | High Strength Aluminium Alloy |
| Performance | High Mechanical Strength, Stable Performance |
| Waterproofing | Insulation Sheath |
| Standards | EN 50483-4, NF C 33-020, NF C 33-004 |
Additional Information
- Used for establishing T-connections and joint-connections.
- Main line connection established by insulation piercing without stripping insulation.
- Tap line connection requires stripping insulation before inserting into the bore.
