Description

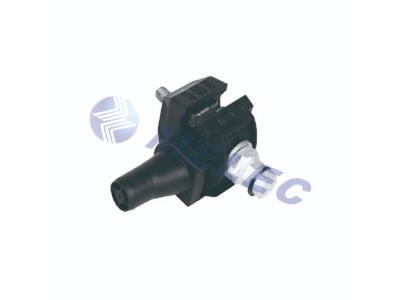

JBT insulation piercing connectors are specially designed for low voltage aerial cables, providing a reliable solution for establishing connections between bare cable and insulated aluminium or copper cables. The installation process is streamlined, allowing for easy connection by simply tightening the bolts while the main line and tap line are simultaneously connected, eliminating the need for insulation stripping on the tap line. This innovative design ensures efficiency and safety during usage.

Features:

• Used for branch connection
• Main line: bare aluminum cable
• Tap line: insulated aluminium cable and insulated copper cable
• Body molded from high strength, weather-resistant materials
• Specially designed shear head bolt for efficient installation under controlled shear-off torque
• Elastic seal and silicone grease for excellent waterproof and corrosion-resistant performance
• End cap attached to the body to prevent loss of parts during installation
• Easy and safe installation process
• Tested for watertightness

Standard compliance includes EN 50483-4, NF C 33-020, NF C 33-004.

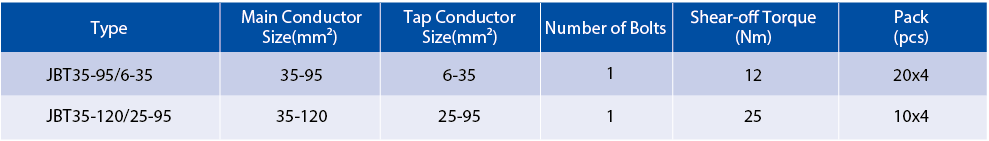

Specifications

Additional Information

JBT insulation piercing connectors are tested for watertightness, ensuring a durable and reliable connection in various environmental conditions.

Images
