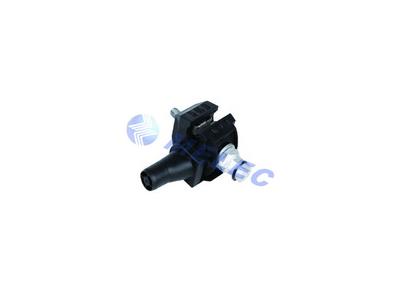

JBT INSULATION PIERCING CONNECTOR
Inquire NowDescription
The JBT Insulation Piercing Connector is designed for reliable and efficient connections in low voltage aerial cables. Ideal for establishing connections between bare aluminum cables and insulated aluminum or copper cables, this connector simplifies the installation process by allowing simultaneous connection of the main and tap lines without the need for stripping insulation. Its robust construction and innovative design ensure optimal performance and durability.

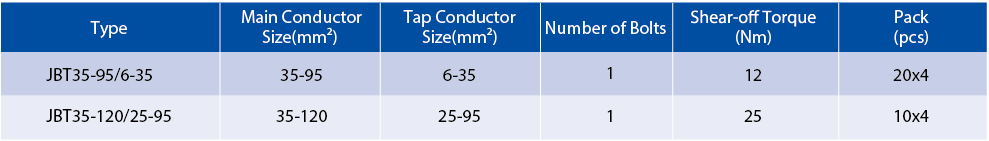

Specifications
Feature | Description |
---|---|
Application | Connections for low voltage aerial cables |
Main Line | Bare aluminum cable |
Tap Line | Insulated aluminum and copper cables |
Material | High strength, weather-resistant materials |
Installation | Easy and safe; tightened bolts for connection |
Features | Shear head bolt for controlled torque, elastic seal, silicone grease for moisture protection |
Standards | EN 50483-4, NF C 33-020, NF C 33-004 |
Additional Information
The JBT Insulation Piercing Connector is designed with an attached end cap to prevent any loose parts from falling during installation, ensuring a secure and efficient setup. Each connector is rigorously tested for watertightness, providing excellent waterproof and corrosion-resistant performance for long-lasting reliability.
