Description

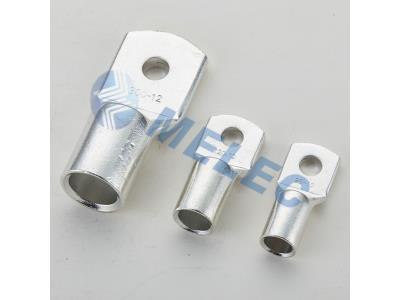

The JGC Cable Lug, designed to meet Australian standards, is essential for connecting copper cables to the copper ends of electrical equipment in medium voltage applications. Crafted from high-purity copper (Cu ≥ 99.9%), this cable lug ensures reliable conductivity and durability. Its surface is tin plated to enhance resistance against corrosion, ensuring longevity and performance even in challenging environments.
One of the standout features of this cable lug is the arc-shaped viewing window on the bevel, which allows for easy checking of conductor placement, simplifying installation and maintenance procedures. The product adheres to rigorous industry standards, including AS/NZS 4325.1:1995 and IEC 61238-1:2003, ensuring high quality and reliability.

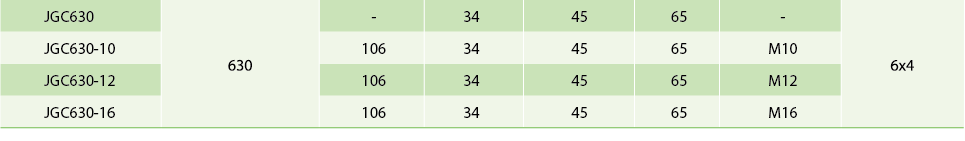

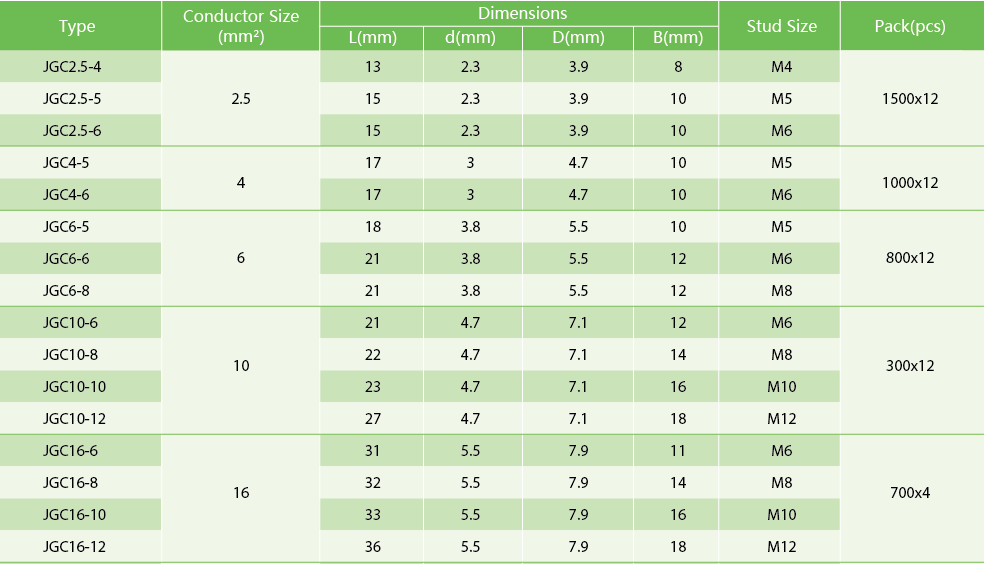

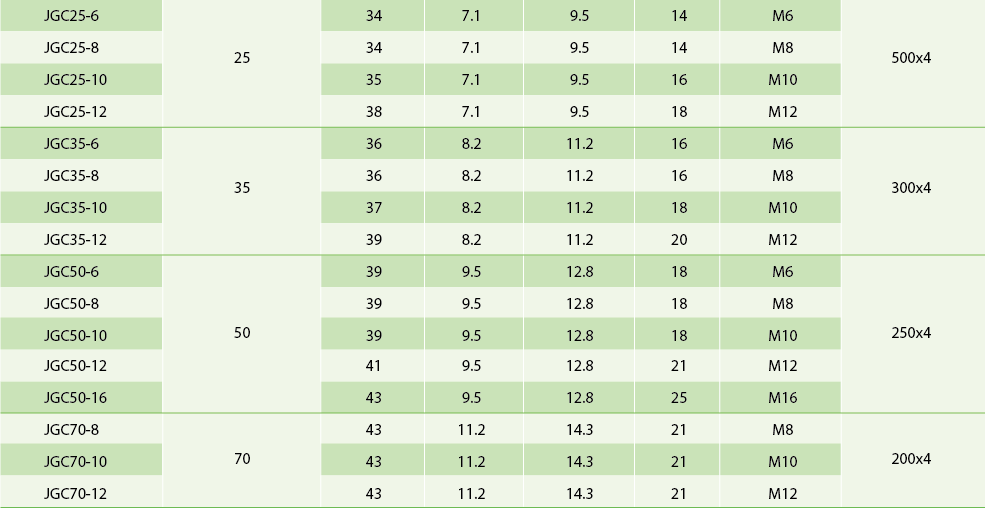

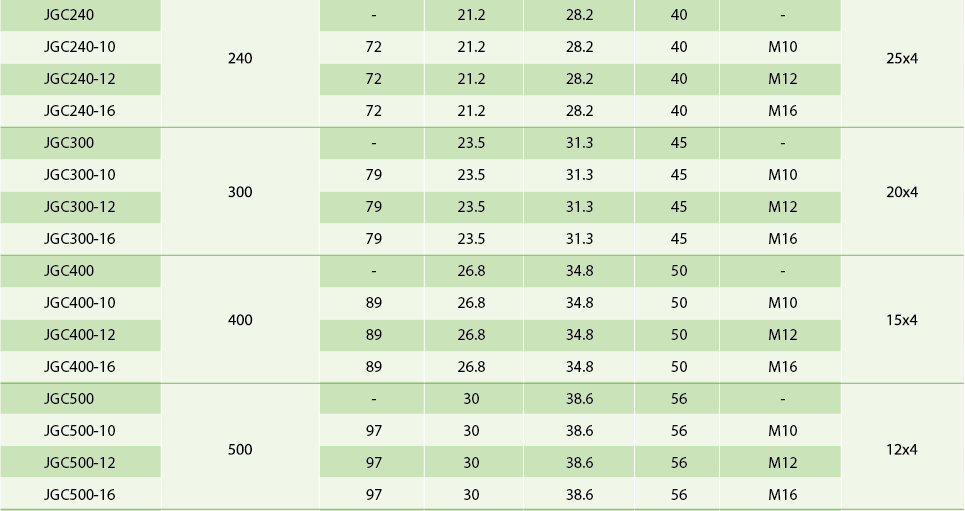

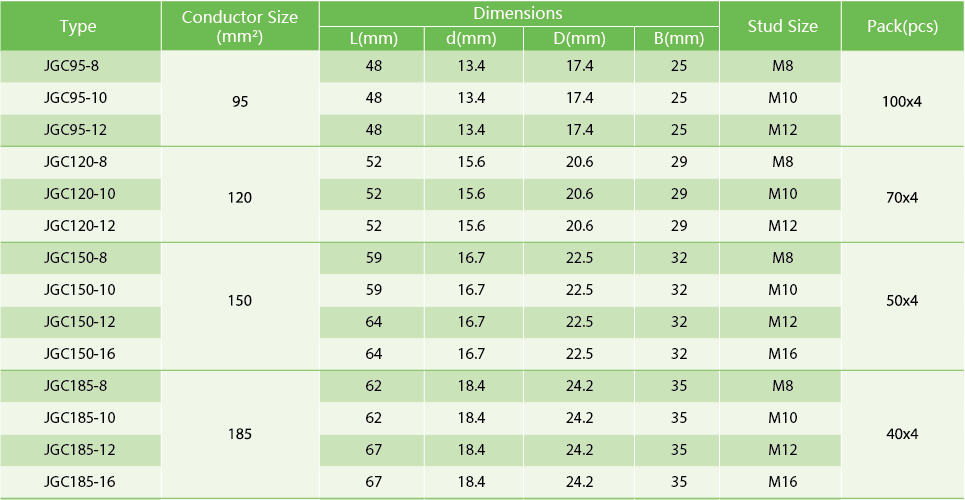

Specifications
| Attribute | Details |
|---|---|
| Material | Cu ≥ 99.9% |
| Surface Finish | Tin Plated |
| Standards | AS/NZS 4325.1:1995, IEC 61238-1:2003 |
Additional Information
For optimal performance, ensure proper installation techniques are followed when connecting the cable lug to the copper cables. Regular checks should be performed to maintain connectivity and prevent corrosion.
