Join-Hidden Panel Roll Forming Machine
Inquire NowDescription
The Automatic Roof Panel Roll Forming Machine for Join-Hidden 470 is a cutting-edge solution designed for efficient roof panel production. This machine combines advanced technology with user-friendly features, including a manual decoiler, a robust main roll forming machine, a precise post-cut system, a powerful hydraulic system, and a sophisticated PLC control unit. It is capable of producing high-quality roof panels at a speed of 8 to 12 meters per minute, making it ideal for large-scale construction projects.
Constructed from durable materials, this machine is designed for longevity and precision. Its 17-row roller stand ensures stability during operation, while the PLC control system allows for seamless adjustments and monitoring. With a production capacity tailored to meet the demands of modern construction, this machine stands out in the market.
Specifications
| Attribute | Details |
|---|---|
| Suitable Steel Plate | Color Steel Plate |
| Production Speed | 8-12 m/min |

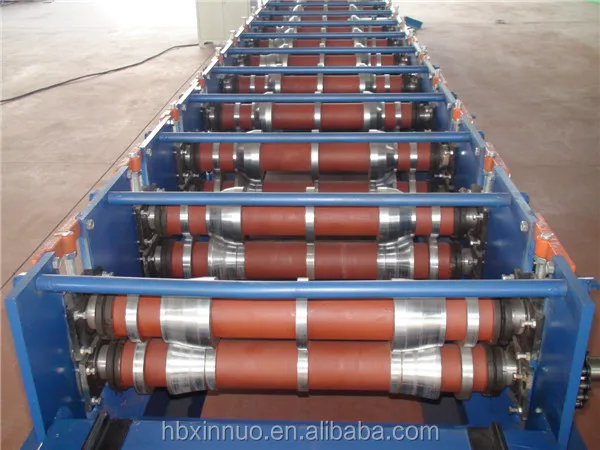

| Roller Stand | 17 rows |
| Voltage | 380V/50Hz/3 phases |
| Main Power | 3 kW |
| Hydraulic Pump Power | 3 kW |
| Side Panel Thickness | 14 mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12 with quenched treatment 60-62℃ |
| Control System | PLC control (Mitsubishi/Delta/Others) |
| Main Frame | 350H Steel |

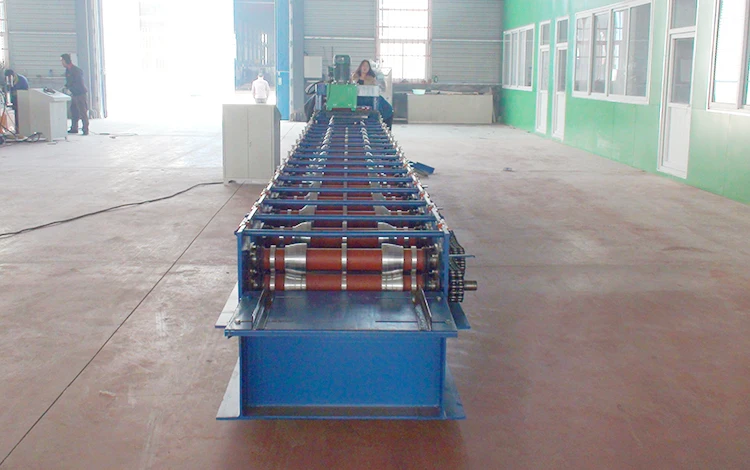

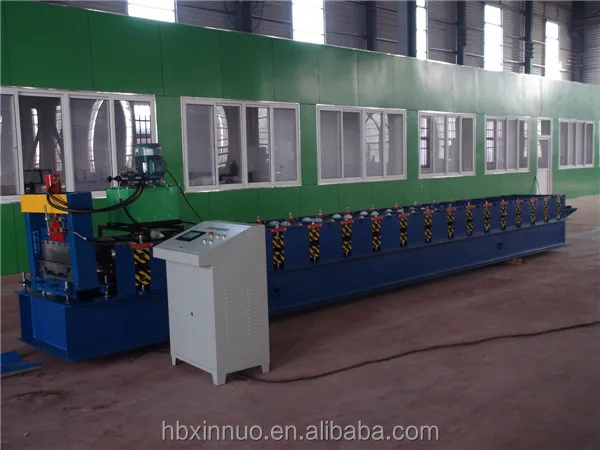

Product Pictures
