Join-Hidden Panel Roll Forming Machine

Inquire Now

Description

The Automatic Roof Panel Roll Forming Machine for Join-Hidden 470 is a sophisticated piece of equipment designed for the efficient production of roofing panels. This machine is equipped with advanced features such as a manual decoiler, main roll forming machine, post-cutting system, hydraulic system, PLC control, and stacking capabilities. With its high production speed of 8-12m/min and robust construction, it is ideal for manufacturers looking to streamline their operations and enhance productivity.

Specifications

Specification Details
Suitable Steel Plate Color Steel Plate
Production Speed 8-12 m/min
Roller Stand 17 rows
Voltage 380V/50Hz/3 phases
Main Power 3 kW
Hydraulic Pump Power 3 kW
Side Panel Thickness 14 mm
Roller Material Carbon Steel 45#
Blade Material Cr12 with quenched treatment (60-62℃)
Control System PLC Control (Mitsubishi/Delta/Others)
Main Frame 350H Steel

Product Pictures

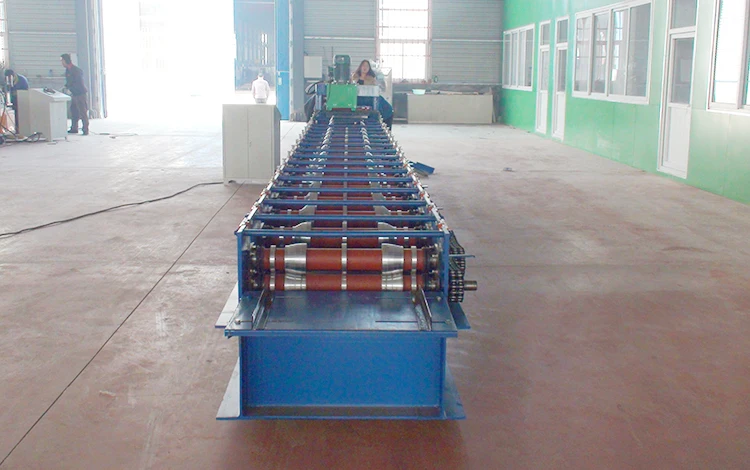

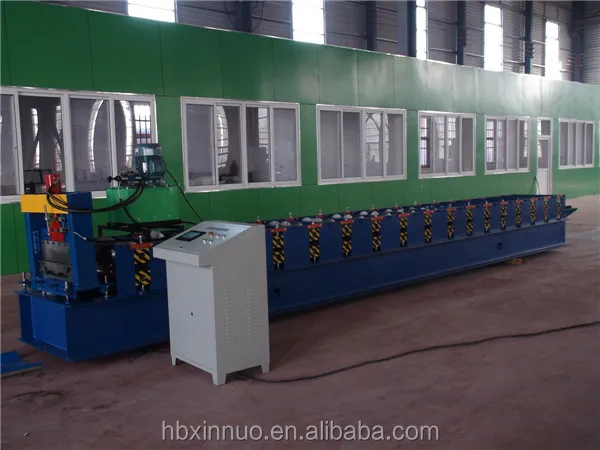

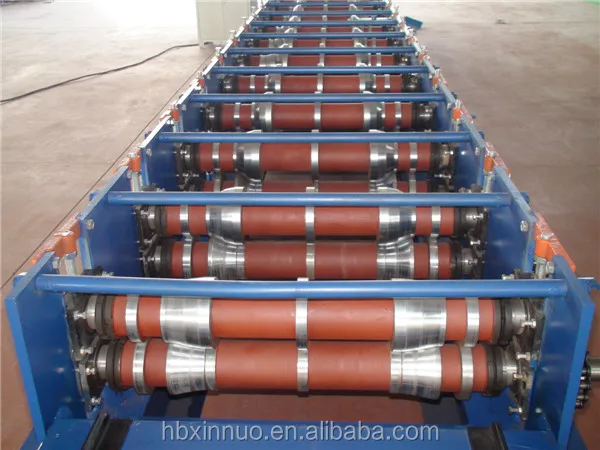

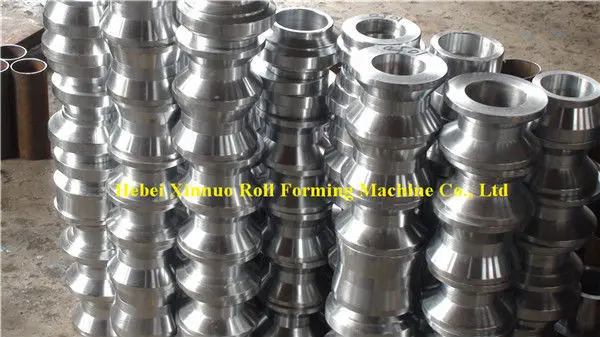

Automatic Roof Panel Roll Forming Machine For Join-Hidden 470

Automatic Roof Panel Roll Forming Machine For Join-Hidden 470

Automatic Roof Panel Roll Forming Machine For Join-Hidden 470

Automatic Roof Panel Roll Forming Machine For Join-Hidden 470

Automatic Roof Panel Roll Forming Machine For Join-Hidden 470
