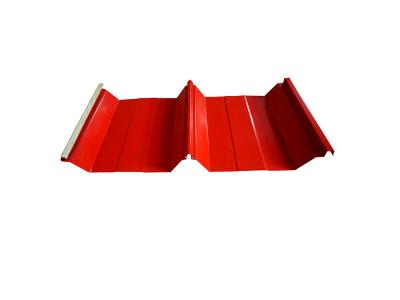

join-hidden steel metal roof machine Joint-hidden type big span Steel Roof panel construct

Inquire Now

Description

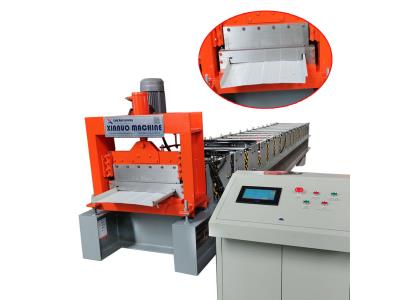

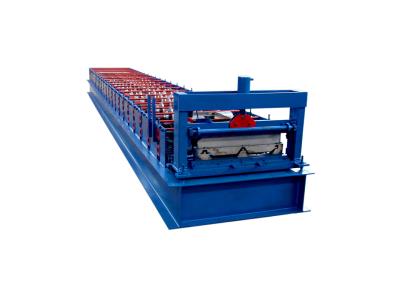

The Automatic Roof Panel Roll Forming Machine for Join-Hidden 470 is a state-of-the-art solution designed for constructing big-span steel roof panels. This innovative machine enables efficient and precise manufacturing of join-hidden steel roof panels, perfect for a variety of construction applications. With its advanced technology, it ensures high-quality production while maintaining a user-friendly interface.

Included in the system are essential components such as a manual decoiler, main roll forming machine, post-cut system, hydraulic system, PLC control, and stacking mechanism. This comprehensive setup is engineered for optimal performance and durability, making it a valuable asset for any construction business.

Specifications

Feature Details
Suitable Steel Plate Color Steel Plate
Production Speed 8-12 m/min
Roller Stand 17 rows
Voltage 380V/50Hz/3 phases
Main Power 3 kW
Hydraulic Pump Power 3 kW
Side Panel Thickness 14 mm

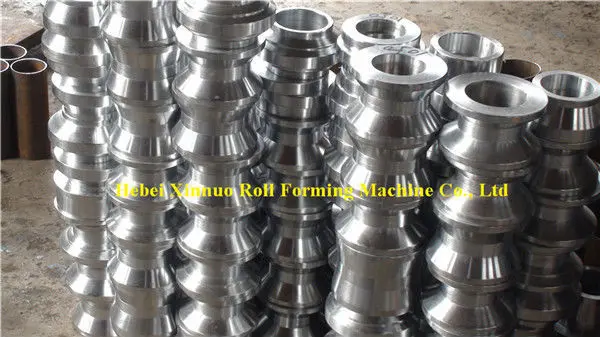

Roller Material Carbon Steel 45#
Blade Material Cr12 with quenching treatment (60-62℃)
Control System PLC Control (Mitsubishi/Delta/Others)
Main Frame 350H Steel

Additional Information

This machine is designed for versatility and can be utilized for various types of roof panel production, including but not limited to:

  • Roof Panel Forming Machine
  • Double Layer Forming Machine
  • Glazed Tile Forming Machine
  • C&Z Purlin Forming Machine
  • Stone Coated Roof Tile Machine
  • Highway Guardrail Machine
  • Shutter Door and Door Frame Machine
  • Bending, Shearing, and Slitting Machine
  • Floor Decking Forming Machine
  • Sandwich Panel Production Line

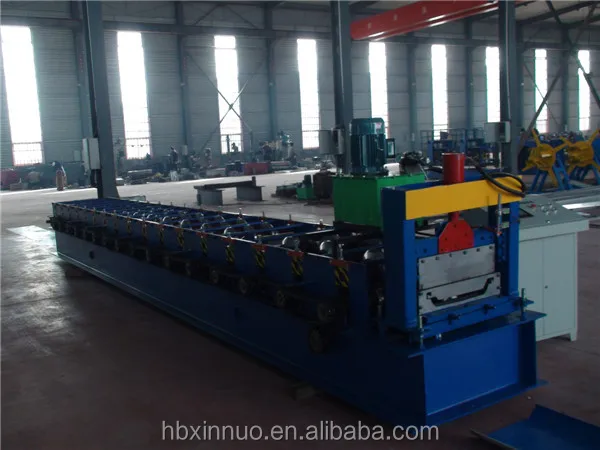

Product Pictures
