join-hidden steel metal roof machine Joint-hidden type big span Steel Roof panel construct
Inquire NowDescription
The Join-Hidden Steel Metal Roof Machine is designed for the efficient construction of big span steel roof panels. This automatic roof panel roll forming machine is ideal for join-hidden types, combining advanced technology with rugged durability. Its innovative design ensures precision in forming and cutting, making it perfect for high-demand production environments. The machine includes essential components such as a manual decoiler, main roll forming machine, post-cut system, hydraulic system, PLC control, and stacking features, providing a comprehensive solution for roof panel manufacturing.
Specifications
| Parameter | Details |
|---|---|
| Suitable Steel Plate | Color Steel Plate |
| Production Speed | 8-12 m/min |
| Roller Stand | 17 rows |
| Voltage | 380V/50Hz/3 phases |
| Main Power | 3 kW |
| Hydraulic Pump Power | 3 kW |
| Side Panel of Machine | 14 mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12 with quenched treatment 60-62℃ |
| Control System | PLC control (Mitsubishi/Delta/Others) |
| Main Frame | 350H steel |
Additional Information
Units included with the machine are as follows:
- Manual decoiler

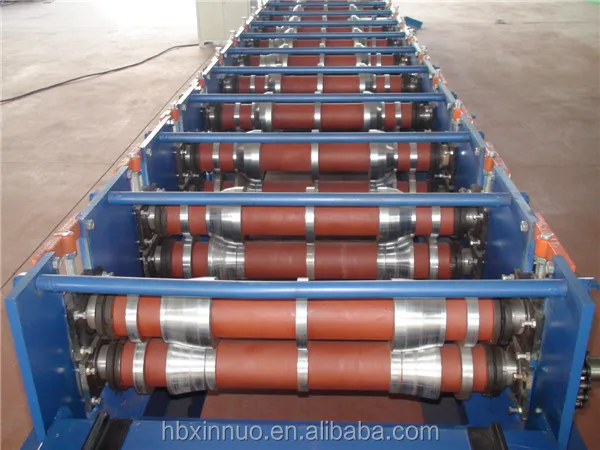

- Main machine for roll forming
- Post cut system
- Hydraulic system

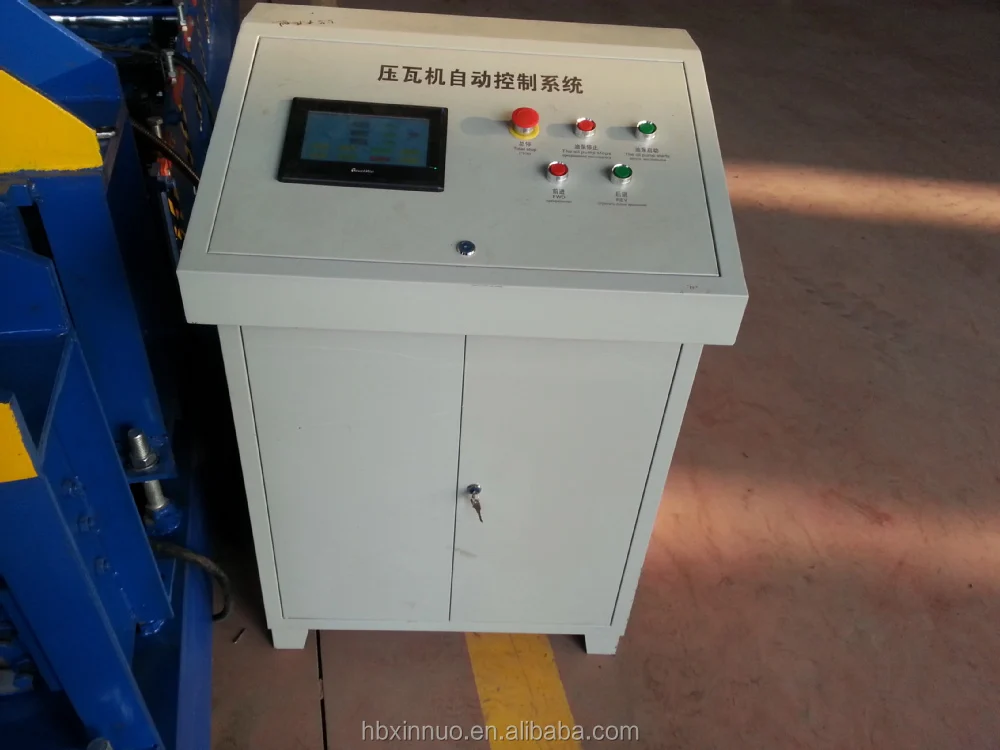

- PLC control
- Stacking system
